Waterproof 3" Stroke 12V Micro Linear Actuator Mini Small Reverse Switch Electric Motion Actuators for Robot Window Opener

FOB Reference Price: Get Latest Price

≥2 Pieces

US $89

≥200 Pieces

US $39

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: ewelift

Model Number:: NKLA21

Torque:: customize

Dynamic Load Push(N):: 100N

Dynamic Load Pull(N):: 50N

Static Load(N):: 50N

Input(VDC):: 12V

Speed at Full Load(mm/s):: 7mm/s

Stroke Length(mm):: 25-200mm/s

Duty Cycle:: 30%, max 5min. continuous use

IP Grade:: IP54

Operating Temperature:: +5℃~+40℃

Limit Switch:: No

Quick Details

Speed(RPM):: customize

Continuous Current(A):: customize

Efficiency:: IE 2

Place of Origin:: Zhejiang, China

Brand Name:: ewelift

Model Number:: NKLA21

Torque:: customize

Dynamic Load Push(N):: 100N

Dynamic Load Pull(N):: 50N

Static Load(N):: 50N

Input(VDC):: 12V

Speed at Full Load(mm/s):: 7mm/s

Stroke Length(mm):: 25-200mm/s

Duty Cycle:: 30%, max 5min. continuous use

IP Grade:: IP54

Operating Temperature:: +5℃~+40℃

Limit Switch:: No

Product Description

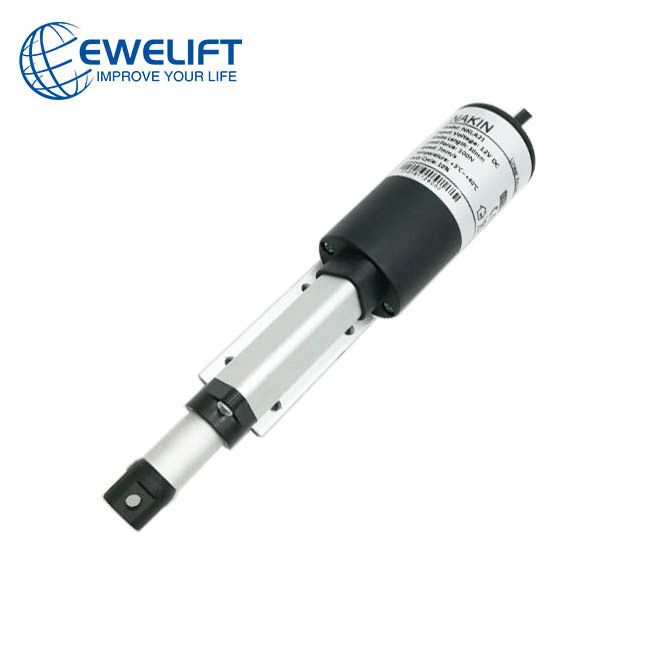

EWELIFT NKLA21 Linear actuator

NKLA21 mini linear actuator has Wide range of applications. Can be used in many fields such as home furnishing, medical care, industry, office, etc, and supports customization.

Specification:Stroke length = 4 inches (100mm);Travel Speed: 1.97in/sec(50mm/sec); Retracted length = 155mm(6.1"); Extended Length= 255mm(10.03");Maximum Load = 4.5lbs(20N);Inner Tube: Stainless Steel Tube;Input Voltage: 12VDC;Temperature: 0-50 degrees Celsius. Advantage:Our Linear Actuator with Linear Reciprocating Motor and Durable Stroke Ideal for Intelligent Range Hood, Fan Blades, Cabinets, Window Opener, Robotics, Home Automation Feel Stop: Stop at Any Position,With Automatic Machine Lock, It will Automatically Stop When It Reaches the Top. Safe and Worry-Free: Overcurrent Protection, Short Circuit Protection, Overload Protection, Overvoltage Protection. 1 Year product warranty,any problems about the product please feel free to contact us.

Feature

EWELIFT NKLA21

Features
1. 12V safety voltage
2. Thrust up to 100 N in push and up to 50 N in pull
3. Color: black
4. Standard protection class: IP54
5. Aluminium-Alloy outer tube and inner tube, beautiful and corrosion resistant
6. The average noise level is lower than 50dB(ambient noise is less than 60dB).
7. Built-in electronic limit switches
8. High-strength front and back fixtures

Product Name	EWELIFT NKLA21 Linear actuator
Dynamic Load Push（N）	100N
Dynamic Load Pull（N）	50N
Static Load（N）	50N
Input(VDC)	12V
Speed at Full Load(mm/s)	7mm/s
Stroke Length(mm)	25~200
Duty Cycle	30%, max 5min. continuous use
IP Grade	IP54
Operating Temperature	+5℃~+40℃
Limit Switch	No
Standard	CE
