Quick Details
-
Brand Name:
-
SANYU
-
Model Number:
-
SVC-15KVA
-
name:
-
automatic voltage regulator voltage stabilizer for water pump
-
Input voltage:
-
304V-456V
-
Color:
-
White
-
Display:
-
Meter Display
-
Type:
-
Servo motor
-
Protection:
-
Over load. over voltage
-
Efficiency:
-
85%
Quick Details
-
Phase:
-
Single Phase
-
Current Type:
-
AC
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SANYU
-
Model Number:
-
SVC-15KVA
-
name:
-
automatic voltage regulator voltage stabilizer for water pump
-
Input voltage:
-
304V-456V
-
Color:
-
White
-
Display:
-
Meter Display
-
Type:
-
Servo motor
-
Protection:
-
Over load. over voltage
-
Efficiency:
-
85%

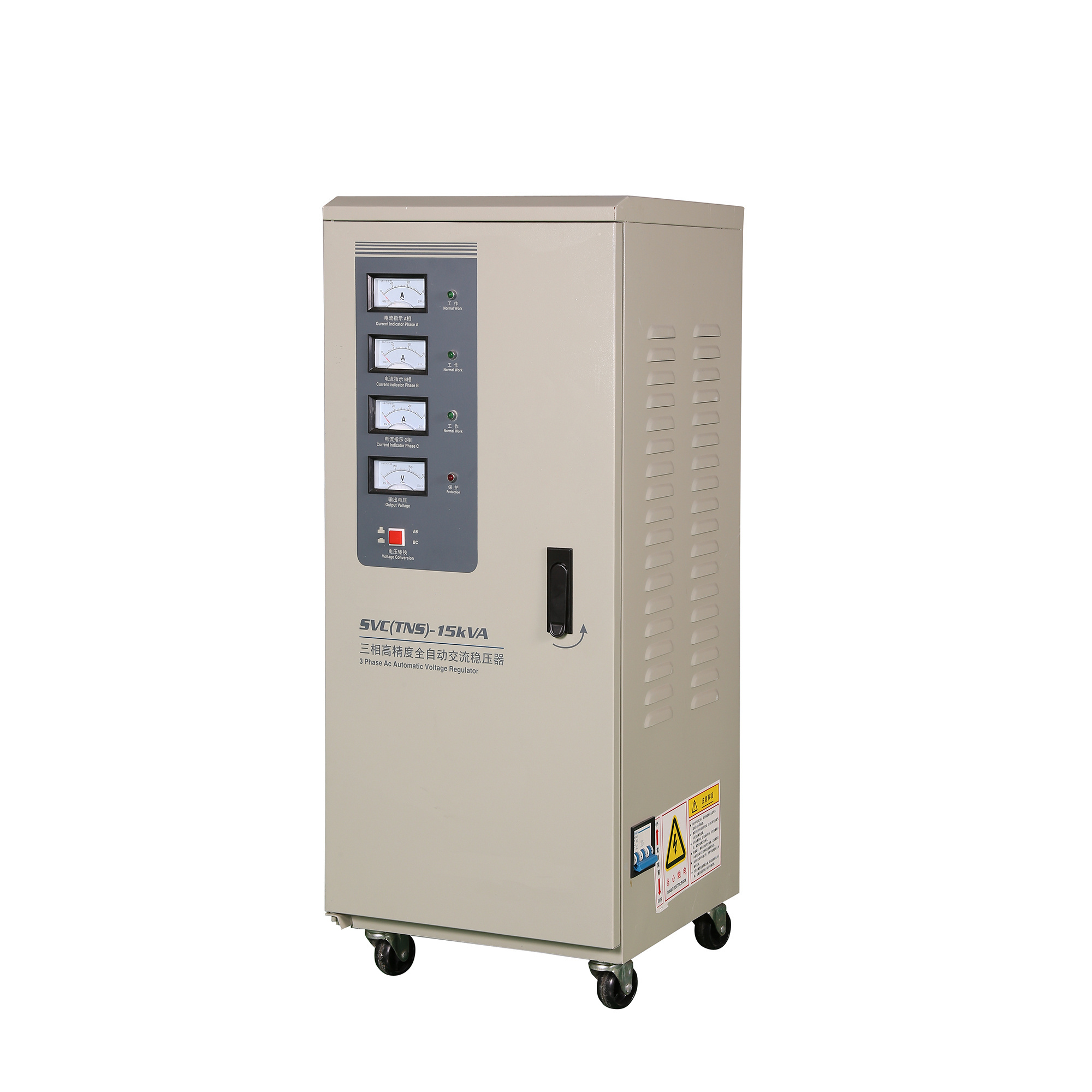

SANYU 15KVA single phase three phase SVC main automatic voltage stabilizer, regulator
SVC(TND) single-phase high accuracy full-automatic AC voltage stabilizer is one kind of our dominant products, made up of contact auto voltage regulator, servo motor, automatic control circuit, etc. When the power network voltage fluctuates or the load varies, automatic sampling control circuit will send signal to drive the servo motor which can adjust the position of carbon brush of auto voltage regulator, then, the output voltage will be adjusted to rated value and get a steady start.
Voltage regulators or stabilizers are used to compensate for voltage fluctuations in mains power. Large regulators may be permanently installed on distribution lines. Small portable regulators may be plugged in between sensitive equipment and a wall outlet. Automatic voltage regulators are used on generator sets on ships, in emergency power supplies, on oil rigs, etc. to stabilize fluctuations in power demand. For example, when a large machine is turned on, the demand for power is suddenly a lot higher. The voltage regulator compensates for the change in load. Commercial voltage regulators normally operate on a range of voltages, for example 150–240 V or 90–280 V. Servo stabilizers are also manufactured and used widely in spite of the fact that they are obsolete and use out-dated technology.
This product has such advantages as big capacity, low loss, high efficiency, wide voltage stabilizing range, high precision, powerful protection and reliable operation. Also it’s provided with protections from open phase, output overvoltage, under-voltage and over current.
|
Product Model |
SVC(TND) |
SVC(TNS) |
|
|
Rated Power KVA |
0.5~30 |
6~90 |
|
|
Output Voltag e |
Voltage stabilizing precision V |
220±3% |
380±3% |
|
Under voltage protection V |
184±4 |
340±7 |
|
|
Over voltage protection V |
246 ±4 |
425±7 |
|
|
Input Voltage V |
176~264 |
304~456 |
|
|
Voltage regulating speed S |
<1(In case of 10% change of input voltage) |
||
|
Temperature rise K |
<75 |
||
|
Frequency Hz |
50/60 |
||
|
Insulation resistance MΩ |
≥5 |
||
|
Withstanding voltage V/1min |
2000 |
||
|
Efficiency |
>98% |
||
