Quick Details
-
Return Force (kN):
-
20 kN
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Woda
-
Year:
-
New
-
Voltage:
-
220V,380V,440V, Customized as required
-
Dimension(L*W*H):
-
1500X1000x3600
-
Weight (T):
-
10 T
-
Model Number:
-
YQ32
-
Motor Power (kw):
-
11 kw
-
Marketing Type:
-
New products
-
Brand name:
-
WODA
-

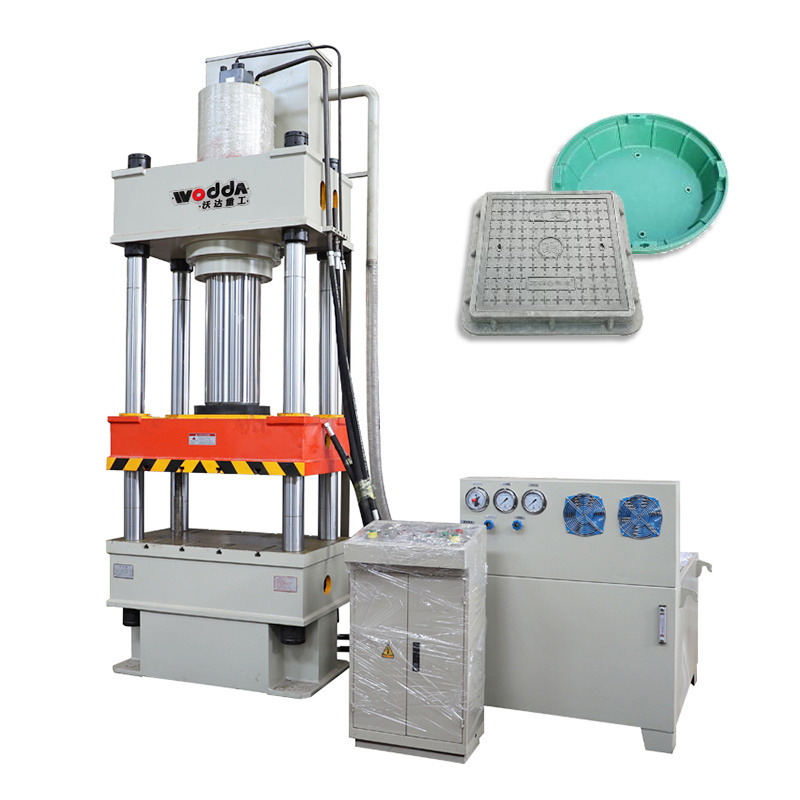

Product name:
-
Manhole cover hydraulic press
-
CNC or Not:
-
Normal
-
Core Component:
-
Motor
-
After-sales Service:
-
Online support
-
Application:
-
Manhole cover hydraulic press
-
Advantage:
-
Fast Speed
-
Certification:
-
Provide
Quick Details
-
Machine Type:
-
Four-column Three-beam Hydraulic Press
-
Slide Stroke (mm):
-
500
-
Ejector Force (kN):
-
500
-
Return Force (kN):
-
20 kN
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Woda
-
Year:
-
New
-
Voltage:
-
220V,380V,440V, Customized as required
-
Dimension(L*W*H):
-
1500X1000x3600
-
Weight (T):
-
10 T
-
Model Number:
-
YQ32
-
Motor Power (kw):
-
11 kw
-
Marketing Type:
-
New products
-
Brand name:
-
WODA
-
Product name:
-
Manhole cover hydraulic press
-
CNC or Not:
-
Normal
-
Core Component:
-
Motor
-
After-sales Service:
-
Online support
-
Application:
-
Manhole cover hydraulic press
-
Advantage:
-
Fast Speed
-
Certification:
-
Provide
Product Description
SMC molding press machine bmc press machine
:
Characteristics:
SMC molding press machine bmc press machine
specially made large countertops according to customer needs,different tonnage.
Hydraulic control adopts to insert set valve integrated system, decrease let out Point , Movement reliability, durable and long life span ,It is constant pressure to realize with calm in the first place and calm procedure two develop technology, have to insure press the function of delay time , The route of working pressure may be regulated in assigned scope ,adopt buttons for centralized control,Can realization manual,Semi-automatic,automatic 3 operate form
.
Specification
SMC molding press machine bmc press machine
:
|
Specification
|
|
Unit
|
315T
|
400T
|
|
|
Nominal force
|
|
KN
|
3150
|
4000
|
|
|
Ejecting force
|
|
KN
|
63
|
63
|
|
|
Stroke of silder
|
|
mm
|
800
|
800
|
|
|
Max opening height
|
|
mm
|
1250
|
1250
|
|
|
Working table size
|
|
mm*mm
|
1260*1200
|
1260*1200
|
|
|
Ejecting stroke
|
|
mm
|
250
|
250
|
|
|
Speed of slider
|
Descend speed
|
mm/s
|
100
|
100
|
|
|
Oil pump displacement
|
Working speed
|
mm/s
|
6-15
|
6-15
|
|
|
Ejection force
|
Return speed
|
mm/s
|
80
|
80
|
|
|
Motor power
|
|
KW
|
22
|
22
|
|
|
Weight
|
|
T
|
11
|
12
|
|
Detailed Images
Shot blasting combines three new processes of high pressure vacuuming dough clearance.After the equipment is commissioned,the fuel tank is opened again,and the hydraulic oil flows into the main tank through the high pressure,and the components of each part are cleaned twice.
The cartridge valve is integrated into the system to reduce leakage points,reliable operation and long service life,The two way cartridge valve controls the flow and pressure of the hydraulic oil,and the pressure is stable.
03.HIGH PRESSURE PIPELINE
The use of seamless steel pipe effectively solves the traditional hydraulic oil pipe easy to age,poor pressure resistance.
04.
HYDRAULIC PRESS PISTON ROD
Medium-frequency hardening of 45 steel, deepening the material 2-3 mm, making the surface hardness of the piston rod to
55,effective solution to seal ring injury,not easy to scratch.
55,effective solution to seal ring injury,not easy to scratch.
