Quick Details
-
Dimension(L*W*H):
-
2000mm*900mm*1400mm
-
Weight:
-
520 KG
-
Marketing Type:
-
Hot Product 2022
-
Core Components:
-
Main machine
-
Mobility:
-
Move by pickup, truck, tractor
-
Application:
-
Water well, coring, geotechnical survey, etc.
-
Drill rod length:
-
4.2m
-
Drilling bit:
-
Alloy bit, diamond bit, tricone bit , etc.
-
Mud pump:
-
BW-100
-
Rotating speed:
-
142, 285, 570r/min
-
Color:
-
Blue, yellow, red, green for options
-
Diameter of drill rods:
-
50mm, 60mm
-
Name:
-
Soil Core Sample Drilling Rig Machine Equipment l Exploration
-
Certification:
-
CE, ISO
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
LEAGOO
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2000mm*900mm*1400mm
-
Weight:
-
520 KG
-
Marketing Type:
-
Hot Product 2022
-
Core Components:
-
Main machine
-
Mobility:
-
Move by pickup, truck, tractor
-
Application:
-
Water well, coring, geotechnical survey, etc.
-
Drill rod length:
-
4.2m
-
Drilling bit:
-
Alloy bit, diamond bit, tricone bit , etc.
-
Mud pump:
-
BW-100
-
Rotating speed:
-
142, 285, 570r/min
-
Color:
-
Blue, yellow, red, green for options
-
Diameter of drill rods:
-
50mm, 60mm
-
Name:
-
Soil Core Sample Drilling Rig Machine Equipment l Exploration
-
Certification:
-
CE, ISO
Soil Core Sample Drilling Rig Machine Equipment for Geological Exploration
1. It is a high-speed drilling rig, suitable for geotechnical exploration, water well, soil sample projects.
2. Alloy bit, diamond bit and tricone bit can be selected for drilling according to the different bottom layers.
3. Diesel engine as power, no need to use electricity, convenient for outdoor drilling.
4. BW-100 mud pump, with large water flushing rate, supply powerfully energy for working.
5. Drilling tower integrated on rig, save labor.
6. Crawler mounted, convenient for short distance moving.

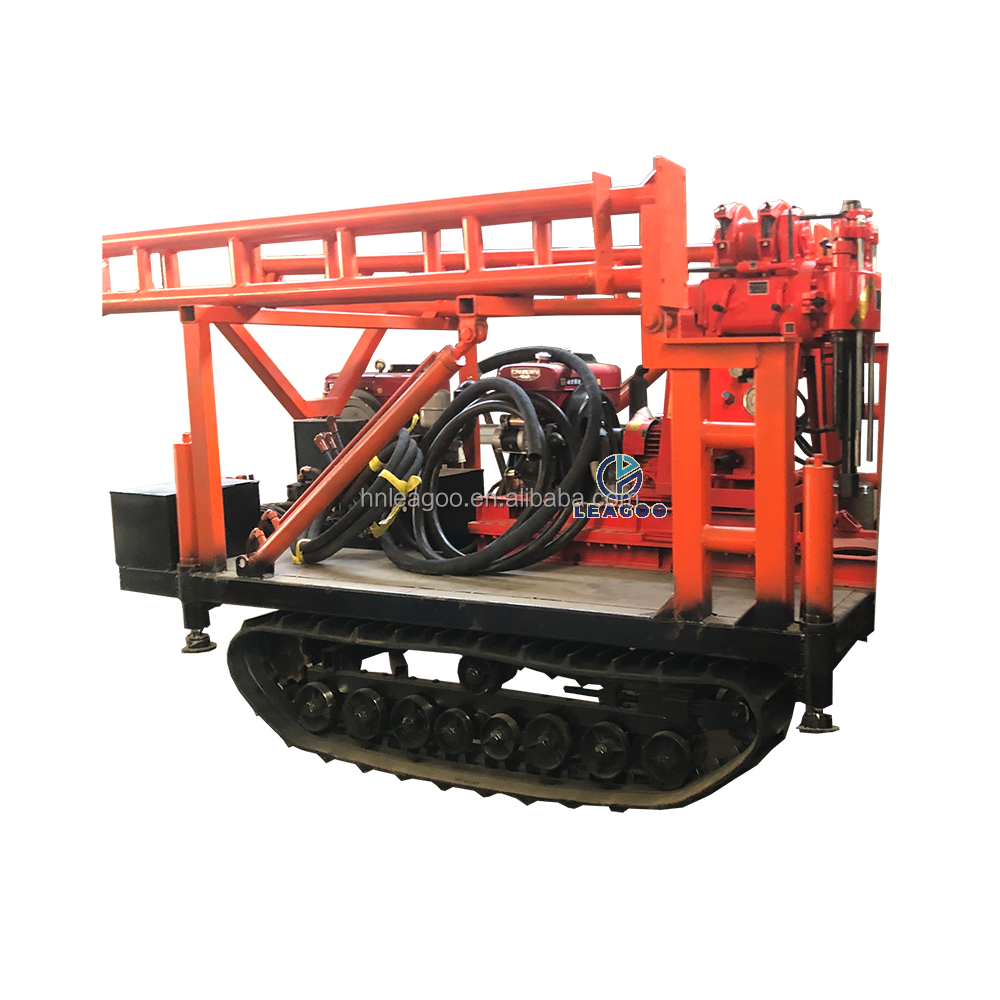

Track Soil Core Sample Drilling Rig Machine Equipment for Geological Exploration
|
1. Main machine parameter |
|
|
Drilling depth |
100m |
|
Maximum open hole caliber |
300mm |
|
End hole caliber |
75mm |
|
Diameter of drill rod |
50mm |
|
Drilling angle |
90~75 |
|
Weight(not include power) |
520kg |
|
Dimension |
2000 mm *900 mm *1400mm |
|
2. Vertical shaft |
|
|
Rotating speed |
142, 285, 570r/min |
|
Feeding stroke |
450mm |
|
3. Winch |
|
|
Max. single line winch capacity |
1600Kg |
|
Diameter of wire rope |
11mm |
|
Volume of winding drum |
27m |
|
Hug floodgate caliber |
230mm |
|
Hug floodgate belt width |
50mm |
|
4. Mud pump |
|
|
Type |
Horizontal single urn twin-action |
|
Rate of flow |
95/77L/min |
|
MAX. pressure |
1.2MPa |
|
Working pressure |
0.7MPa |
|
Diameter of water inlet tube |
42mm |
|
Diameter of water outlet tube |
32mm |
|
5. Power |
|
|
Diesel engine |
18HP, 2000r/min |
|
Electrical motor |
11KW, 1460r/min |
