Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Shengya
-
Voltage:
-
380V,50HZ,3PHASE
-
Dimension(L*W*H):
-
1500X1500X1300mm
-
Weight (KG):
-
900 kg
-
After-sales Service Provided:
-
Overseas service center available
-
Pallet size:
-
850x550x25mm
-
Block type:
-
Standard block,solid block, hollow block, perforated blocks,curb
-
Vibration force:
-
45KN
-
Raw material:
-
Cement/Sand/Flyash/crushed stone and so on
-
Keywords:
-
QMJ4-40 small concrete block machine cameroon
-
Certification:
-
ISO,CE,BV
-
Worker:
-
2-3 Worker
-
Color:
-
Customer's Demand
-
Power:
-
8.8kw
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine
-
Brick Raw Material:
-
CONCRETE
-
Production Capacity (Pieces/8 hours):
-
2000-2500pcs/day
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Shengya
-
Voltage:
-
380V,50HZ,3PHASE
-
Dimension(L*W*H):
-
1500X1500X1300mm
-
Weight (KG):
-
900 kg
-
After-sales Service Provided:
-
Overseas service center available
-
Pallet size:
-
850x550x25mm
-
Block type:
-
Standard block,solid block, hollow block, perforated blocks,curb
-
Vibration force:
-
45KN
-
Raw material:
-
Cement/Sand/Flyash/crushed stone and so on
-
Keywords:
-
QMJ4-40 small concrete block machine cameroon
-
Certification:
-
ISO,CE,BV
-
Worker:
-
2-3 Worker
-
Color:
-
Customer's Demand
-
Power:
-
8.8kw
QMJ4-40 block machine is a new kind of block making machine,which is simple and easy to operate.It applicate all kinds of industrial waste to produce various of size and models of blocks by changing the pallet ,which are widely used in hydraulic construction,road square garden construction, the small block machine has become more and more popular in the construction industry with its good performance and high efficiency,high capacity,high density,no need pallet and short curing period.
Specification of QMJ4-40 block making machine price used concrete block making machine sand lime brick making machine
| model | QMJ4-40 |
| power | 7.8kw |
| weight | 0.8t |
| Forming cycle | 45s |
| Size of pallet | 850*550*25mm |
| Exciting rate | 2880hz |
| Forming pressure | 130t |
| Exciting force | 42kn |
| Overall size | 1500*1460*1260mm |
Capacity of QMJ4-40 block making machine price used concrete block making machine sand lime brick making machine
| Block size | Pcs/mold | Cycle time | Shift output(8hours) | |||
| 390*190*190(mm) | 5 pcs | 45s | 3000-3200pcs | |||
| 390*240*190(mm) | 4 pcs | 45s | 2000-3000pcs | |||
| 240*115*90(mm) | 12pcs | 45s | 7000-7600pcs | |||
| 240*115*53(mm) | 24pcs | 45s | 14000-15300pcs | |||
Advantage of QMJ4-40 block making machine price used concrete block making machine sand lime brick making machine
1. The small block machine is easy to operate and maintenance,with light weight ,small size and simple structure;
2. Low cost,small investment ,for wide raw material;
3. Quickly return the strength of the brick is much higher than the clay sintered block;
4.It is convenient to replace the mould , small block machine can realize muti-usage ,reduce the cost of investment;
5. Using waste to recycle raw material,save resources,to achieve the effect of environmental protection;

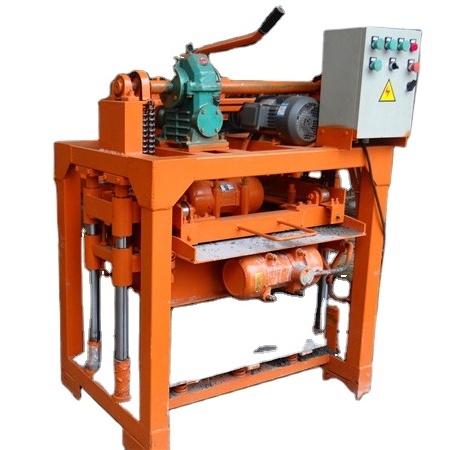

Photos Show of QMJ4-40 block making machine price used concrete block making machine sand lime brick making machine
Packing: Nude or Iron Box or As Required
Delivery Time: 10 days after receipt of deposit.
Shipping Port: Qingdao, China
