Quick Details
-
Port Size:
-
2'', 2.5'', 3'', 4'', 5'', 6''
-
Orifice Size:
-
50mm, 65mm, 80mm, 100mm, 125mm, 150mm
-
Pipe Connection:
-
Female Thread (Standard), Flange (Optional)
-
Body Material:
-
Plastic (Nylon)
-
Diaphragm Material:
-
NBR (Standard), EPDM (Optional)
-
Pressure Range:
-
1 to 10 bar
-
Standard Coil Voltage:
-
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
-
Latching Coil Voltage:
-
DC9-20V, Pulse Width (20-500mSec)
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
GG50, GG65, GG80, GG100, GG125, GG150
-
Port Size:
-
2'', 2.5'', 3'', 4'', 5'', 6''
-
Orifice Size:
-
50mm, 65mm, 80mm, 100mm, 125mm, 150mm
-
Pipe Connection:
-
Female Thread (Standard), Flange (Optional)
-
Body Material:
-
Plastic (Nylon)
-
Diaphragm Material:
-
NBR (Standard), EPDM (Optional)
-
Pressure Range:
-
1 to 10 bar
-
Standard Coil Voltage:
-
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
-
Latching Coil Voltage:
-
DC9-20V, Pulse Width (20-500mSec)
Products Description

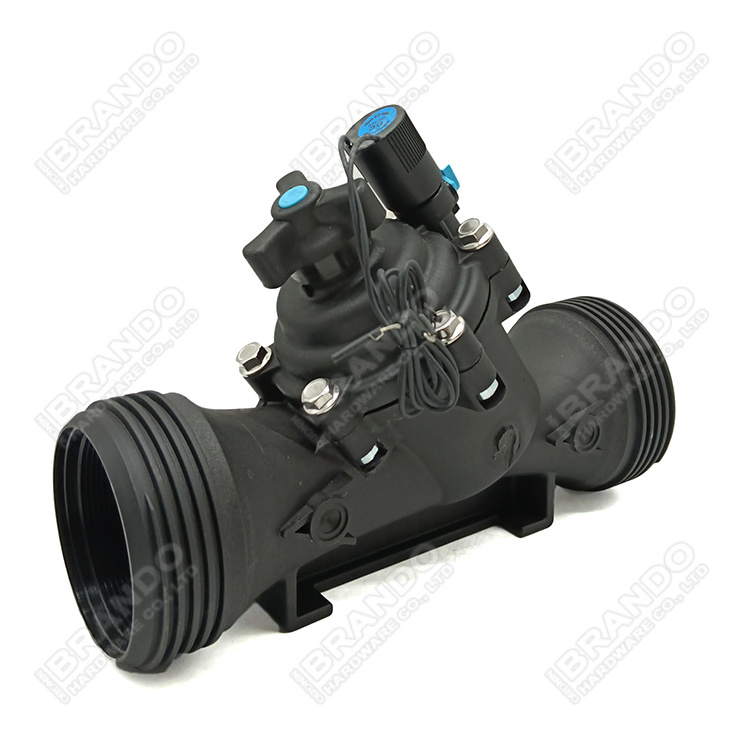

A water irrigation solenoid valve is an electrically controlled valve to regulate the flow of water. By applying a voltage over the coil, the valve opens and the liquid can flow through. Solenoid valves are also called electromagnetic valve, water valve, electric valve or electro valve. They have a robust construction and are optionally equipped with manual flow control, so the desired flow can be adjusted. Most models have an override function, the valve can be opened manually if needed. Furthermore, they are equipped with a dirt particle filter. BRANDO irrigation solenoid valves are available with a wide selection of control voltages: 12VDC, 24VDC, 24VAC, 110VAC, 120VAC, 220VAC and 230VAC. The solenoid valves are compatible with almost all automatic irrigation controllers, as long as the control voltage matches.
Technical Data
|
Model
|
GG50
|
GG65
|
GG80
|
GG100
|
GG125
|
GG150
|
|||||
|
Orifice Size
|
50
|
65
|
80
|
100
|
125
|
150
|
|||||
|
Port Size
|
2''
|
2 1/2''
|
3''
|
4''
|
5''
|
6''
|
|||||
|
Max. Flow Range
|
60m³/h
|
65m³/h
|
70m³/h
|
120m³/h
|
125m³/h
|
210m³/h
|
|||||
|
Pipe Connection
|
Female Thread (Standard), Flange (Optional)
|
|
|
|
|
|
|||||
|
Working Pressure Range
|
1 to 10 bar
|
|
|
|
|
|
|||||
|
Coil Voltage
|
Standard Coil: 220VAC, 110VAC, 24VAC (50/60Hz), 24VDC, 12VDC, 9VDC (Optional)
Latching Coil: DC9-20V, Pulse Width (20 to 500mSec)
|
|
|
|
|
|
|||||
|
Body Material
|
Plastic (Nylon)
|
|
|
|
|
|
|||||
|
Diaphragm Material
|
NBR (Standard), EPDM (Optional)
|
|
|
|
|
|
|||||
|
Operation
|
Diaphragm Pilot Operated
|
|
|
|
|
|
|||||
|
Manual Flow Regulator
|
With
|
|
|
|
Without
|
|
|||||
|
Length
|
232mm
|
250mm
|
299mm
|
355mm
|
360mm
|
485mm
|
|||||
|
With
|
135mm
|
136mm
|
137mm
|
220mm
|
233mm
|
247mm
|
|||||
|
Height
|
215mm
|
222mm
|
230mm
|
322mm
|
330mm
|
365mm
|
|||||
