Quick Details
-
Market Segement:
-
Mining transportation
-
Engine Capacity:
-
< 4L
-
Gross Vehicle Weight:
-
4760
-
Drive Wheel:
-
4x4
-
After-sales Service Provided:
-
Onsite Installation, Video technical support
-
Brand Name:
-
ORIEMAC
-
Place of Origin:
-
Shandong, China
-
Engine Brand:
-
1
-
Cylinders:
-
1
-
Gear Box Brand:
-
1
-
Dimensions (L x W x H) (mm):
-
5250x2250x2700mm
-
Cargo Tank Dimension:
-
1
-
Payload:
-
10000kg
-
Operating weight:
-
4800kg
-
Hopper capacity:
-
4.0cbm
-
Max turn radius:
-
4m
-
Max speed:
-
25km/h
-
Max gradeability:
-
25 degree
-
Ground clearance:
-
248mm
-
Engine:
-
92kW
Quick Details
-
Condition:
-
New
-
Horsepower:
-
115HP
-
Emission Standard:
-
Euro 1
-
Market Segement:
-
Mining transportation
-
Engine Capacity:
-
< 4L
-
Gross Vehicle Weight:
-
4760
-
Drive Wheel:
-
4x4
-
After-sales Service Provided:
-
Onsite Installation, Video technical support
-
Brand Name:
-
ORIEMAC
-
Place of Origin:
-
Shandong, China
-
Engine Brand:
-
1
-
Cylinders:
-
1
-
Gear Box Brand:
-
1
-
Dimensions (L x W x H) (mm):
-
5250x2250x2700mm
-
Cargo Tank Dimension:
-
1
-
Payload:
-
10000kg
-
Operating weight:
-
4800kg
-
Hopper capacity:
-
4.0cbm
-
Max turn radius:
-
4m
-
Max speed:
-
25km/h
-
Max gradeability:
-
25 degree
-
Ground clearance:
-
248mm
-
Engine:
-
92kW

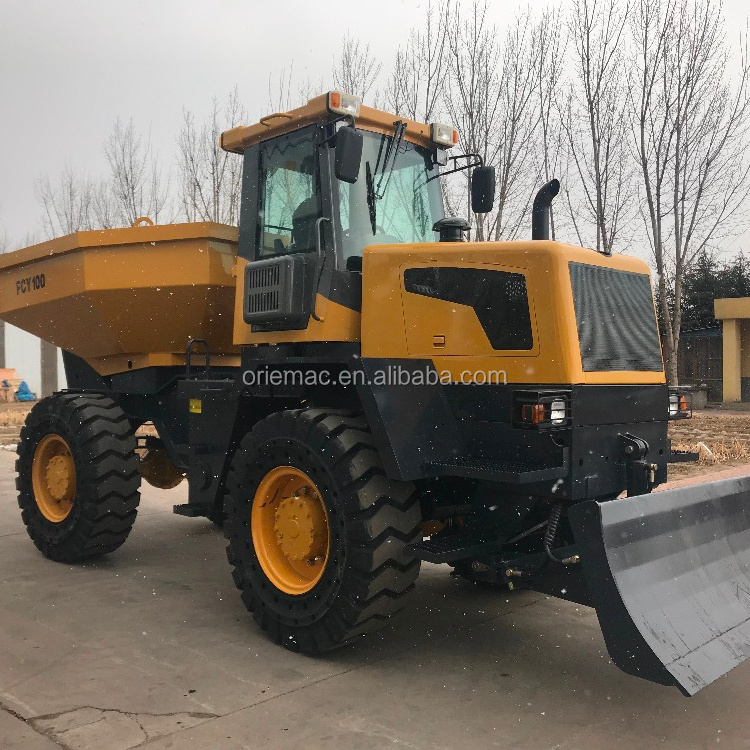

FCY100 Stone 10 ton articulated off road dump trucks
Contact me: +8218221045926 Betty Ding
Main Descriptions for Site Dumpers Series
1. Wildly used in short-distance transport of bulk material, such as the construction industry, the building site, battlefield, protecting road section, the municipal engineering, underground mines and so on.
2. 4 *4 Drive, Hydraulic steering, can unload materials smoothly by strong hydraulic pressure unloading system.
3. Low walking speed, short-distance transport of bulk materials.
4. Easy operation, small turning radius can be used in a narrow site.
5. With self lading bucket can realize the multifunction tools.
6. Engine as optional makes the performance more reliable
7. Off road wider tyres as optional can work in muddy and bumpy roads.
8. Bucket 180°rotating as optional can realize side dumping and dumping in each direction, which can get higher working efficiency.
| Payload | 10000kg |
| Operating weight | 4800 kg |
| Hopper capacity | 4.0m3 |
| Maximum speed | 25 km/h |
| Handbrake available on grade | 18 degree |
| Max grade ability | 25 degree |
| Distance of road after brake | ≤2.5m with load and speed 10km/h |
| Minimum turn radius | 4 m |
| Ground clearance | 248 mm |
| Noise level | ≤102 db(A) |
| Loading discharge angle | 48.4 |
| Time of discharge | 6s |
| Hydraulic pressure | 16 Mpa |
| Wheel base | 2200 mm |
| Wheel tread | 1580 mm |
| Engine power | 92KW |
| Dimensions (LxWxH) | 5250x2250x2700 mm |
