Quick Details
-
Insulation Material:
-
Enameled
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JAYUAN
-
Model Number:
-
JAYUANECCA
-
Color:
-
optional
-

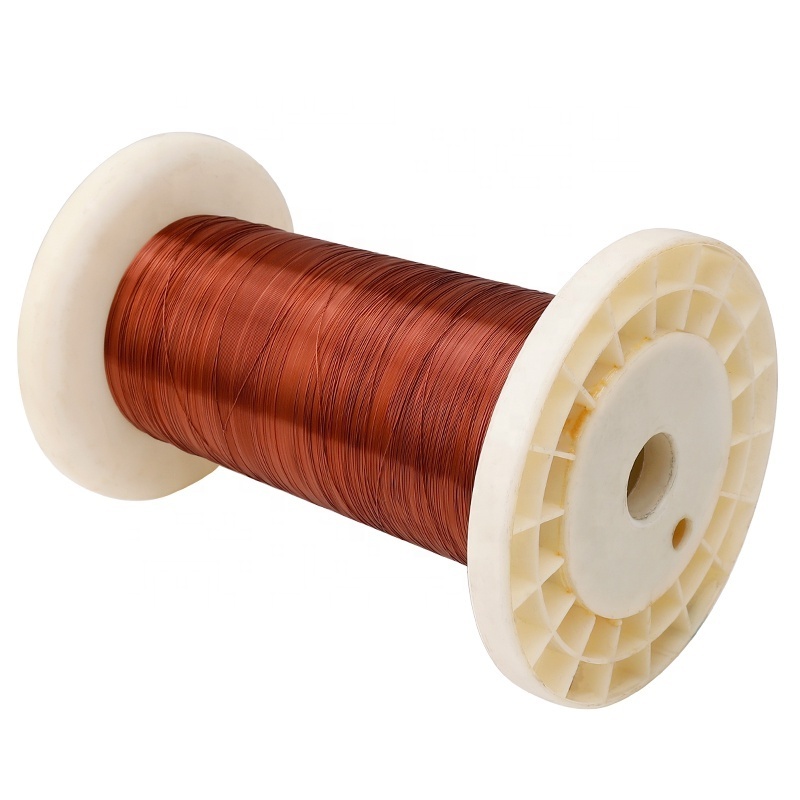

Product name:
-
ECCA Wire
-
Conductor:
-
CCA Wire
-
Material:
-
copper and aluminum
-
Size:
-
0.15-4.60 mm
Quick Details
-
Application:
-
coils, windings
-
Conductor Material:
-
Copper Clad Aluminum
-
Conductor Type:
-
Solid
-
Insulation Material:
-
Enameled
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JAYUAN
-
Model Number:
-
JAYUANECCA
-
Color:
-
optional
-
Product name:
-
ECCA Wire
-
Conductor:
-
CCA Wire
-
Material:
-
copper and aluminum
-
Size:
-
0.15-4.60 mm
Products Description
|
TYPES OF ENAMELED WIRE
|
|
|
|
TYPES
|
FEATURES
|
|
|
Enameled Copper Wire
(ECW) |
1. Wide Usage
2. Easy to Welding 3. Excellent Performance |
|
|
Enameled Aluminum Wire
(EAW) |
Compare to ECW:
1. Save 60% Unit Weight 2. Save 80% Cost |
|
|
Enameled
Copper Clad Aluminum Wire (ECCA) |
Compare to ECW:
1. Save 40% Unit Weight 2. Save 60% Cost 3. Same Solderbility & Stability |
|
|
Alcohol Self-Bonding Enameled
Copper Clad Aluminum Wire (ASECCA) |
1. Small Volume
2. Simple Craft 3. Timesaving 4. Energy Conservation 5. Environmental |
|
|
Hot Melting Self-Bonding Enameled
Copper Clad Aluminum Wire (HMECCA) |
|
|
|
CODE
|
COATING
|
CORE FEATURE
|
THERMAL CLASS(℃)
|
INSULATION
THICKNESS |
STANDARD
|
|
PEW
(QZ) |
Polyester
|
Solvent Resistance
|
130/155
|
1 THIN
2 THICK 3 THICKER |
IEC 60317,
GB/T: 23312-2009, NEMA MW, JIS |
|
UEW
(QA) |
polyurethane
|
Directly Solderable
|
155
|
|
|
|
EIW
(QZY) |
Polyester imide
|
Excellent
Chemical Resistance |
180
|
|
|
|
EI/AIW
(QZY/XY) |
Polyamide
& Polyimide |
More Comprehensive Performance
|
200
|
|
|
|
AIW
(QXY) |
Polyimide
|
Highest Heat Class
|
220
|
|
|
|
ENAMELED COPPER WIRE ROLL DATA
|
|
|
|
|||
|
ROLL
|
SIZE RANGE
|
NET WEIGHT
|
PACKING
|
|||
|
DIN250
|
0.20~3.20 mm
AWG 32~8 SWG 35.5~10 |
18~22 kg/Roll
|
1 Roll/Carton
|
|||
|
PT25
|
0.55~3.20 mm
AWG 23.5~8 SWG 24~10 |
25~32 kg/Roll
|
1 Roll/Carton
|
|||
|
PT20
|
0.55~0.30 mm
AWG 23.5~28.5 SWG 24~30.5 |
28~32 kg/Roll
|
1 Roll/Carton
|
|||
|
PT15
|
0.20~0.55 mm
AWG 32~23.5 SWG 35.5~24 |
18~22 kg/Roll
|
2 Roll/Carton
|
|||
|
PT10
|
0.20~0.55 mm
AWG 32~23.5 SWG 35.5~24 |
10~12 kg/Roll
|
2 Roll/Carton
|
|||
|
PT4
|
0.10~0.30 mm
AWG 38~28.5 SWG 42~30.5 |
5~6 kg/Roll
|
4 Roll/Carton
|
|||
