Quick Details
-
Brand Name:
-
XT
-
Marketing Type:
-
Hot Product 2023
-
Dimension(L*W*H):
-
6058*2438*2591
-
Capacity:
-
21m3
-
Weight:
-
8900
-
Inner Material:
-
Stainless steel
-
Outer Material:
-
Carbon steel
-
Design Pressure(MPa):
-
2.2
-
Design Standard:
-
ISO1496 ,IMDG ,ADR , RID , ASME, US-DOT
-
Working Temperature(℃):
-
-196 - -40 ℃
-
Applicable Industries:
-
Automotive and Transportation Equipment, Metal Production, Welding and Metal Fabrication, Chemicals, Electronics
Quick Details
-
Volume (m³):
-
21m3
-
Max Working Pressure(MPa):
-
2.40Mpa
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
XT
-
Marketing Type:
-
Hot Product 2023
-
Dimension(L*W*H):
-
6058*2438*2591
-
Capacity:
-
21m3
-
Weight:
-
8900
-
Inner Material:
-
Stainless steel
-
Outer Material:
-
Carbon steel
-
Design Pressure(MPa):
-
2.2
-
Design Standard:
-
ISO1496 ,IMDG ,ADR , RID , ASME, US-DOT
-
Working Temperature(℃):
-
-196 - -40 ℃
-
Applicable Industries:
-
Automotive and Transportation Equipment, Metal Production, Welding and Metal Fabrication, Chemicals, Electronics
Product Overview

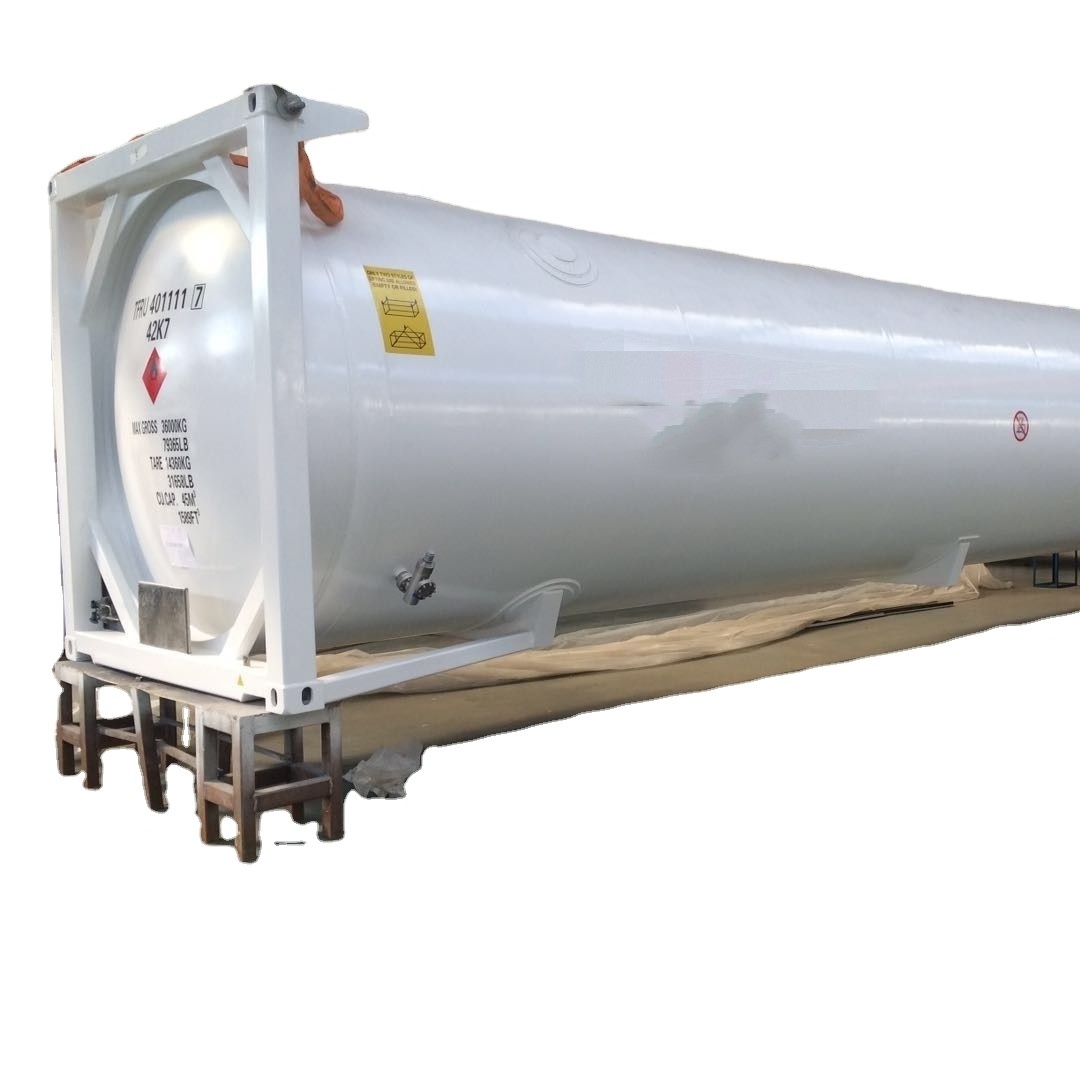

ISO Tank Container
The 20-foot ISO framework type tank container is applicable to Intermodal transportation. Marine, highway, and railroad transportation.With its overall dimensions conforming to the ISO standards,the tank container has a rating for as high as 9 high stacking loaded. We work directly with each customer to ensure their specific needs are met. Our ISO tank containers can be heated or non-heated, insulated or non-insulated with multiple storage capacities.
We meet all safety standards and regulations so customers can transport a variety of liquids, including water, fuel, foos-grade products, hazardous chemicals, Bitumen, compressed gases and more. All ISO tanks are designed to meet your specific needs.
We meet all safety standards and regulations so customers can transport a variety of liquids, including water, fuel, foos-grade products, hazardous chemicals, Bitumen, compressed gases and more. All ISO tanks are designed to meet your specific needs.
FEATURES AT A GLANCE
With its overall dimensions conforming to the ISO standards, the tank container has a rating for as high as 9 high stacking loaded.
Various components such as valves, safety accessories, heating, cooling components, insulation, walkway, and ladders can be configured according to specific client needs and product requirements to store and transport chemicals globally.
PRODUCT SPECIFICATIONS
Medium:
LO2/LN2/LAr/LCO2/LNG/LC2H4/LC2H6
|
1.0 General
|
|
|
Type of product
|
Intermodal ISO Container UN T75
|
|
Medium
|
LO2 /LN2 /LAr/LCO2 /LNG/ LC2H4/ LC2H6
|
|
MAWP.
|
22 bar
|
|
Water capacity
|
21 100 Liters
|
|
Filling ratio
|
95%/90%/80%
|
|
Tare weight
|
8 700kg(f3%)
|
|
Load weight
|
27 300 kg
|
|
Maximum gross weight:
|
36 000 kg
|
|
Stacking
|
192 000 kg
|
|
Design code
|
ISO1496 ,IMDG ,ADR , RID , ASME, US-DOT
|
|
Approvals
|
CCC, CSC
|
|
Approval and inspection
org
|
Lloyd's Register
|
|
Design code
|
ASME SECT.Đ DIV.1 with U stamp(Mandatory Appendix 44)
|
|
Material
|
Stainless steel(SA240 304N)
|
|
Design temperature
|
50ć
|
|
MDMT
|
-196ć
|
|
Baffles
|
Two transverse baffles
|
|
Surface treatment
|
Pickling
|
|
Material
|
Carbon steel(Q345R)/Stainless steel(S30408)
|
|
Design temperature
|
50ć
|
|
MDMT
|
-40ć
|
|
Surface treatment
|
Shot blast to SA 21/2
|
|
Type of insulation
|
Vacuum with multi-layer super insulation
|
|
Vacuum
|
≤0.1Pa( Warm)
|
|
Net evaporation rate
|
0.34% /d ( LN2 )
(ambient conditions:100kPa and 15ć)
|
PRODUCT CONFIGURATION
