Quick Details
-
Production Capacity:
-
High
-
Power:
-
4.5KW
-
Dimension(L*W*H):
-
5300*1200*1750mm
-
Max welding height:
-
120mm
-
Max. welding width:
-
120mm
Quick Details
-
Brand Name:
-
Zhenfei
-
Voltage:
-
380V
-
Weight:
-
1100 kg
-
Production Capacity:
-
High
-
Power:
-
4.5KW
-
Dimension(L*W*H):
-
5300*1200*1750mm
-
Max welding height:
-
120mm
-
Max. welding width:
-
120mm
Product Paramenters
|
Model
|
WFH4-4500
|
|
Material
|
Carbon Steel. aluminum. cast iron
|
|
Voltage
|
220V 50hz
|
|
Power
|
4.5KW
|
|
Min Welding Range
|
400mm
|
|
Max Welding Range
|
4500mm
|
|
Air pressure
|
0.5-0.8MPa
|
|
Dimension
|
5300*1200*1750mm
|

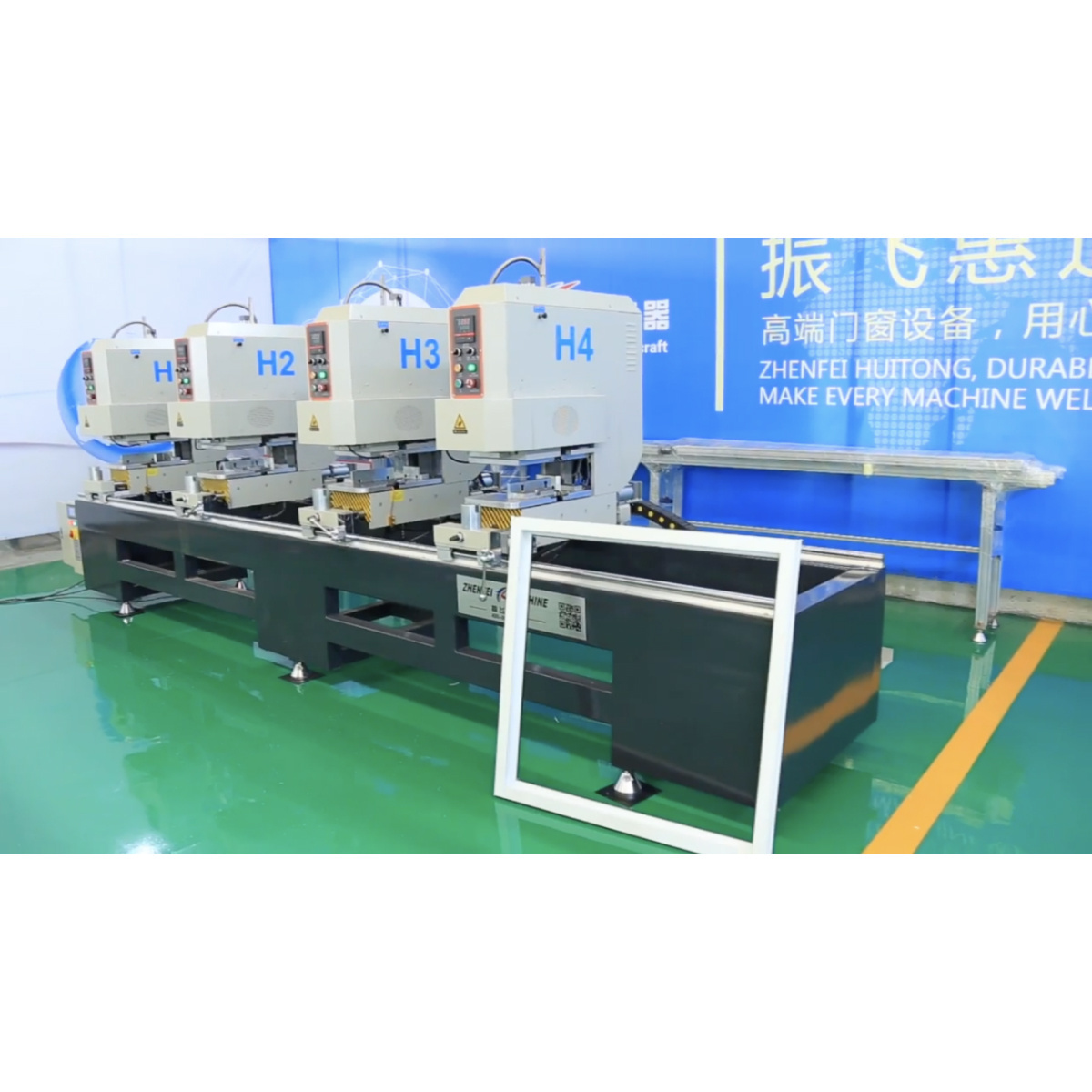

Product Description
1. It is professionally used for welding colored profiles. After welding is completed, the welding flowers can be cleaned up at one time.
2. The fuselage is welded with high rigidity frame body, which has strong bearing capacity and is not easy to be deformed.
3. This machine is equipped with an automatic air blowing device, which can automatically blow off the shear welding flower.
4. The movement of the machine head is pneumatically braked, easy to operate, stable and high in work efficiency.
5. The moving plate is moved by the linear slide moving machine to ensure the smoothness of the lower movement of the welding
plate.
6. The design of the machine's pressure clamp is designed with high precision square guide to ensure the straightness and flatness
of the welding.
7.This machine is equipped with a unique head locking mechanism, which has a strong locking effect and will not be damaged for long-term use.
2. The fuselage is welded with high rigidity frame body, which has strong bearing capacity and is not easy to be deformed.
3. This machine is equipped with an automatic air blowing device, which can automatically blow off the shear welding flower.
4. The movement of the machine head is pneumatically braked, easy to operate, stable and high in work efficiency.
5. The moving plate is moved by the linear slide moving machine to ensure the smoothness of the lower movement of the welding
plate.
6. The design of the machine's pressure clamp is designed with high precision square guide to ensure the straightness and flatness
of the welding.
7.This machine is equipped with a unique head locking mechanism, which has a strong locking effect and will not be damaged for long-term use.
