Quick Details
-
Voltage:
-
AC380V,50Hz
-
Power:
-
37KW
-
Dimension(L*W*H):
-
6100*3000*5400mm
-
Size of sand box(L*W):
-
600*700mm
-
Technology:
-
Automatic Mold Adjustment
-
Function:
-
Sand Foundry Molding
-
Usage:
-
Sand Moulding Making
-
Drive Method:
-
Electric-Pneumatic-Hydraulic
-
The Thickness Of Sand Mold:
-
(150-250) * 2 ( mm )
-
Application:
-
Casting Industries
-
After-sales Service Provided:
-
Video technical support, Online support
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
Egypt, Turkey, Viet Nam
-
Weight:
-
17T
-
Certification:
-
CE, ISO
Quick Details
-
Place of Origin:
-
Fujian, China
-
Machine Type:
-
Automatic
-
Brand Name:
-
DELIN
-
Voltage:
-
AC380V,50Hz
-
Power:
-
37KW
-
Dimension(L*W*H):
-
6100*3000*5400mm
-
Size of sand box(L*W):
-
600*700mm
-
Technology:
-
Automatic Mold Adjustment
-
Function:
-
Sand Foundry Molding
-
Usage:
-
Sand Moulding Making
-
Drive Method:
-
Electric-Pneumatic-Hydraulic
-
The Thickness Of Sand Mold:
-
(150-250) * 2 ( mm )
-
Application:
-
Casting Industries
-
After-sales Service Provided:
-
Video technical support, Online support
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
Egypt, Turkey, Viet Nam
-
Weight:
-
17T
-
Certification:
-
CE, ISO

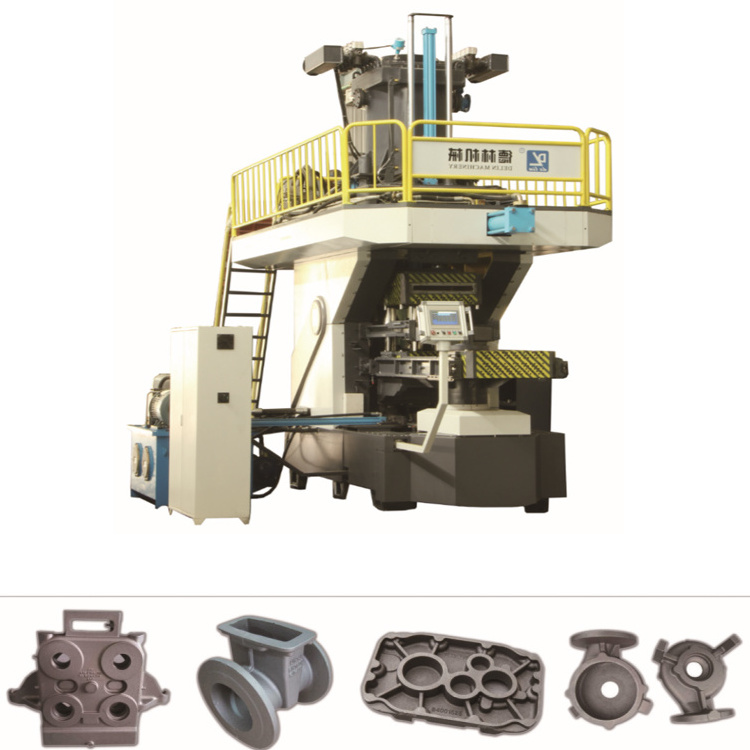

Product Description
Instructions：
1.The machine is stable, low power consumption, and long lifetime.
2.High level of automation, easy control, and lower labor cost.
3.Highly standardized, good parts interchangeable, fast and low-cost maintenance.
4.Turning to make the vertical shooting, the sand could be compacted both inside and outside according to technical requirements, which makes the sand mold better.
5.Mold release agent is sprayed automatically, which makes the demolding smoothly, casting surface glossily, and no defect in the sand mold.
6.Electric cabinet and hydraulic station are all installed in the machine, which makes them compact and easy maintenance.
7.Low failure rate, and the machine can diagnose the failure by its own.
1.The machine is stable, low power consumption, and long lifetime.
2.High level of automation, easy control, and lower labor cost.
3.Highly standardized, good parts interchangeable, fast and low-cost maintenance.
4.Turning to make the vertical shooting, the sand could be compacted both inside and outside according to technical requirements, which makes the sand mold better.
5.Mold release agent is sprayed automatically, which makes the demolding smoothly, casting surface glossily, and no defect in the sand mold.
6.Electric cabinet and hydraulic station are all installed in the machine, which makes them compact and easy maintenance.
7.Low failure rate, and the machine can diagnose the failure by its own.
Size Information
|
No.
|
Items
|
DLZX6070S
|
|
1
|
Size of sand box(L*W)
|
600*700mm
|
|
2
|
Thickness of sand box
|
Up:150-250mm；Down:150-250mm
|
|
3
|
Molding takt(s/mold)
|
36s/per mold (with the time for sand core loading)
|
|
4
|
Compacting pressure
|
≤21Mpa
|
|
5
|
Air consumption
|
1.7m3(Normal)
|
|
6
|
Humidity of sand mold
|
2.8-3.5%
|
|
7
|
Drive method
|
Electric-pneumatic-hydraulic
|
|
8
|
Thickness of template
|
20-40mm
|
|
9
|
Power supply
|
AC380V,50Hz
|
|
10
|
Total power of the machine
|
37KW
|
|
11
|
Net weight
|
17T
|
|
12
|
Boundary Dimensions (L*W*H)
|
6100*3000*5400mm
|
Company Introduction
Nan'an Delin Machinery Manufacturing Co., Ltd.
1.We are one manufacturer of metal foundry machinery and CNC machining machinery in China.
2.We are production automatic molding machine, gravity pressure casting machine, compound
CNC polishing machine , SPM machine(compound CNC drilling machine,CNC machining center etc.), furnace, core shooting machine, mixing sand machine and so on.
3.Our machines are extensively used in producing and machining foundry parts,metal castings,
plumbing fittings, sanitary ware,car spare parts,valve for brass, aluminium, zinc, iron cast production line and others please contact us!
4.We have professional technical support and after sale service. With a whole line foundry machines,good quality, reasonable prices and stylish designs.
