Quick Details
-
Brand Name:
-
MSL
-
Model Number:
-
MSLGX11
-
Product name:
-

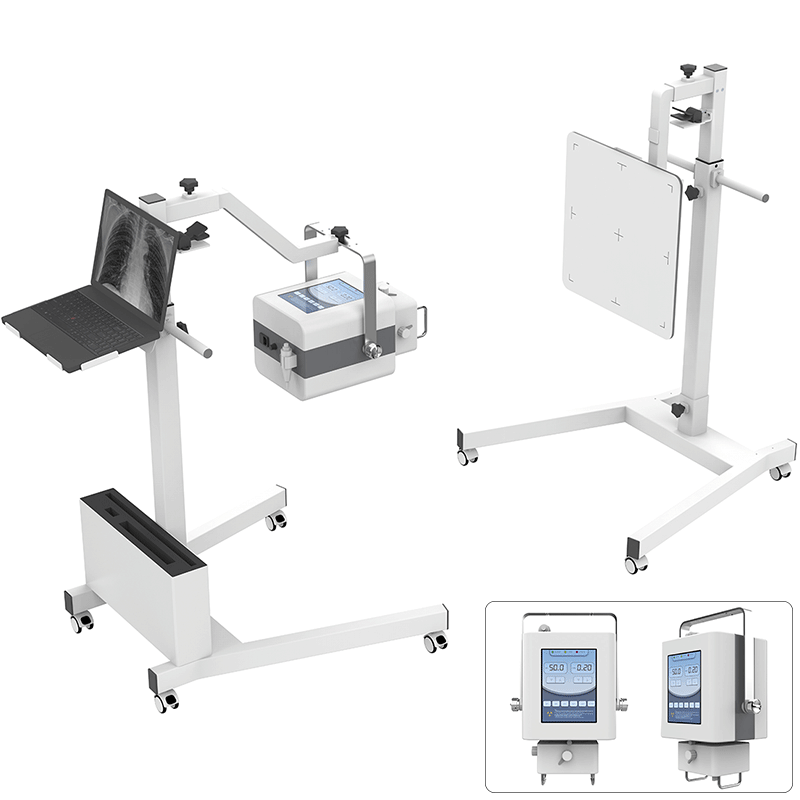

Portable X Ray Machine
-
KV range:
-
40 to 125 kV
-
KV precision:
-
± 8%
-
The largest mA:
-
100mA
-
MA precision:
-
≤±20%
-
MAs range:
-
0.1mAs to 100mAs
-
MAs precision:
-
≤±(5%+0.2mAs)
-
The anode target Angle:
-
15°
-
Maximum anode heat capacity:
-
42KHU
-
Maximum anode heat dissipation rate:
-
275W
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MSL
-
Model Number:
-
MSLGX11
-
Product name:
-
Portable X Ray Machine
-
KV range:
-
40 to 125 kV
-
KV precision:
-
± 8%
-
The largest mA:
-
100mA
-
MA precision:
-
≤±20%
-
MAs range:
-
0.1mAs to 100mAs
-
MAs precision:
-
≤±(5%+0.2mAs)
-
The anode target Angle:
-
15°
-
Maximum anode heat capacity:
-
42KHU
-
Maximum anode heat dissipation rate:
-
275W
Product Description
|
System Requirements
|
|
|
|
Electric source（V）
|
AC 210 - 230 / AC 100 -120
|
|
|
Power（KW）
|
5
|
|
|
Generator
|
|
|
|
kV range（KVp)
|
40 -125
|
|
|
mAs range (mAs)
|
0.1-100
|
|
|
mA range (mA)
|
10 -100
|
|
|
Communication mode
|
RS232/BT
|
|
|
Exposure mode
|
Wired/Wireless
|
|
|
X-ray Tube
|
|
|
|
Focal spots（mm）
|
0.6/1.8
|
|
|
Anode Angle（°）
|
15
|
|
|
Mechanics parameters
|
|
|
|
Simple rack size（mm³）
|
871 x 809 x 1899
|
|
|
Flat rack size（mm³）
|
871 x 809 x 1915
|
|
