Quick Details
-
Timing Range:
-
24 hours
-
Contact Resistance:
-
less than 50 m ohm
-
With battery or not:
-
Yes
-
With shell or not:
-
No
-
Certifications:
-
CE ROHS
-
Warranty:
-
3 YEARS
Quick Details
-
Max. Voltage:
-
220V
-
Place of Origin:
-
China
-
Contact capacity:
-
AC220V, 10A
-
Timing Range:
-
24 hours
-
Contact Resistance:
-
less than 50 m ohm
-
With battery or not:
-
Yes
-
With shell or not:
-
No
-
Certifications:
-
CE ROHS
-
Warranty:
-
3 YEARS

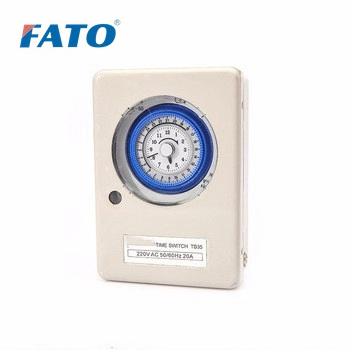

TB35B time switch/ relay with battery is widely applied to industrial and residential occasions requiring timing for the purpose of control such as neon light,heater, street lamp and so on. It features precision and reliability.
|
Model |
TB35B |
|
SPECIFICATION |
|
|
Contact capacity |
AC220V, 10A |
|
Timing range |
24h |
|
Contact resistance |
≤50 mΩ |
|
Insulation Resistance |
≥100 mΩ |
|
Coil voltage |
100-240VAC |
|
Electrical life |
100000 times |
|
Mechanical life |
10000000times |
|
Operating temperature |
-40°c ~ +55°c |
|
Battery |
Yes |
|
Mini timing Unit |
15 minutes |
|
Times of timing |
15minutes×96 |
|
DIMENSION |
|
|
|
|
