Quick Details
-
Brand Name:
-
Wanrooetech
-
Voltage:
-
as per client's request
-
Dimension(L*W*H):
-
Variable
-
Weight (T):
-
0.5
-
Product name:
-
E waste Recycling Machine PCB Pulverizer PVC Powder Making Machine
-
Color:
-
Optional
-
Motor power:
-
55kw
-
Motor brand:
-
Siemens
-
Cooling method:
-
water cooling
-
Power source:
-
380V/50Hz
-
Powder size:
-
10mesh-120 mesh
-
Capacity:
-
60-600kg/h
-
Power:
-
according to model
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
Quick Details
-
Max.Production Capacity (kg/h):
-
1000
-
Place of Origin:
-
Jiangsu, China
-
Production Capacity (kg/h):
-
100 - 900 kg/h
-
Brand Name:
-
Wanrooetech
-
Voltage:
-
as per client's request
-
Dimension(L*W*H):
-
Variable
-
Weight (T):
-
0.5
-
Product name:
-
E waste Recycling Machine PCB Pulverizer PVC Powder Making Machine
-
Color:
-
Optional
-
Motor power:
-
55kw
-
Motor brand:
-
Siemens
-
Cooling method:
-
water cooling
-
Power source:
-
380V/50Hz
-
Powder size:
-
10mesh-120 mesh
-
Capacity:
-
60-600kg/h
-
Power:
-
according to model
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
100-1000kg/h E-waste Recycling Machine PCB Pulverizer PVC Powder Making Machine
Application Areas:
PVC Scrap Recycling Pulverizer Mill Machine is designed by our factory using Germany technology and our own production experience. PVC pulverizer machine is used to grind waste SPC floor,PVC ceiling, PVC pipe, PVC profile, PVC marble sheet into fine powder. The capacity can be from 100-900kg/h.
Description:
This PNMP PVC Plastic mill is chiefly designed to grind PVC. The pulverizer uses turbo type blade. The static blade and rotary blade could be adjusted, thus you can get different size of PVC powder with one grinder. High output, low energy consumption and long lifespan attract many customers around the world. It can be used for PVC plastic from PVC pipe/profile/soft sheet/bottle/card from low to moderate hardness PVC.
The output of our PNMP pulverizer can reach 100-900kg/h (15-100mesh).

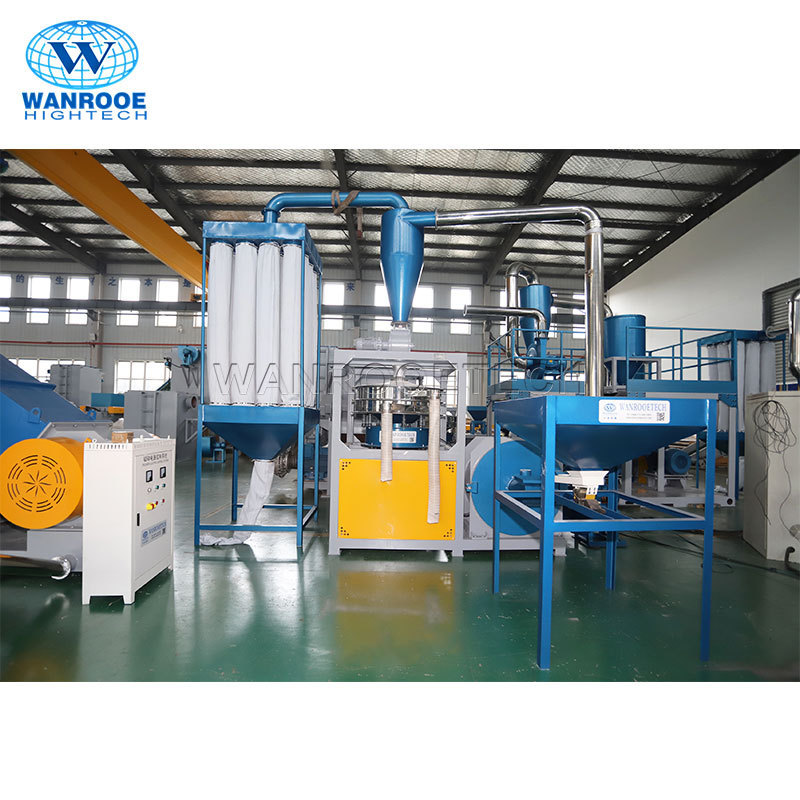

The plastic pulverizer machine is mainly composed of electric motor, disc type blade, feeding fan, vibrating sieve, dust removing system, etc.
According to the customer's needs, you can choose some accessories, such as converter, vacuum loader, screw loader, magnetic net, metal separator, chiller, pulse dust collector, metering and weighing packaging machine, etc.
Technical Features:
1. PNMP Pulverizer can easy to grind all kinds Hard & Soft PVC into powder.
2. The dust collector is added to effectively reduce dust pollution.
3. The discharging of the main fan reduces labors intensity of operating workers.
4. The door cover of the host can be opened for convenience of maintenance and replacement of cutters.
5. The mill use the water and wind double cooling system ,Prevent bearing and other parts from overheating.
6. The powder mesh is adjustable(15-100mesh).
7. Easy installation and maintenance, just open the door to clean up.
8. Using Well-known brand accessories, such as SKF bearings and Siemens motors, can work for a long time, saving the trouble of changing accessories frequently.
9. With a wide range of optional accessories, professional solutions can be developed based on the customer's budget and processing requirements.
|
Model |
PNMP-500 |
PNMP-600 |
PNMP-700 |
PNMP-800 |
PNMP-1000 |
|
Grinding Disc Diameter(mm) |
500 |
600 |
700 |
800 |
1000 |
|
Main Motor Power(kw) |
37-45 |
45-55 |
55-75 |
75-90 |
9-110 |
|
Vibrating Sieve Power(kw) |
0.75 |
0.75 |
0.75 |
0.75 |
1.1 |
|
Capacity(kg/h) |
100-300 |
200-500 |
250-600 |
300-800 |
400-900 |
1. One year guarantee for whole machine
2.24 hours technical support
3. Our engineers can provide service overseas. The service is free, but the charge of round air-tickets, food and hotel is to the customer's account.
4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price.
5. We also can provide training service which help operators handle the machine well.
