Adopt switch button, make it use easily, hard, simple processing, easy to understand.
- Product Details
- {{item.text}}
Quick Details
-
Power (kW):
-
12.2
-
After Warranty Service:
-
Online support
-
Max wideth:
-
1000mm
-
Thickness of production:
-
5-160mm
-
Transport speed:
-
frequency control
-
overall size:
-
4200x2000x2100mm
-
Name:
-
Brush Sanding Machine of Metal
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HAILIJU
-
Weight (KG):
-
2200 KG
-
Power (kW):
-
12.2
-
After Warranty Service:
-
Online support
-
Max wideth:
-
1000mm
-
Thickness of production:
-
5-160mm
-
Transport speed:
-
frequency control
-
overall size:
-
4200x2000x2100mm
-
Name:
-
Brush Sanding Machine of Metal
Products Description

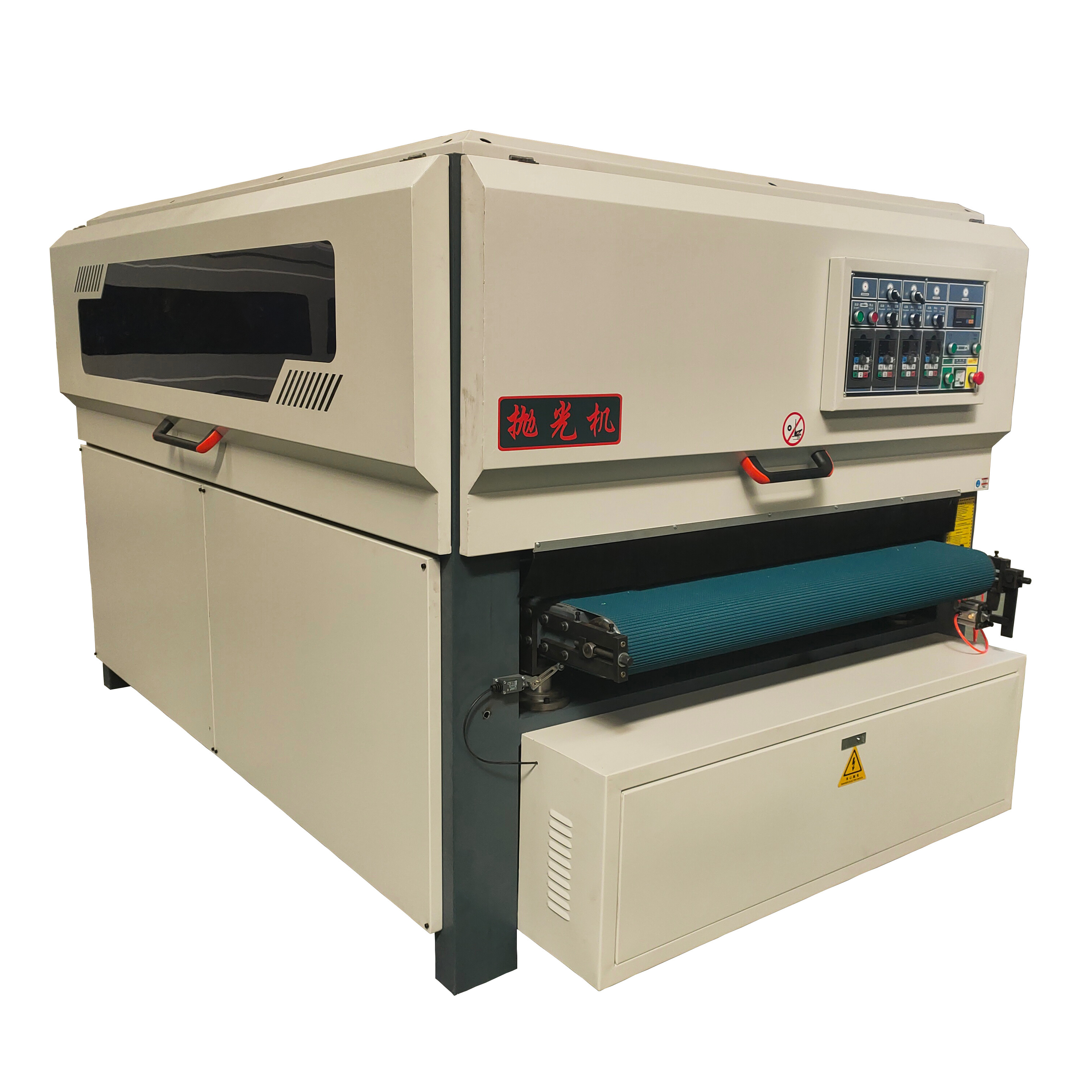

Full automatic sanding machine
MP-2YHP
Product Paramenters
|
MAX working width
|
1300mm
|
|
MIN working material length
|
50mm
|
|
working thickness
|
5-120mm
|
|
feeder speed
|
5-25M
|
|
total power
|
8KW
|
|
working air pressure
|
0.55mpa
|
|
machine overall size
|
3000*2000*1800-2000
|
|
machine weight
|
2100KG
|
Details Images
Panel control
Frequency conversion control cabinet
Frequency stability, high configuration, sensitive control, ensure the safety and service life of the machine.
Oil water separator
The oil-water separator can effectively prevent the water vapor in the air from entering the machine and ensure the safety of the
machine.
Adjustable lifting system
Disc part, Horizontal brush part, polishing roller part, can according polishing board thickness and Grinding demand，Customize the
height of each part of the floating polishing machine, so as to improve the grinding accuracy and efficiency.
Grinding disc polishing
The vertical grinding disc (the grinding disc can swing left and right) is polished to realize the deep cleaning of the gap. It is
equipped with a quick replacement joint, which can make the disc replacement more convenient.
Oil water separator
The oil-water separator can effectively prevent the water vapor in the air from entering the machine and ensure the safety of the
machine.
Frequency conversion control cabinet
The frequency conversion is stable. The frequency converter with high-end imported accessories is sensitive and safe to ensure the
safety and service life of the machinery. The conveyor belt is equipped with frequency conversion, which is convenient to use and
speed regulation, improves work efficiency and saves labor cost.
Imported reducer
The standard cast iron gearbox reduction motor is not easy to deform compared with the gearbox, and the high-temperature operation
will not affect the machine, enhance the service life of the machine, and make the transportation adjust freely, which is more
worry-free.
Automatic deviation correction design
Start the automatic deviation correction design to ensure that the product does not deviate, and the service life of the conveyor
belt is longer, so as to ensure that it can still be polished efficiently at high speed.
Feeder belt
and long-term operation, it will not affect the fuselage. The service life of the fuselage is longer, and the conveyor can be
adjusted freely, which is more worry-free.
Lifting motor magnetic ring induction
The magnetic ring induction of the lifting motor has higher precision. The upgraded altimeter has a longer service life.
Processing Effect Display
Product packaging
