Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
OEM
-
Model Number:
-
JGP40036C INOX
-
Place of Origin:
-
Zhejiang
-
Horsepower:
-
Please contact us
-
Cable Length:
-
1m
-
Outlet Size:
-
G1"
-
Power:
-
400W(400/600/800/1000/1200W)
-
motor:
-
OTHER
-
Product name:
-
Stainless Steel Irrigation Pump
-
Material:
-
Stainless Steel/Carbon Steel
-
Working pressure:
-
1.2-2.4 bar
-
Max.flow rate:
-
2800 l/h
-
Max.suction height:
-
8m
-
Dia of connecting pipe.:
-
G1"
-
Cable specifification:
-
HO7RN-F3G1.0mm²
-
Max.Noise(dB):
-
85
-
Pressure tank volume:
-
19L
-
Certification:
-
RoHS/Reach/CE
Quick Details
-
Application:
-
Developing World Water Solutions, Family Homes, Washing and Cleaning, wastewater treatment, Water Distribution, Water Treatment Solutions
-
Pressure:
-
1.2-2.4bar
-
Voltage:
-
230V/50Hz
-
Warranty:
-
1 year
-
Brand Name:
-
OEM
-
Model Number:
-
JGP40036C INOX
-
Place of Origin:
-
Zhejiang
-
Horsepower:
-
Please contact us
-
Cable Length:
-
1m
-
Outlet Size:
-
G1"
-
Power:
-
400W(400/600/800/1000/1200W)
-
motor:
-
OTHER
-
Product name:
-
Stainless Steel Irrigation Pump
-
Material:
-
Stainless Steel/Carbon Steel
-
Working pressure:
-
1.2-2.4 bar
-
Max.flow rate:
-
2800 l/h
-
Max.suction height:
-
8m
-
Dia of connecting pipe.:
-
G1"
-
Cable specifification:
-
HO7RN-F3G1.0mm²
-
Max.Noise(dB):
-
85
-
Pressure tank volume:
-
19L
-
Certification:
-
RoHS/Reach/CE
Products Description
Model:
JGPXXX36CINOX

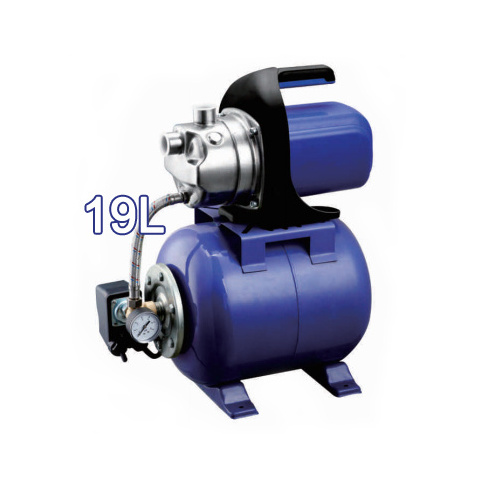

Automatic booster system coupled with stainless steel pump head jet pump and
19L carbon steel pressure tank. This pump has equipped mechanical pressure
control switch and pressure gauge. It works very silent and reliable and particularly
suitable to increase pressure from a water system.
PARAMETER
|
Model No.
|
JGP40036CINOX
|
JGP60036CINOX
|
JGP80036CINOX
|
JGP100036CINOX
|
JGP120036CINOX
|
|
Rated Power
|
400W
|
600W
|
800W
|
1000W
|
1200W
|
|
Vol&Fre.
|
230V/50Hz
|
230V/50Hz
|
230V/50Hz
|
230V/50Hz
|
230V/50Hz
|
|
Max.pump height
|
30m
|
30m
|
38m
|
44m
|
46m
|
|
Max.pump rate
|
2800l/h
|
3000l/h
|
3200l/h
|
3500l/h
|
3700l/h
|
|
Max.suction height
|
8m
|
8m
|
8m
|
8m
|
8m
|
|
Working pressure
|
1.2-2.4bar
|
1.3-2.6bar
|
1.5~3.0bar
|
1.5~3.0bar
|
1.5~3.0bar
|
|
Max.grain size
|
1mm
|
1mm
|
1mm
|
1mm
|
1mm
|
|
Max.Noise(dB)
|
85
|
85
|
85
|
85
|
85
|
|
Dia of connecting pipe.
|
G1"
|
G1"
|
G1"
|
G1"
|
G1"
|
|
Cable specification
|
HO7RN-F3G1.0mm²
|
HO7RN-F3G1.0mm²
|
HO7RN-F3G1.0mm²
|
HO7RN-F3G1.0mm²
|
HO7RN-F3G1.0mm²
|
|
Length of cable
|
1m
|
1m
|
1m
|
1m
|
1m
|
|
Max.medium temperature
|
35℃
|
35℃
|
35℃
|
35℃
|
35℃
|
|
Qty of Impeller
|
1PC
|
1PC
|
1PC
|
1PC
|
1PC
|
|
Pressure tank volume
|
19L
|
19L
|
19L
|
19L
|
19L
|
|
Single gift box size
|
48.5x30x57cm
|
48.5x30x57cm
|
48.5x30x57cm
|
48.5x30x57cm
|
48.5x30x57cm
|
|
Single gross weight
|
11.5kg
|
12.1kg
|
12.7kg
|
13.3kg
|
14.1kg
|
|
Qty/20’GP
|
338pcs
|
338pcs
|
338pcs
|
338pcs
|
338pcs
|
Pump
●
Protection class:IPX8
●
Max.medium temperature:
35℃
●
Carbon steel pump body
●
Dia of connectiong pipe:
G1"
Motor
●
Insulation class:E
●
AISI 410 shaft
Hydraulic Performance Curves
