Quick Details
-
Standard or Nonstandard:
-
Standard
-
Material:
-
Aluminium
-
Brand Name:
-
CHBG
-
Place of Origin:
-
Zhejiang, China
-
Certification:
-
ROHS CE
-
Company type:
-
Manufactor
-
Surface Treatment:
-
Hard anodizing
-
Keyway:
-
Can be customized
-
outside diamater:
-
OD82mm; L68mm
-
Bore Diameter(d1~d2):
-
16mm-42mm
-
Rate torque:
-
155N.m
-
Tightening system:
-
clamp / set screw
-
Product name:
-

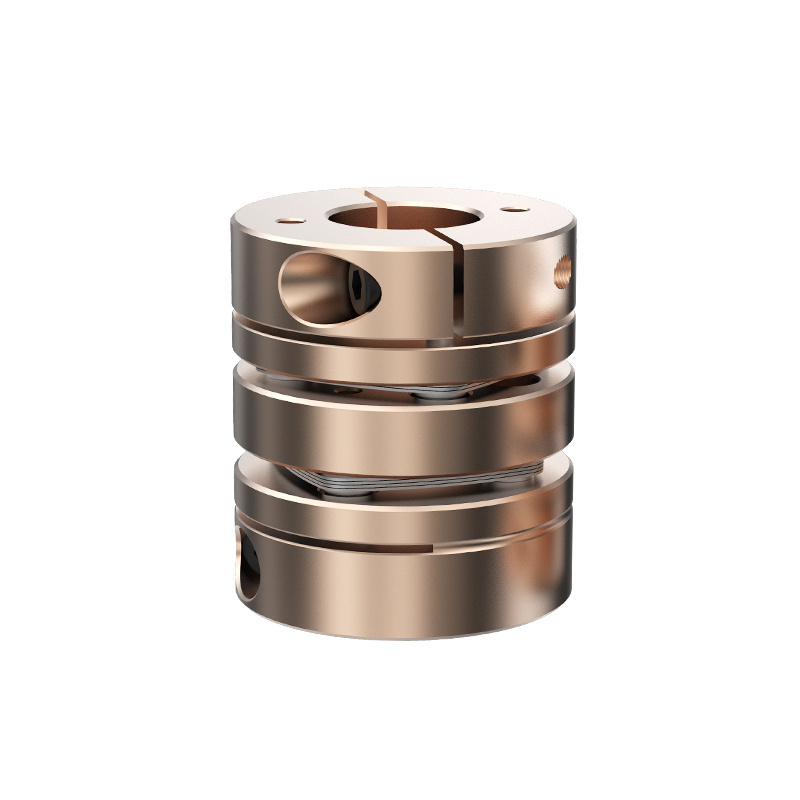

Diaphragm coupling
Quick Details
-
Warranty:
-
1 years
-
Applicable Industries:
-
Manufacturing Plant, Machinery Repair Shops, Retail
-
Structure:
-
Jaw / Spider
-
Standard or Nonstandard:
-
Standard
-
Material:
-
Aluminium
-
Brand Name:
-
CHBG
-
Place of Origin:
-
Zhejiang, China
-
Certification:
-
ROHS CE
-
Company type:
-
Manufactor
-
Surface Treatment:
-
Hard anodizing
-
Keyway:
-
Can be customized
-
outside diamater:
-
OD82mm; L68mm
-
Bore Diameter(d1~d2):
-
16mm-42mm
-
Rate torque:
-
155N.m
-
Tightening system:
-
clamp / set screw
-
Product name:
-
Diaphragm coupling
CHBG bellows large torque elastic coupling
Certifications
Product Description
Advantages:
|
Hard anodizing to prevent corrosion and oxidation. Material of elastomer is from Bayer Germany Our bore and jaws are one-time formed having higher eccentricity Can customize keyway if you need Fully automatic mechanical production Accept customization Accept OEM |
|
| modeel | D(mm) | d1-d2(mm) | M | L(mm) | L1(mm) | L2(mm) | L3(mm) | Screw tightening torque(n.m) | |
| Minimum aperture | Maximum aperture | ||||||||
| LD1-B-D20L20 | 20 | 3 | 8 | M3 | 20 | 9 | 2 | 4 | 2.1 |
| LD1-B-D26L26 | 26 | 4 | 12 | M3 | 26 | 11.8 | 2.4 | 4.1 | 2.1 |
| LD1-B-D32L28 | 32 | 5 | 16 | M3 | 28 | 12.4 | 3.2 | 4 | 2.1 |
| LD1-B-D34L33 | 34 | 5 | 16 | M4 | 33 | 14.9 | 3.2 | 5.2 | 4.9 |
| LD1-B-D34L38 | 34 | 5 | 16 | M4 | 38 | 17.4 | 3.2 | 5.4 | 4.9 |
| LD1-B-D40L35 | 40 | 6 | 19 | M4 | 35 | 15.5 | 4 | 5 | 4.9 |
| LD1-B-D45L35 | 45 | 8 | 22 | M4 | 35 | 15.5 | 4 | 5 | 4.9 |
| LD1-B-D50L44 | 50 | 10 | 22 | M4 | 44 | 20 | 4 | 6.8 | 4.9 |
| LD1-B-D56L45 | 56 | 12 | 32 | M5 | 45 | 20 | 5 | 6 | 10 |
| LD1-B-D68L54 | 68 | 14 | 35 | M6 | 54 | 24.5 | 5 | 8 | 17 |
| LD1-B-D82L68 | 82 | 16 | 42 | M8 | 68 | 30.8 | 6.5 | 10.8 | 44 |
| LD2-B-D20L28 | 20 | 3 | 8 | M3 | 28 | 9 | 2 | 4 | 6 |
| LD2-B-D26L35 | 26 | 4 | 12 | M3 | 35 | 11.8 | 2.4 | 4.1 | 6.6 |
| LD2-B-D32L41 | 32 | 5 | 16 | M3 | 41 | 12.4 | 3.2 | 4 | 9.8 |
| LD2-B-D34L45 | 34 | 5 | 16 | M4 | 45 | 14.9 | 4.2 | 5.2 | 8.8 |
| LD2-B-D40L50 | 40 | 6 | 19 | M4 | 50 | 15.5 | 5.2 | 5 | 11 |
| LD2-B-D45L50 | 45 | 8 | 22 | M4 | 50 | 15.5 | 6.2 | 5 | 11 |
| LD2-B-D50L60 | 50 | 10 | 22 | M5 | 60 | 20 | 7.2 | 6.8 | 12 |
| LD2-B-D56L64 | 56 | 12 | 32 | M5 | 64 | 20 | 8.2 | 6 | 14 |
| LD2-B-D68L74 | 68 | 14 | 35 | M6 | 74 | 24.5 | 9.2 | 8 | 15 |
| LD2-B-D82L98 | 82 | 16 | 42 | M8 | 98 | 30.8 | 10.2 | 10.8 | 23.5 |
Product Pictures
Precautions for use
- When the tolerance is above the allowable value, over-high torque or above the allowable value of shaft tolerance, the coupling will deform plastically and shorten its life.
- If there is any abnormal mechanical noise in operation, please stop the operation immediately, then confirm the cause: deviation, screw loose, or the rotating object be hindered before restarte operation.
- If use on a heavy load equipment, please use glue to prevent screws getting loose or choose a bigger size coupling.
- The rated torque means the continuous torque capability of the coupling.
- The maximum torque refers to the instantaneous torque capability of the coupling.
