Quick Details
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
LW and LAIWEI,OEM.
-
Model Number:
-
Thread End Mill
-
Product Name:
-
Thread End Mill
-
Suitable for:
-
Stainless Steel, Alloy Steel, Titanium Alloy
-
Type:
-
M6*1
-
Surface Finishing:
-
TiAIN Coating
-
Packing:
-
1 PCS in a Plastic Tube, 10 PCS Per Group
-
HRC:
-
55 Degree
-
OEM:
-
Avaliable
-
Shank Diameter:
-
4/6/8/10/12/16
-
Feature:
-
High Performance Cutting
-
Size:
-
Customized Size
Quick Details
-
Material:
-
Carbide
-
Coating:
-
TiAIN
-
Warranty:
-
3 days
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
LW and LAIWEI,OEM.
-
Model Number:
-
Thread End Mill
-
Product Name:
-
Thread End Mill
-
Suitable for:
-
Stainless Steel, Alloy Steel, Titanium Alloy
-
Type:
-
M6*1
-
Surface Finishing:
-
TiAIN Coating
-
Packing:
-
1 PCS in a Plastic Tube, 10 PCS Per Group
-
HRC:
-
55 Degree
-
OEM:
-
Avaliable
-
Shank Diameter:
-
4/6/8/10/12/16
-
Feature:
-
High Performance Cutting
-
Size:
-
Customized Size
Product Description

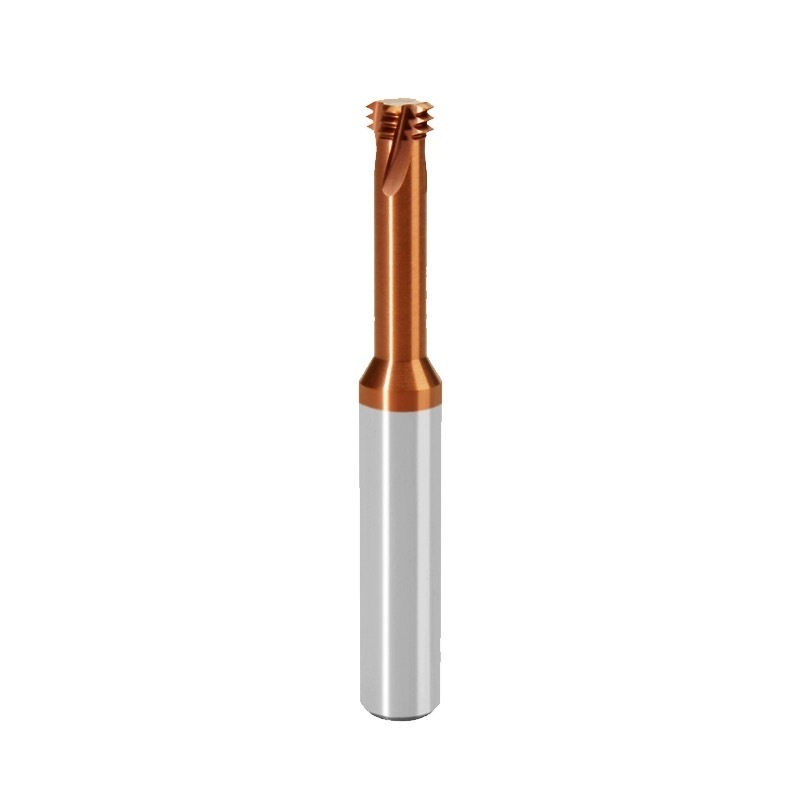

Solid-carbide thread mills custom specially designed for the production of threads in very small bores.
Sub-micron grade carbide mini mill with TiAIN coating - thread tools, for internal or external thread
They can be used to machine Titanium, surgical stainless steels, and hardened materials (up to 45 HRC) – as well as for general purpose threading.
Features:
1. Supports threads as small as ISO M1 x 0.25, and 0-80 UNF
2. The thread depth can be up to 5 x Thread Diameter (for some tools)
3. Multi (3-5) flutes
4. Suitable for high-speed air turbine machines (30,000-40,000 RPM), and for standard machining centers (6,000+ RPM)
Application:
These Are For Use On Steel.
Specification
|
Size
|
Pitch
|
Efficient
Length
|
Shank
Diameter
|
Overall
Length
|
Flutes
|
|
M2
|
0.4
|
6mm
|
4mm
|
50mm
|
3
|
|
M2.5
|
0.45
|
7.5mm
|
4mm
|
50mm
|
3
|
|
M3
|
0.5
|
9mm
|
4mm
|
50mm
|
3
|
|
M3.5
|
0.6
|
8.7mm
|
4mm
|
50mm
|
3
|
|
M4
|
0.7
|
12mm
|
4mm
|
50mm
|
3
|
|
M5
|
0.8
|
15mm
|
4mm
|
50mm
|
3
|
|
M6
|
1.0
|
18mm
|
6mm
|
50mm
|
3
|
|
M8
|
1.25
|
24mm
|
6mm
|
50mm
|
3
|
|
M10
|
1.5
|
30mm
|
8mm
|
75mm
|
3
|
|
M12
|
1.75
|
36mm
|
10mm
|
75mm
|
4
|
|
M14
|
2.0
|
36mm
|
10mm
|
75mm
|
4
|
|
M16
|
2.0
|
40mm
|
12mm
|
75mm
|
4
|
Packing & Delivery
PACKING
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
SHIPPING
Shipment by DHL,Fedx,TNT,UPS etc.
BY SEA or BY Air
BY SEA or BY Air
