- Product Details
- {{item.text}}
Quick Details
-
Max Boom length:
-
3m to 6m
-
Type:
-
Barrier Gate
-
Running Time:
-
1.5 sec to 6 sec
-
Frequency:
-
50 / 60 HZ
-
Voltage:
-
220V / 110V
-
Key words:
-
Road Barrier
-
Power:
-
80W
-
Motor voltage:
-
220V
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
IBG-109
-
Boom Weight:
-
3kg to 11kg
-
Max Boom length:
-
3m to 6m
-
Type:
-
Barrier Gate
-
Running Time:
-
1.5 sec to 6 sec
-
Frequency:
-
50 / 60 HZ
-
Voltage:
-
220V / 110V
-
Key words:
-
Road Barrier
-
Power:
-
80W
-
Motor voltage:
-
220V

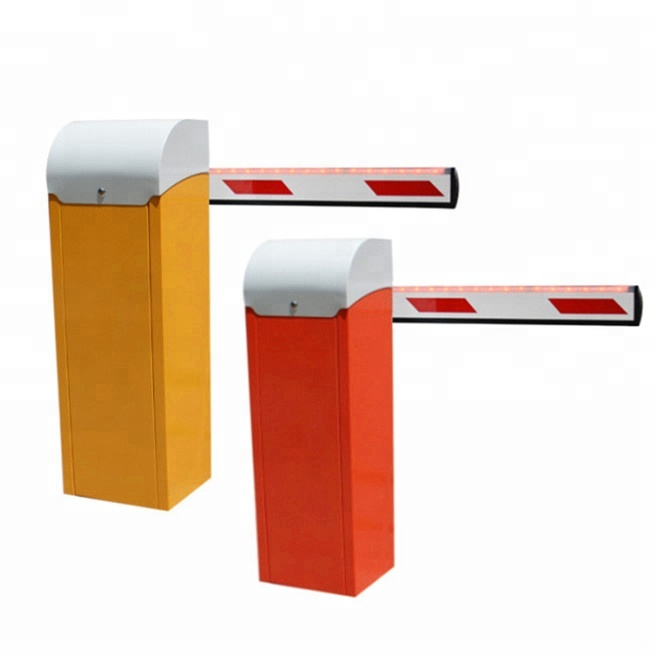

Road Safety Barrier Boom Barrier Gate Car Park Barrier for Parking Lots
Product Description
IBG-109 Road Safety Barrier Boom Barrier Gate Highlights
- Machine core with strong and double springs, make the machine core works more steadily.
- The high and low-temperature operation is more adaptable, up to minus -35℃to 85℃
- Die-casting aluminum alloy motor, precise and good at thermal radiation.
- RS485 Communication module (optional)
- Crank and rod structure makes the boom run placidly
IBG-109
Road Safety Barrier Boom Barrier Gate
Function&Feature
- Double safety limit switches(photo electricity limit switch and motor memory sensor)
- The left and right directions can be flexibly exchanged, no longer worrying about on-site construction and ordering inventory.
- More powerful supply control system, with function setting such as lever angle, time delay, and running seconds.
- Traffic light interface (AC220V, can support lamp with 40w)
- Support the infrared photocell for anti-bumping function (optional)
- Support external and internal vehicle loop detection (optional)
Application
- Parking lots.
- Toll gates.
- Goods yards.
- Railway crossings.
- Commercial premises.
- Apartment block access.
Technical Parameter
| 108-11 | 108-13 | 108-16 | 108-23 | 108-26 | 108-33 | 108-36 | 108-46 | 108-56 | |
| Running time | 1.5 sec | 3 sec | 6 sec | 3 sec | 6 sec | 3 sec | 6 sec | 6 sec | 6 sec |
| Boom type | straight | 90°folding | 180 folding | 2 fencing | 3 fencing | ||||
| Max Boom length | 3m | 4.5m | 6m | 3 | 5 | 3 | 5 | 4.5 | 4 |
| Boom demension | 45x80mm | 45x100mm | |||||||
| Boom Weight | 3kg | 4.5kg | 6kg | 6.5kg | 8kg | 9kg | 11kg | 7kg | 7.5kg |
| Voltage | 220V / 110V | ||||||||
| Frequency | 50 / 60 HZ | ||||||||
| Motor voltage | 220V | ||||||||
| Power | 80W | ||||||||
| Working temperature | -35℃~ +60℃ | ||||||||
| Protection grade | IP44 | ||||||||
