Quick Details
-
Power:
-
12hp
-
Place of Origin:
-
China
-
Brand Name:
-
YG
-
Maximum Digging Height:
-
2350mm
-
Maximum Digging Depth:
-
1375mm
-
Machine Weight:
-
800 kg
-
Max Digging Radius:
-
2350mm
-
Rated Speed:
-
2.2km/h
-
Warranty of core components:
-
1 year
-
Product name:
-
Excavators 1 Ton 2 Ton 3 Ton Mini micro digger hammer mini excavator
-
Keywords:
-
excavator 1 ton
-
Max. digging force:
-
7.5KN
-
Pump form:
-
Single gear pump
-
Set working pressure:
-
14Mpa
-
Swing speed:
-
12 rpm
-
Travel speed:
-
2.2Km/h
-
Gradeability:
-
30
-
Ground pressure:
-
19Kpa
-
Min. ground clearance:
-
80mm
Quick Details
-
Operating Weight:
-
0.8 TON, 1.8Ton, 1.2ton
-
Bucket capacity:
-
0.02m3
-
Engine Brand:
-
KOOP or CHANGCHAI
-
Power:
-
12hp
-
Place of Origin:
-
China
-
Brand Name:
-
YG
-
Maximum Digging Height:
-
2350mm
-
Maximum Digging Depth:
-
1375mm
-
Machine Weight:
-
800 kg
-
Max Digging Radius:
-
2350mm
-
Rated Speed:
-
2.2km/h
-
Warranty of core components:
-
1 year
-
Product name:
-
Excavators 1 Ton 2 Ton 3 Ton Mini micro digger hammer mini excavator
-
Keywords:
-
excavator 1 ton
-
Max. digging force:
-
7.5KN
-
Pump form:
-
Single gear pump
-
Set working pressure:
-
14Mpa
-
Swing speed:
-
12 rpm
-
Travel speed:
-
2.2Km/h
-
Gradeability:
-
30
-
Ground pressure:
-
19Kpa
-
Min. ground clearance:
-
80mm
Product Details

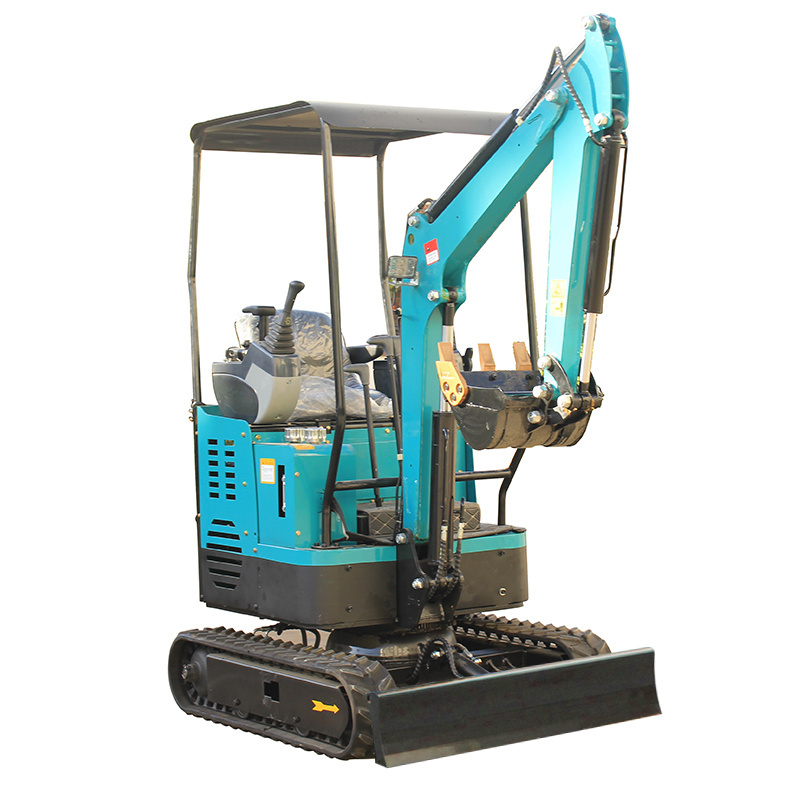

3.5 Ton Mini Excavator Excavator 1.8 Ton Hydraulic
Technical Parameter
|
Mini-excavator weight
|
|
kg
|
1200
|
|
Bucket capacity
|
|
m³
|
0.03
|
|
Working device form
|
|
|
Backhoe
|
|
Engine |
Model
|
|
KOOP
|
|
|
Delivery capacity
|
|
0.499
|
|
|
Rated output power / speed
|
kw/r/min
|
7.6/3000
|
|
|
Maximum torque
|
N.m/r/min
|
25/2500
|
|
Speed |
Maximum travel speed
|
km/h
|
1.2
|
|
|
Slewing speed
|
rpm
|
9
|
|
|
Maximum climbing ability
|
|
30°
|
|
|
Maximum digging force
|
kN
|
6.5
|
|
Caterpillar band part |
Ground pressure
|
kgf/cm²
|
0.4
|
|
|
Caterpillar band
|
Material
|
Rubber
|
|
|
Tension type
|
|
Grease cylinder
|
|
Hydraulic pump
|
Form
|
|
Gear pump
|
|
Hydraulic fluid capacity |
Working pressure
|
MPa
|
16
|
|
|
Flow
|
L/min
|
18/22/24
|
|
|
Hydraulic tank capacity
|
L
|
18
|
|
|
Engine oil capacity
|
L
|
1.65
|
|
|
Fuel tank capacity
|
L
|
5.5
|
|
Overall size |
Total Length (transport time)
|
mm
|
2200
|
|
|
Total width
(transportation / operation) |
mm
|
750
|
|
|
Total height (with / without ceiling)
|
mm
|
2285(2030)
|
|
|
Bulldozer blade width
|
mm
|
937
|
|
|
Bulldozer blade height
|
mm
|
210
|
|
|
Caterpillar band center distance
|
mm
|
746
|
|
|
Standard caterpillar band board width
|
mm
|
180
|
|
|
Platform clearance
|
mm
|
405
|
|
|
Standard bucket width (with / without side
teeth) |
mm
|
380/330
|
|
|
Total length of caterpillar band
|
mm
|
1200
|
