Quick Details
-
Injection Rate (g/s):
-
51.08 g/s
-
Machine Type:
-
plastic injection molding machine
-
Injection Weight (g):
-
51.08 g
-
Screw diameter (mm):
-
28 mm
-
Weight (KG):
-
800 kg
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
185 mm
-
Model Number:
-
JY-160S2
-
Brand Name:
-
JIE YANG
-
Power (kW):
-
2.2 kW
-
After-sales Service Provided:
-
Overseas service center available
-
Screw Diameter:
-
26-28mm
-
Min. Mold Thickness:
-
100/25mm
-
MACHINE DIMENSION:
-
1.35*0.92*2.06m
-
Injection pressure:
-
1183/1019 kg/cm2
-
Keyword:
-
Injection Moulding Machine
-
Distance Between Tie Bere:
-
265mm
-
Platen Size:
-
450*280mm
-
Opening Stroke:
-
190mm
-
Injection Rate:
-
105mm
Quick Details
-
Ejector Stroke(mm):
-
25 mm
-
Ejector Force(kN):
-
12.7 kN
-
Theoretical Shot Volume(cm³):
-
71.4 cm³
-
Injection Rate (g/s):
-
51.08 g/s
-
Machine Type:
-
plastic injection molding machine
-
Injection Weight (g):
-
51.08 g
-
Screw diameter (mm):
-
28 mm
-
Weight (KG):
-
800 kg
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
185 mm
-
Model Number:
-
JY-160S2
-
Brand Name:
-
JIE YANG
-
Power (kW):
-
2.2 kW
-
After-sales Service Provided:
-
Overseas service center available
-
Screw Diameter:
-
26-28mm
-
Min. Mold Thickness:
-
100/25mm
-
MACHINE DIMENSION:
-
1.35*0.92*2.06m
-
Injection pressure:
-
1183/1019 kg/cm2
-
Keyword:
-
Injection Moulding Machine
-
Distance Between Tie Bere:
-
265mm
-
Platen Size:
-
450*280mm
-
Opening Stroke:
-
190mm
-
Injection Rate:
-
105mm
|
USB cable making process
:https://youtu.be/eiecpUPhGP4
|
|
|
|
|||
Main Features
1)Straight screw ejected assembly.
2)Two(three)-phase temperature, ejected speed, backing pressure and screw speed is suitable for various plastic to confectioned.
3) Fixed bottom mold and loose top mold type is suitable for plastic injection molding of inserts and it is also equipped with an ejector for finshed products.
4)Low-pressure closed die assembly can protect the safety of die.
Machine Application
Vertical injection machine have the advantage of low noise, low energy consumption,high efficiency and long life time, it's widely apply to produce various terminal blocks, household appliances, consumer electronics, power tools, automotive dashboards, medical devices, open containers, connectors, cables,auto parts, Plug ,etc.
|
SPECIFICATIONS FOR

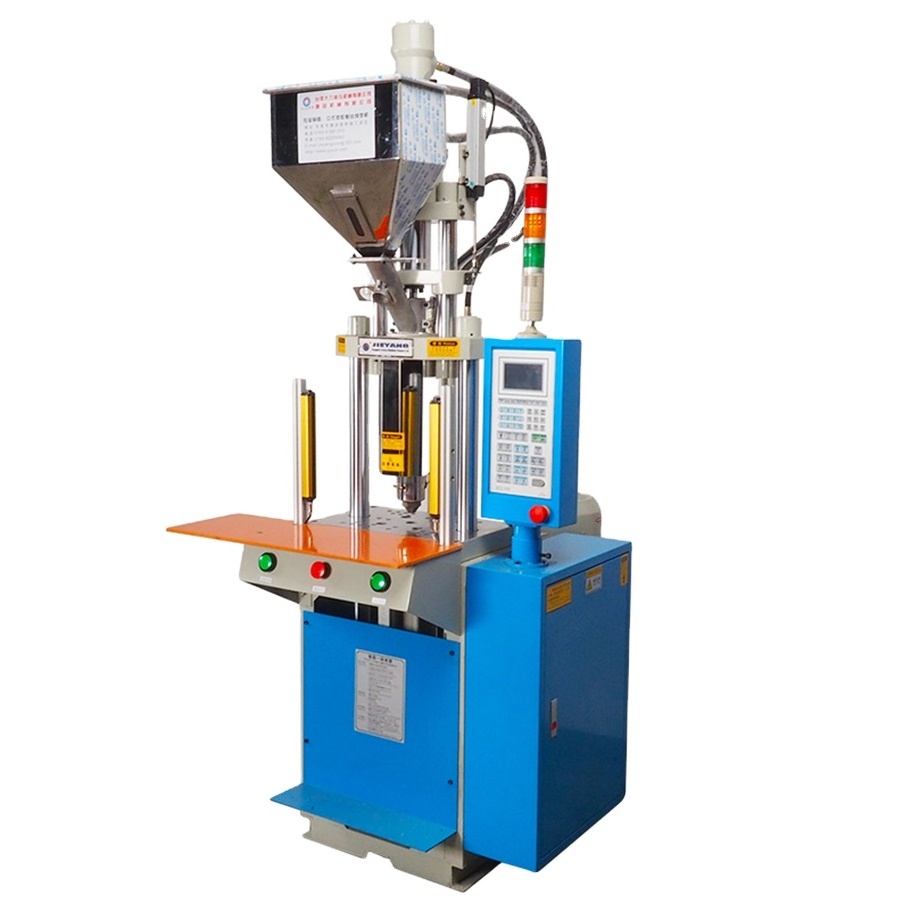

Small Plastic Injection Vertical Molding Machine 15T
(MODEL NO.:
JY-160S2,200ST
)
|
|
|
|
|
||||
|
|
|
|
JY-160S2
|
JY-200ST
|
||||
|
Injection Unit
|
Screw Diameter
|
mm
|
28
|
30
|
||||
|
|
Injection Pressure
|
kg/cm2
|
1019
|
896
|
||||
|
|
Theoretical Shot Volume
|
cm3
|
64.6
|
74
|
||||
|
|
Max. Shot Weight(PS)
|
g
|
58
|
67
|
||||
|
|
Saft Shot Weight(PS)
|
oz
|
2.0
|
2.4
|
||||
|
|
Max. Shot Weight(PS)
|
cm3/sec
|
40
|
76.7
|
||||
|
|
Injection Rate
|
mm
|
105
|
105
|
||||
|
|
Screw Speed Max.
|
rpm
|
0 - 215
|
0-200
|
||||
|
|
Number of Temperature Control
|
|
2
|
2
|
||||
|
Clamping Unit
|
Clamping Force
|
tons
|
15
|
30
|
||||
|
|
Platen Size
|
mm
|
450 x 280
|
480x310
|
||||
|
|
Distance Between Tie Bere
|
mm
|
265
|
295
|
||||
|
|
Min. Mold Height
|
mm
|
100/25
|
100/60
|
||||
|
|
Opening Stoke
|
mm
|
190
|
180
|
||||
|
|
Max. Open Daylight
|
mm
|
290/215
|
280/240
|
||||
|
|
Ejetor Force
|
tons
|
1.3
|
1.3
|
||||
|
|
Ejetor Stoke
|
mm
|
35
|
35
|
||||
|
Power/Heating Unit
|
Max. Hydaulic Pressure
|
kg/cm2
|
140
|
140
|
||||
|
|
Pump Output
|
l/min
|
17.5
|
29.5
|
||||
|
|
Oil Resservoir Capacity
|
l
|
80
|
100
|
||||
|
|
Cooling Water Consumption
|
l/hr
|
400 - 600
|
400-600
|
||||
|
|
Pump Motor Power
|
KW/HP
|
2.2 / 3HP
|
3.75/5.5HP
|
||||
|
|
Berrel Heating Power
|
KW
|
1.8
|
1.8
|
||||
|
|
Total Power
|
KW
|
4.2
|
5.5
|
||||
|
|
Machine Weight
|
tons
|
0.85
|
1
|
||||
|
|
Machine Dimension(LxWxH)
|
m
|
1.35 x 0.92 x 2.06
|
1.4x0.9x2.37
|
||||
|
|
Shipping Weight
|
tons
|
1.0
|
1.3
|
||||
|
|
Shipping Measures(LxWxH)
|
m
|
1.6 x 1.0 x 2.23
|
1.7x1.1x2.23
|
||||
Standard Specification:
1.Taiwan Oil Pressure Valve.
2.Taiwan TAIHUI Solenoid Valve.
3.PORCHESON PC Control Monitor.
4.Dongguan Low Noise Injection Molding Machine Special Motor.
5.Taiwan Yong Ling Pump.Da Li Hydraulic Motor.
6.Specific Alloy Tube(PA66+GF).
7.Taiwan FOTEK Proximity Switch.
8.Shih Lin Contactor Control Motor
9.Japan NOK Seal.
10.Each machine packed with 1 set tool
11.1 year warranty.
Q1: Are you a trading company or a manufactory?
A1: We own a factory ourselves, and we can assure the quality we manufactured.
Q2: What's your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you high quality machines with high quality afterservice. Also we have one year warranty of the spareparts, free of charge.
Q3: Why choose Jieyang Machinery Co.,Ltd.?
A3: Our products with more than 30% energy saving. Highest Cost effective environmentally. Excellent pre-sale and after-sale services.
