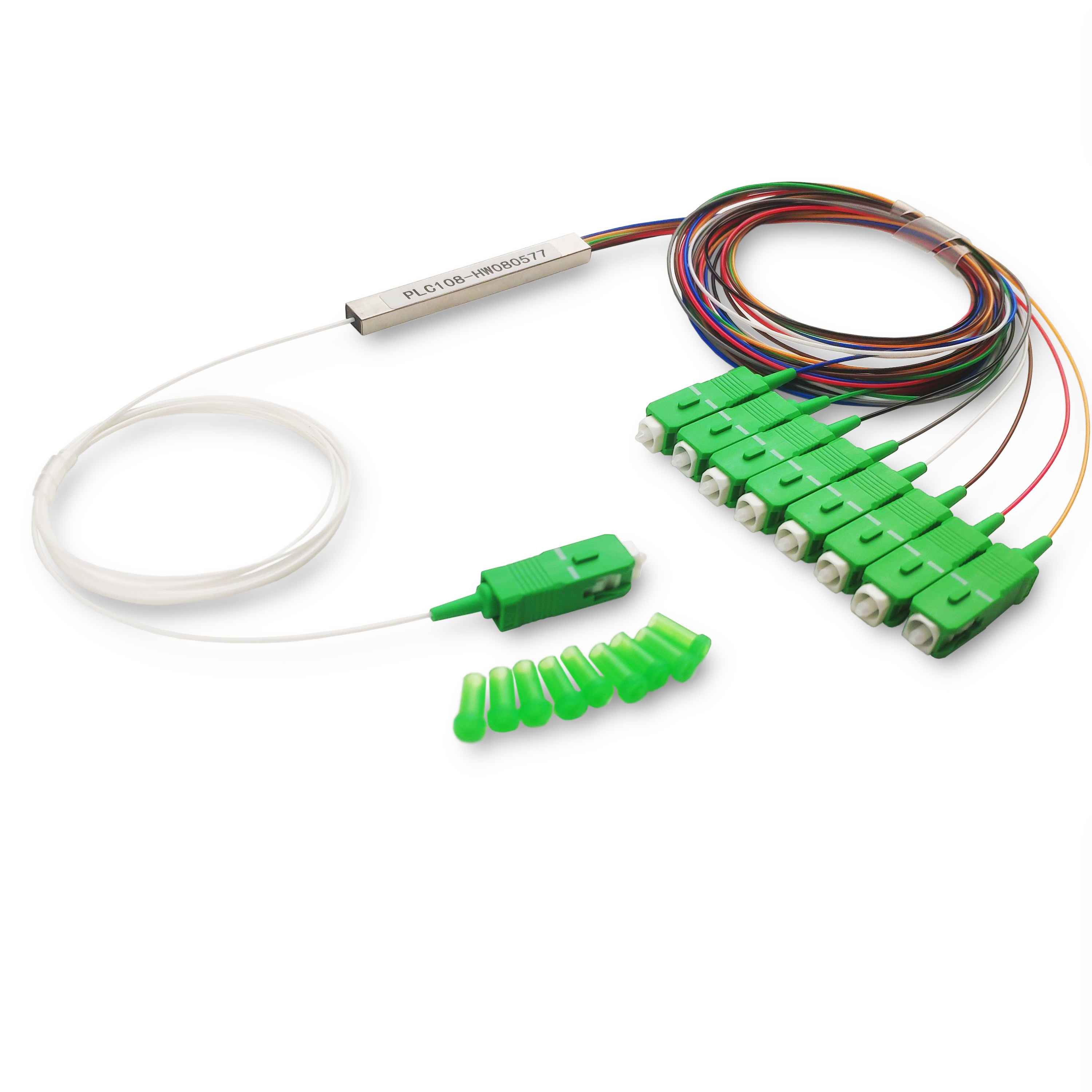

Bare fiber optical circulator steel tube 2 / 4 / 6 / 8 / 12 / 16 / 32 / 64 way fiber optic PLC splitter with/without connectors
1.Product Introduction
PLC splitter is based on a quartz substrate integrated waveguide optical power distribution device, has the advantages of small volume, the working wavelength range, high reliability, good light uniformity, etc characteristic, is especially suitable for the passive optical network ( EPON, BPON, GPON, etc ) connected local and terminal equipment and realize the optical signal device.
Bare PLC splitter is putting PLC splitter chip and input, output optical fiber array in a square metal tube, out with the diameter of 0.9mm or 250um bare fiber, fiber can be welded, can also be processing various types of an optical fiber connector.
Qingdao APT provides a whole series of 1xN and 2xN splitters that are tailored for specific applications. All products meet "YD/T1117-2001 All-optical fiber branching device technical conditions" "YD-T 2000-209 PLC Integrated optical devices PLC optical power splitter" etc, and are certified by TLC for network deployment.
2. Performance and Technical parameter
| Fiber optic PLC splitter technical specifications | |||||||
| Wavelength(nm) | 1260-1650 | ||||||
| Free Sample | YES | ||||||
| Material | PVC;ABS | ||||||
| Design | OEM & ODM | ||||||
| Specifications |
A (2.4.8 port) : 60L*7W*4H mm
B (16 port ) : 60L*12W*4H mm C (32 port ) : 80L*20W*6H mm |
||||||
| Connectors |
FC, SC, ST , LC, LC/APC, SC/APC, MU and FC/APC fiber optic connectors are available |
||||||
| Parameters | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 1x128 |
| Insertion Loss (dB) | ≤4.2 | ≤7.4 | ≤10.7 | ≤13.9 | ≤17.2 | ≤21.5 | ≤24 |
| PDL (dB) | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.5 |
| Uniformity (dB) | ≤0.6 | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.5 | ≤2.0 | ≤2.0 |
| Return Loss (dB) | ≥50 | ||||||
| Directivity (dB) | ≥55 | ||||||
|
Temperature Range (°C) |
-40~+75 | ||||||
|
Storage Temperature (°C) |
-40~+85 | ||||||
|
Types |
1*2,1*4,1*8,1*16,1*32,1*64(with/without connectors) 2*2,2*4,2*8,2*16,2*32,2*64(with/without connectors) |
||||||
NOTE: The above parameter is for splitter with connector, if w/o connector, insertion loss will reduce by 0.2dB.
3.Features
1)Low insertion loss
2)Low PDL
3)Wide Operating Wavelength
4)Good channel-to-channel uniformity
5)Compact design
6)High reliability and stability
4.Application
1).FTTX Systems
2).PON Networks
3).CATV Links
4). Optical Signal Distribution
More items, please click to contact our sales!
