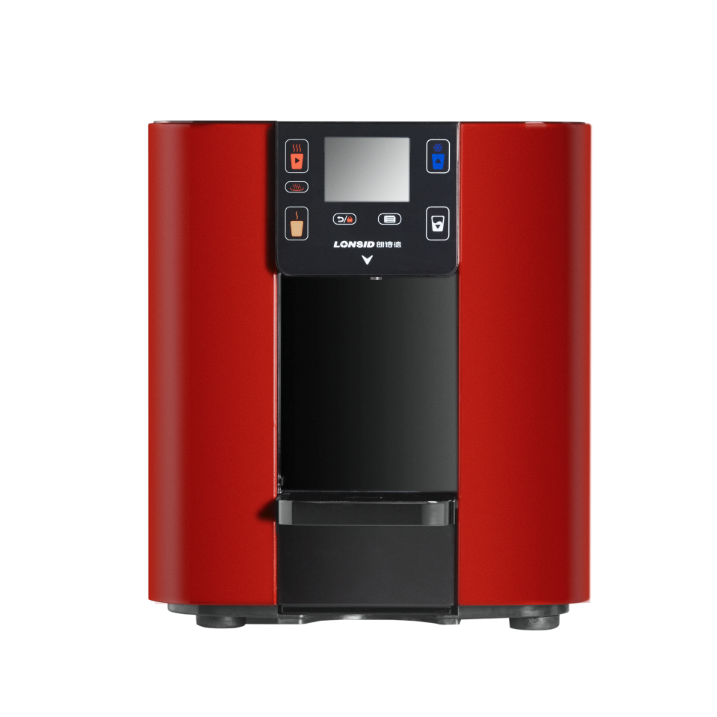

Compact Bottleless Filtered Water Dispenser New Launched Hot and Cold Mini Small Slim Electric Plastic CB Desktop Lonsid or OEM

Compact Bottleless Filtered Water Dispenser New Launched Hot and Cold Mini Small Slim Electric Plastic CB Desktop Lonsid or OEM

FOB Reference Price: Get Latest Price

≥50 Sets

US $308

≥500 Sets

US $298

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Application:: Hotel, Household

Power Source:: Electric

Place of Origin:: Zhejiang, China

Brand Name:: Lonsid or OEM

Model Number:: GR320RB

Dimensions (L x W x H (Inches):: 360x415x390(mm)

Power (W):: 1700

Voltage (V):: 220

Function:: Heating, cooling, purifying

Rated Frequency:: 50Hz

Rated Power:: 1700W

Inlet Water Pressure:: 0.1MPa--0.6MPa

NET WEIGHT:: 14KG

Filter rate:: 0.5 micron

Heating Capacity:: 15L/H

Cooling Capacity:: 5L/H

Product Size:: 30*37*34cm

Certification:: CB

Quick Details

After-sales Service Provided:: None

Warranty:: 1 Year

Type:: Hot & Cold

Application:: Hotel, Household

Power Source:: Electric

Place of Origin:: Zhejiang, China

Brand Name:: Lonsid or OEM

Model Number:: GR320RB

Dimensions (L x W x H (Inches):: 360x415x390(mm)

Power (W):: 1700

Voltage (V):: 220

Function:: Heating, cooling, purifying

Rated Frequency:: 50Hz

Rated Power:: 1700W

Inlet Water Pressure:: 0.1MPa--0.6MPa

NET WEIGHT:: 14KG

Filter rate:: 0.5 micron

Heating Capacity:: 15L/H

Cooling Capacity:: 5L/H

Product Size:: 30*37*34cm

Certification:: CB

Product Description

Product Name	Mini Small Slim Compact bottleless Filtered Water Dispenser cooler
Material	Plastic
Function	Heating, cooling, purifying
Power Source	Electric

Brief Introduction of the appearance

1. Touch Panel 2. Cover of the Drip Tray

3. Drip Tray 4. 2.8'' TFT LCD screen

5. Faucet 6. Panel

7. Drain Tray 8. Decorative Panel

9. Condenser 10. Heating Switch

11. Water Inlet Whole

12. Switch Panel 13. Fan

14. Fuse 15. Power Switch

16. Power Cord

Touch Panel Introductoin

1. Day-Month-Year 2. Child Lock Status Icon

3. UV Light Status Icon

4. Hot Key and Select Key

5. Heating and hot water temperature icon

6. Extra-hot Key

7. Return key and child lock button

8. Mixed water keys 9. Logo

10. Clock 11. Automatic Switcher icon

12. Power-saving mode icon

13. Cold water key and select key

14. Cooling and coldwater temperature icon

15. Set key and enter key

16. One cup of water key and select key

17. Water outlet indicator light

Quality Guarantee:

We provide 1 year warranty of product and 1% spare parts.

Heating Power	1500W	Cooling intake quantity	R134/45g
Cooling Power	1000W	Pressure of inlet water	1.0 ~ 3.5Kg/cm 2
Heating Capacity	15L/h ≥ 90°C	Packing dimension	360x440x415(mm)
Cooling Capacity	3L/h ≤10°C	Loading Quantity(20’/40’/40H	410/825/990 pcs

Installation

1. Overview:

Please install the machine in a place of cool, ventilation and soundness, but away from hot objects. Keep the unit 10cm(4'') away from the wall and leave enouth space for both sides of the unit. In order to insure the water quality, please use our company original setting.

2. Water Supply Connection:

Please keep the machine in the place nearby the water supply(not more than 3 Meters, the water pressure should be configured with between 0.1 MPa and 0.6 MPa.) Please make sure there are accessories ball valve, inlet 3 ways, elbow, 3 meters two way PE water pipe. It must be installed ball valve between the machine and the water pipe and make sure that is easily be maintained.

Twist the ball valve 12-15 rounds thread seal tape(to sure air tightness), connect it on inlet 3 ways, at last connect two way PE water pipe to inlet 3 ways.(picture 2)

Operation

1. Initially Connect with Electric Supply

Once connected to power, screen displays the company logo, means it is openning unit. Interface displayshown as below, after entering into initial adding water interface, operate as per notice on the interface, add water to both hot tank and cold tank.(You need to check if the water added fully by touching the cold and hot button, if there is water flowing out of hot and cold water outlet mouth, it means OK.)

2. Attentions Before Using

First time to use the unit, please check all water pipe fittings and valve connections, making sure they are well connectd. After tunning on the unit, firtly please release 10-15L water, and then pusing the hot and cold buttons to see if there's water running out.

Safely Warnings: New machine(or cleaned) firt time to use, please ensure that there is water flowing out from faucet in hot and cold water outlet mouth. Only after that ou can start use the heating functoin. The heating system will not work if there is not enough water in hot tank.

Attentions

1. This machine is for indoor use, Please avoid it from direct sunlight. Placing it next to flammable materials is prohibited, please stay away from expensive high-end appliances placed, do not wash the unit or immerse the unit into water.

2. The unit uses 230VAC voltage, it should be used with a 10A fuse in the socket. Use and maintenance during the operation, use the safety of electrical equipment.

3. When using the unit for the first time, please ensure there is water flowing out, and then opening the heating function to avoid equipment damage.

4. The system provides safe and reliable drinking water, because the tank is not pressureized and hot tank with outlet of the hot water is directly connected no valves, so a little drop of water after getting water is normal phenomenon.

5. Because the unit can produce high temperature hot water, please against children in the case of unattended use of the machine.

6. The unit is not designed for disabilities or children, or the men lack of experience and common sense, unless there is a person responsible for supervision or guidance on the use of the unit.

7. The machine maintenance and service by professionals, the company and dealers are not liable for any improper use or neglect as a result of direct or indirect responsibility for the loss

8. If a long vacation or business trip without the use of machinery, in order to be safe, turn the unit off and water, once again tured on, please turn on the water to ensure water quantity 10-15L
