- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
SCW15405
-
Dimension:
-
15 Inch
-
Storage:
-
NO
-
SNR:
-
NO
-
Output Power:
-
600W
-
Format:
-
NO
-
Power:
-
600W
-
Frequency Range:
-
36-2800HZ
-
Impedance:
-
8ohm
-
Magnet:
-
125oz
Quick Details
-
Warranty:
-
3months-1year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DASN
-
Model Number:
-
SCW15405
-
Dimension:
-
15 Inch
-
Storage:
-
NO
-
SNR:
-
NO
-
Output Power:
-
600W
-
Format:
-
NO
-
Power:
-
600W
-
Frequency Range:
-
36-2800HZ
-
Impedance:
-
8ohm
-
Magnet:
-
125oz

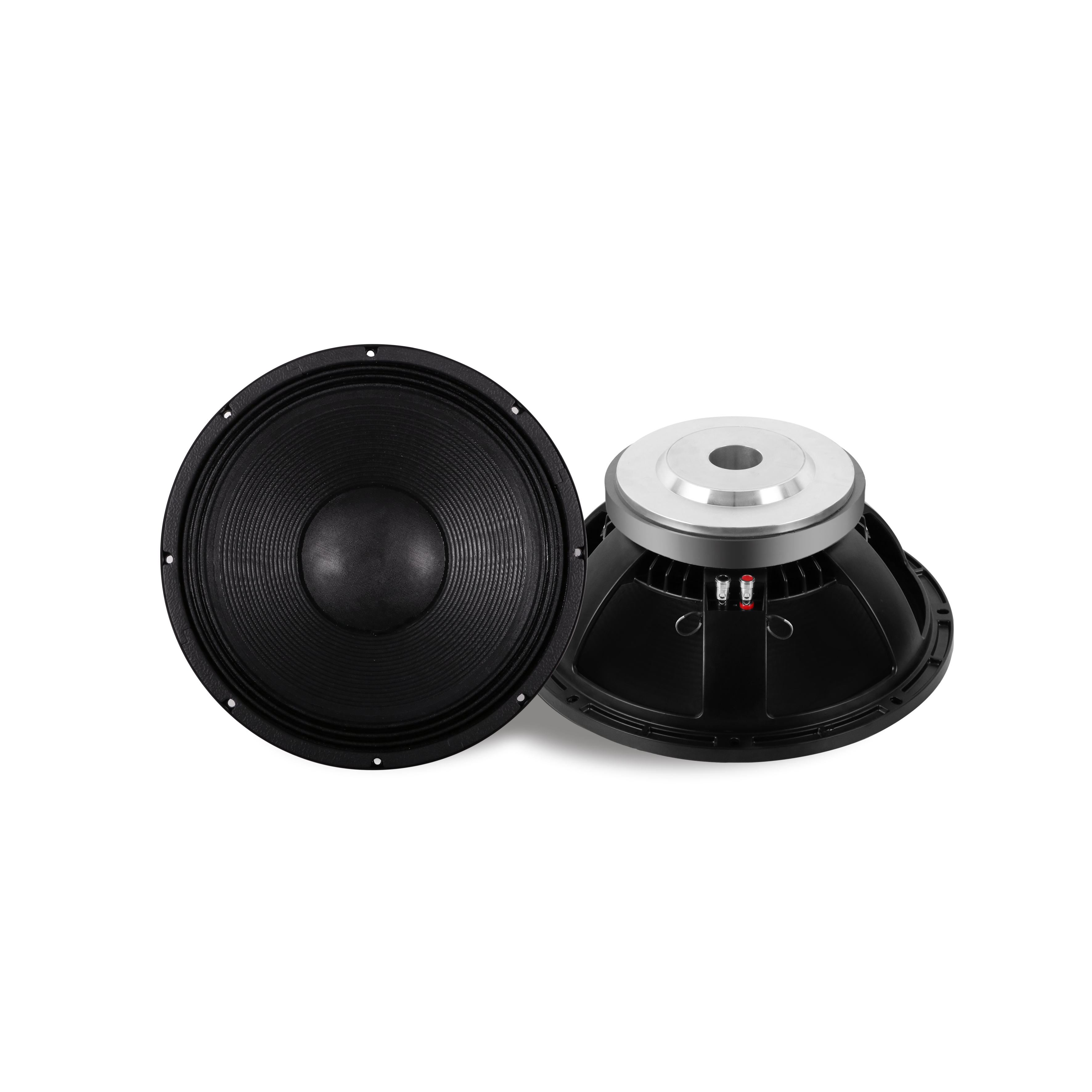

Product Description
|
Model Number
|
SCW15405
|
|
|
Brand Name
|
DASN
|
|
|
MECHANICAL SPECIFICATIONS
|
|
|
|
Overall diameter
|
395mm
|
|
|
Bolt circle diameter
|
373mm
|
|
|
Baffle cutout diameter
|
353mm
|
|
|
Depth
|
175mm
|
|
|
Flange and Gasket
|
16mm
|
|
|
Net weight
|
11 kg
|
|
|
Shipping box (single carton box)
|
420x415x200mm
|
|
|
ELECTRICAL SPECIFICATIONS
|
|
|
|
Nominal diameter
|
15 inch
|
|
|
Nominal impedance
|
8 Ω
|
|
|
DC resistance
|
5.3 Ω
|
|
|
Nominal power handling
|
600W
|
|
|
Continuous power handling
|
1200W
|
|
|
Sensitivity (1W/1m)
|
95±2dB
|
|
|
Frequency range (-10dB max)
|
36-2800 Hz
|
|
|
Voice coil diameter
|
4"/100mm
|
|
|
Voice coil materia
|
Inside/Outside Cu
|
|
|
Former material
|
TIL
|
|
|
Winding depth
|
25mm
|
|
|
T yoke
|
10mm
|
|
|
Plate
|
10mm
|
|
|
Magnet
|
125 OZ
|
|
|
Basket
|
Cast aluminium
|
|
|
THIELE & SMALL PARAMETERS
|
|
|
|
Fo
|
36Hz
|
|
|
Revc
|
5.3Ω
|
|
|
Sd
|
855.3 cm ^2
|
|
|
Vas
|
146.8L
|
|
|
Cms
|
0.14mm/N
|
|
|
Mms
|
141g
|
|
|
Bl
|
22.29Tm
|
|
|
Qms
|
12.19
|
|
|
Qes
|
0.34
|
|
|
Qts
|
0.33
|
|
|
SPL
|
94.61dB
|
|
|
Le1
|
1.39mH
|
|
|
Le2
|
2.98mH
|
|
|
Rp
|
10.79ohms
|
|
Packing & Delivery
Packaging Details：Conventional Packing(1 Unit/Poly Bag,1 Poly Bag/Master Carton Box. With Foam Padding For Protection).
