Quick Details
-
Model Number:
-
SW40-01
-
Max. Current:
-
21A
-
Max. Working Pressure:
-
50psi
-
Mechanical Life:
-
6,000 cycles pressure switch
-
Electrical Life:
-
50,0000 times cycles
-
Contact Form:
-
SPDT
-
Material Body:
-
Thermosetting plastic
-
Contact material:
-
pure silver
-
Certification:
-
TUV,CCC,CE,RoHS,VDE,CQC, ce
-
Packing:
-
sealed micro switch
-
Lever:
-
various lever
Quick Details
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Taiwan, China
-
Brand Name:
-
SWITECH
-
Model Number:
-
SW40-01
-
Max. Current:
-
21A
-
Max. Working Pressure:
-
50psi
-
Mechanical Life:
-
6,000 cycles pressure switch
-
Electrical Life:
-
50,0000 times cycles
-
Contact Form:
-
SPDT
-
Material Body:
-
Thermosetting plastic
-
Contact material:
-
pure silver
-
Certification:
-
TUV,CCC,CE,RoHS,VDE,CQC, ce
-
Packing:
-
sealed micro switch
-
Lever:
-
various lever
Product Description
|
Specification & Drawing
|
|
|
|
|||
|
Name
|

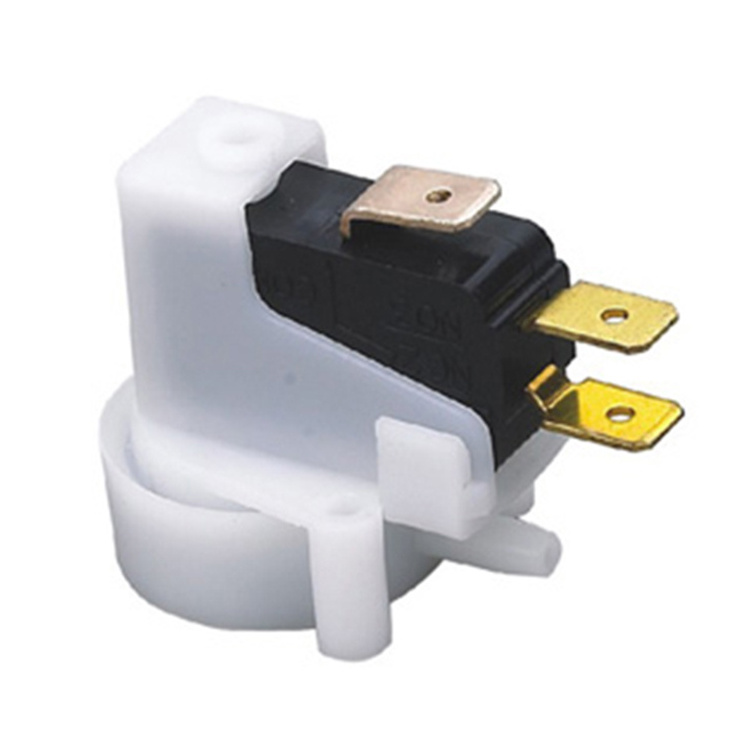

high current pressure switch used swimming pool
|
|
|
|||
|
Model
|
SW40-01
|
|
|
|||
|
Rating
|
21A/250VAC
|
|
|
|||
|
Pressure setting range
|
0.25~50psi
|
|
|
|||
|
maximum working pressure
|
50psi
|
|
|
|||
|
Working temperature
|
-10℃~+85℃
|
|
|
|||
|
Operation life
|
30,000 cycles
|
|
|
|||
|
Terminal form
|
6.3mm or 4.8mm Plug terminal
|
|
|
|||
|
Leakage
|
0.00000051 in3/s
|
|
|
|||
|
unit conversion
|
1 kgf/cm²=14.2psi 1bar=14.5psi
|
|
|
|||
|
Material & Color
|
|
|
|
nozzle
|
brass
|
|
|
diaphragm
|
stainless steel
|
|
|
contact
|
fine silver
|
|
