Quick Details
-
Light Source:
-
LED
-
Place of Origin:
-
Guangdong, China
-
Color:
-
red
-
Weight:
-
2KG
-
Working mode:
-
Steady-burning mode or Flash mode(20-60times/minute)
-
Overall Size:
-
220 by 233
-
Light Intensity:
-
≥ 32.5cd(Flash mode)
Quick Details
-
Lamp Power(W):
-
3
-
Color Temperature(CCT):
-
Other
-
Lamp Body Material:
-
Aluminum Alloy
-
Light Source:
-
LED
-
Place of Origin:
-
Guangdong, China
-
Color:
-
red
-
Weight:
-
2KG
-
Working mode:
-
Steady-burning mode or Flash mode(20-60times/minute)
-
Overall Size:
-
220 by 233
-
Light Intensity:
-
≥ 32.5cd(Flash mode)
Packaging & Delivery
Packaging Details: paper carton 1 piece/box
3-15 days
Delivery Detail: Shipped in 15 days after payment
Specification
Aircraft warning light. LED airport lamp. medium intensity. red Steady-burning obstruction beacon. compliant with ICAO,FAA,CAAC
Applications
Scope of Application

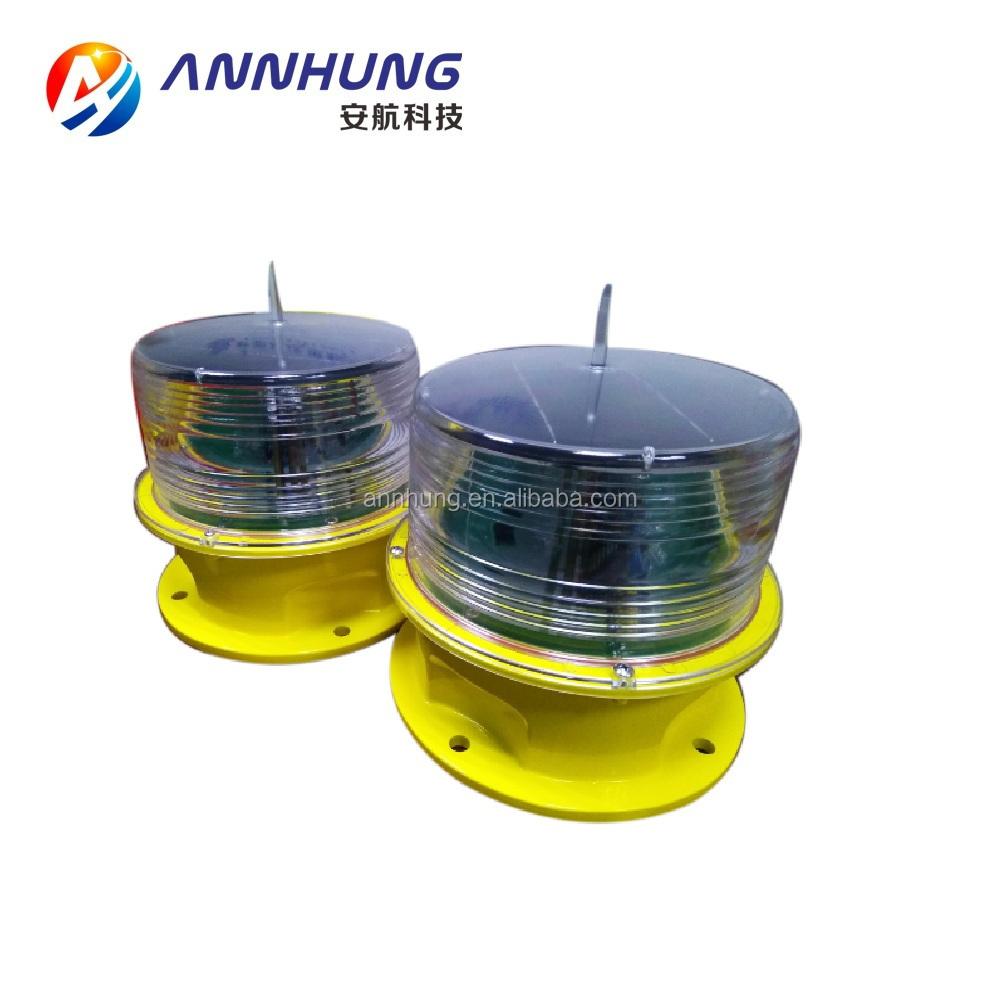

AH-LS/B Low-intensity Solar-Powered Aviation Obstruction Light can be provided with power supply without power transmission cables by solar power, so it is suitable for those locations, Electric Tower, High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc especially which are hard to lay the cable or lack of power supply as well as those facilities which have high requirements on lightning protection.
Product Description
Function
AH-LS/B Low-intensity Single Solar-Powered Aviation Light solar panel act as a photocell. It can work alone automatically at night by photocell when ambient brightness is lower than 500cd/m2 and close during the day.
Parameter
| Description | Parameter |
| Mode | AH-LS/B |
| Standard | ICAO FAA L-810 type B |
| Visible distance | 3.2KM |
| Working mode | Flashing mode or Steady-burning mode |
| Light source | LED |
| Light intensity | >32cd |
| Vertical degree | >10° |
| Horizontal Degree | 360° |
| Service life of LED | 100, 000hours |
| Solar panel: | Monocrystalline silicon, 4W |
| Battery | lithium iron phosphate, 6.4V, 6Ah |
| Autonomy | At least 5days (Option 20days) |
| Overall Size (mm) | Φ220 × 233 |
| Installation Size | Φ190 × M10 |
| Weight | 2Kg |
| Emitting Color | Red, Green, Yellow (Amber), Blue or White |
| Ambient Temperature | -55℃~+60℃ |
| Wind load | 80m/s |
| Control Way | ON/OFF by solar panel as photocell. Light can work at night automatically by photocell. |
| Optional function | Remote control, charge port |
Advantages
1.International advanced solar panel reaching at least 10 years service life.
2.Comprehensive protection in voltage short, over-voltage, floating Charge and temperature.
3.Built-in Solar Panel.
4.Strong corrosion resistance, Rain and Snow, Shock and Vibrations protection and UV protection.
5. International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
6. Clean, renewable, green and reliable energy source
7.Dusk-to-dawn operation
8. At least 5 days autonomy (optional 20days).
9. Recyclable batteries with the lightest environmental.
10. Small volume especially being suitable for Telecom Tower and Electric installation way.
Compliance
Low-intensity Type B FAA L-810
Low-intensity Solar-Powered Aviation Obstruction Light ICAO Annex 14 Volume 1,'Aerodrome Design and Operations’ Forth edition July 2004,table6.3
