Quick Details
-
Power:
-
15kw
-
Min. Lifting Height:
-
1.14m
-
Table Size:
-
4.5*1.5m
-
Overall Dimensions:
-
standard
-
Weight:
-
5000 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Motor power:
-
380v Etc)
-
Lift Drive:
-
Hydraclic
-
Keywords:
-
Fixed Scissor Lift Platform
-
Color:
-
Red, blue, green or customer requirements
-
Material:
-
High-duty Steel Structure
-
Voltage:
-
Local Voltage
-
Lifting speed:
-
3-6m/min
-
Feature:
-
Easy Operation Safety Convenience
-
Certification:
-
CE certificate
Quick Details
-
Warranty:
-
12 month
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WL
-
Power:
-
15kw
-
Min. Lifting Height:
-
1.14m
-
Table Size:
-
4.5*1.5m
-
Overall Dimensions:
-
standard
-
Weight:
-
5000 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Motor power:
-
380v Etc)
-
Lift Drive:
-
Hydraclic
-
Keywords:
-
Fixed Scissor Lift Platform
-
Color:
-
Red, blue, green or customer requirements
-
Material:
-
High-duty Steel Structure
-
Voltage:
-
Local Voltage
-
Lifting speed:
-
3-6m/min
-
Feature:
-
Easy Operation Safety Convenience
-
Certification:
-
CE certificate

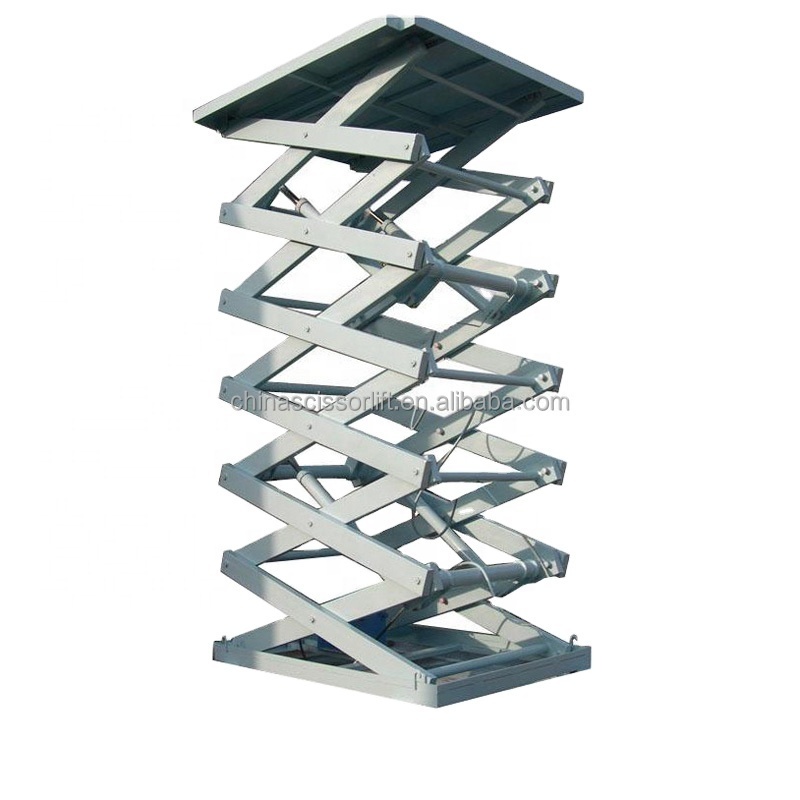

Hydraulic Stationary Lift
Product Description
Specification
|
Model
|
Table size
|
Capacity
|
Net lifting height
|
Min height
|
Total dimension
|
|
WLG0.3-1
|
1400*750mm
|
0.3T
|
2.9m
|
710mm
|
1400*750*710mm
|
|
WLG0.3-2
|
1800*1200mm
|
0.3T
|
5m
|
760mm
|
1800*1200*760mm
|
|
WLG1.5
|
2400*1600mm
|
1.5T
|
8.5m
|
1450mm
|
2400*1600*1450mm
|
|
WLG1-1
|
1200*1200mm
|
1T
|
1.5m
|
560mm
|
1200*1200*560mm
|
|
WLG1-2
|
2000*1500mm
|
1T
|
1.5m
|
520mm
|
2000*1500*520mm
|
|
WLG1-3
|
2000*2000mm
|
1T
|
4.2m
|
850mm
|
2000*2000*850mm
|
|
WLG1-4
|
3000*2400mm
|
1T
|
5.8m
|
770mm
|
3000*2400*770mm
|
|
WLG2.5
|
4500*2200mm
|
2.5T
|
6m
|
1000mm
|
4500*2200*1000mm
|
|
WLG2-1
|
3000*1300mm
|
2T
|
2m
|
600mm
|
3000*1300*600mm
|
|
WLG2-2
|
2400*2000mm
|
2T
|
3.5m
|
780mm
|
2400*2000*780mm
|
|
WLG2-3
|
1600*1600mm
|
2T
|
4 m
|
670mm
|
1600*1600*670mm
|
|
WLG2-4
|
2800*2600mm
|
2T
|
4.5m
|
810mm
|
2800*2600*810mm
|
|
WLG2-5
|
2200*1500mm
|
2T
|
5m
|
1050mm
|
2200*1500*1050mm
|
|
WLG28
|
4000*3500mm
|
28T
|
1.9m
|
800mm
|
4000*3500*800mm
|
|
WLG3-1
|
2000*2000mm
|
3T
|
3.5m
|
800mm
|
2000*2000*800mm
|
|
WLG3-2
|
2500*1400mm
|
3T
|
7m
|
1250mm
|
2500*1400*1250mm
|
|
WLG3-3
|
3000*2500mm
|
3T
|
7m
|
1080mm
|
3000*2500*1080mm
|
|
WLG4
|
3200*1850mm
|
4T
|
1.65m
|
600mm
|
3200*1850*600mm
|
|
WLG5
|
2800*2000mm
|
5T
|
5m
|
1020mm
|
2800*2000*1020mm
|
Or you can contact us!
Our company can fully meet your customized requirements!
Details Images
The products produced by our company are excellent in detail and can stand inspection.
