Quick Details
-
Size:
-
1U
-
Power:
-
AC 90V~264V
-
Weight:
-
7kg
-
imensions:
-
43mm*429mm* 307mm chassis
-
Warranty:
-
3 Years
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Model Number:
-
FS8500, FC Switch FS8500, 16Gb
-
Place of Origin:
-
Beijing, China
-
Size:
-
1U
-
Power:
-
AC 90V~264V
-
Weight:
-
7kg
-
imensions:
-
43mm*429mm* 307mm chassis
-
Warranty:
-
3 Years
Switch Rate product

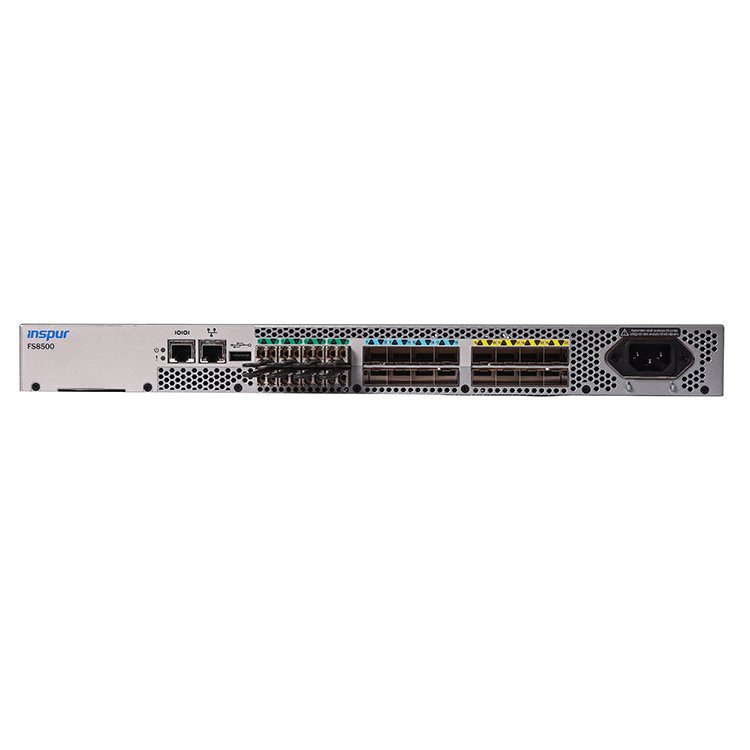

Inspur FS8500 series is a 32Gb fiber channel switch for small independent SAN. It adopts a low-cost, high-performance scalable design. It can start with 8 device ports and gradually expand to 24 ports on a single machine according to business needs. It aims to reduce the cost of enterprise SAN, improve the ease of use of IT architecture and simplify management. It is an economical choice in the environment where network expansion is required.
| Features | FS8500 24 Port 32G FC Switch |
| Ports | 24*32Gbps Ports (8 Ports upgrate to 16 Ports/24 Ports) |
| 32Gb,16Gb multiple protocol | |
| Adaptive Trunking, Smart path selection port type | |
| Port type: E_Port,F_Port,M_Port,D_Port,N_Port | |
| Performance | Fabric Port Transport Speed |
| 32/16Gbps All ports Adaptive | |
| Fabric Architecture delay ≤900ns(Including FEC) | |
| Cut-through routing Fabric point-to-point bandwidth aggregate bandwidth | |
| Single machine supports up to 768Gbps, full duplex | |
| non-blocking structure | |
| SW | Visual interface: |
| All key components LED indicators, web-based management interface and fault location indication Various management: | |
| Telnet,HTTP,SNMP v1/v3( FE M I B,FC Management MIB );Auditing, syslog, change management tracking; Matching SMI-S standard, SMI-S scripting toolset, management domain; Trial licenses for selected plugin features | |
| Power | AC 90V~264V,Maximum input 2.2A |
| TDP | 55.83W; Up to 76.52W when all 24 ports with 32Gb Module |
| Dimension | 1U,43mm (H) * 429mm (W) * 307mm (D) |
| Weight | Min weight 5.75kg,when without SFP+ |
