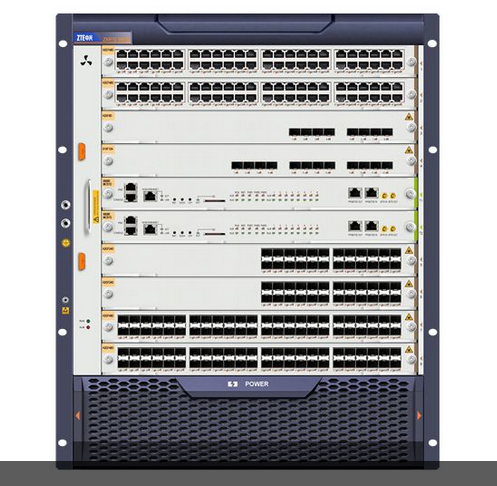

ZTE ZXR10 8900E Series Core Switch
ZXR10 8905E
The ZXR10 8900E Series switch is high-end modular switch featuring big switching capacity, L2/L3/MPLS service capability, high-performance, superior reliability and enhanced security. The ZXR10 8900E Series switch is designed for core and aggregation layer of next-generation campus network scenario. The ZXR10 8900E Series switch allows fast, non-blocking switching and has full IPv6 feature. In addition, The ZXR10 8900E Series switch offers a variety of technologies to fulfill better reliability, easy maintenance and low power consumption: VSC2.0(Virtual Switch Cluster), BFD (Bi-directional Forwarding Detection), Zero-touch provisioning, IEEE 802.3az Energy Efficient Ethernet (EEE) etc , which help customer to build future-oriented low TCO(Total Cost of Ownership) networks.
The ZXR10 8900E Series switch uses advanced hardware architecture and modular design, up to 10.24Tbps wire-speed switching capacity with high capacity service cards including: 48 x10GE interfaces, 8x 40GE interfaces, and 4x100GE interfaces.
Coupled with distributed ROSng Software Platform, the ZXR10 8900E Series switch deliversthe followingproducts:
l 8902E: 2 interface board slots, 2 control board slots and 2 power supply module slots. 4RU, side-to-side airflow.
l 8905E: 5 interface board slots, 2 control switching slots and 3 power module slots. 10RU, side-to-side airflow.
l 8908E: 8 interface board slots, 2 control switching slots and 3 power module slots. 13RU, side-to-side airflow.
l 8912E: 12 interface board slots, 2 control switching slots and 3 power module slots. 17RU, side-to-side airflow.
l 8908E-H: 8 interface board slots, 2 control board slots, 4 independent switching fabric board slots and 3 power module slots. 17RU, side-to-side airflow.
l 8912E-H: 12 interface board slots, 2 control board slots, 4 independent switching fabric board slots and 3 power module slots. 21RU, side-to-side airflow.
The System Specification of the ZXR10 8900E Series switch:
|
Parameters |
8902E |
89 05 E |
8908E |
89 12 E |
890 8 E -H |
89 1 2E -H |
|
|
Height |
4RU |
10RU |
13RU |
17RU |
17RU |
21RU |
|
|
Dimensions (H*W*D , mm ) |
175*442* 420 |
442*442* 446 |
575*442* 446 |
753*442* 446 |
753*442* 446 |
928*442* 446 |
|
|
Switching Capacity |
960Gbps |
4.8Tbps |
7.68Tbps |
7.68Tbps |
10.24Tbps |
10.24Tbps |
|
|
Packet Forwarding Rate |
720Mpps |
3,600Mpps |
5,760Mpps |
5,760Mpps |
7,680Mpps |
7,680Mpps |
|
|
Number of Line Card Slots |
2 |
5 |
8 |
12 |
8 |
12 |
|
|
Number of Main Control Slots |
2 |
2 |
2 |
2 |
2 |
2 |
|
|
Number of Switching Card Slots |
N/A |
N/A |
N/A |
N/A |
4(3+1) |
4(3+1) |
|
|
Interface Type |
FE/GE RJ45; GE SFP; 10GE SFP+; 40GE CFP; 40GE QSFP+; 100GE CFP2 |
||||||
