Quick Details
-
Material:
-
stainless steel
-
Working Voltage:
-
12V DC
-
Current draw:
-
(start) 960mA, (standby) 180mA
-
Autolock Time Delay:
-
0,3,6,9sec
-
Weight:
-
0.68kg
-
Size:
-
192*25*37mm
-
Holding Force:
-
1000Kg
-
Surface Temp:
-
Low Temperature
-
Suitable for:
-
wooden doors, glass doors, metal doors, fireproof doors
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ACM
-
Product Name:
-
Fail Safe Sturdiness Electronic Bolt
-
Material:
-
stainless steel
-
Working Voltage:
-
12V DC
-
Current draw:
-
(start) 960mA, (standby) 180mA
-
Autolock Time Delay:
-
0,3,6,9sec
-
Weight:
-
0.68kg
-
Size:
-
192*25*37mm
-
Holding Force:
-
1000Kg
-
Surface Temp:
-
Low Temperature
-
Suitable for:
-
wooden doors, glass doors, metal doors, fireproof doors
Product Description

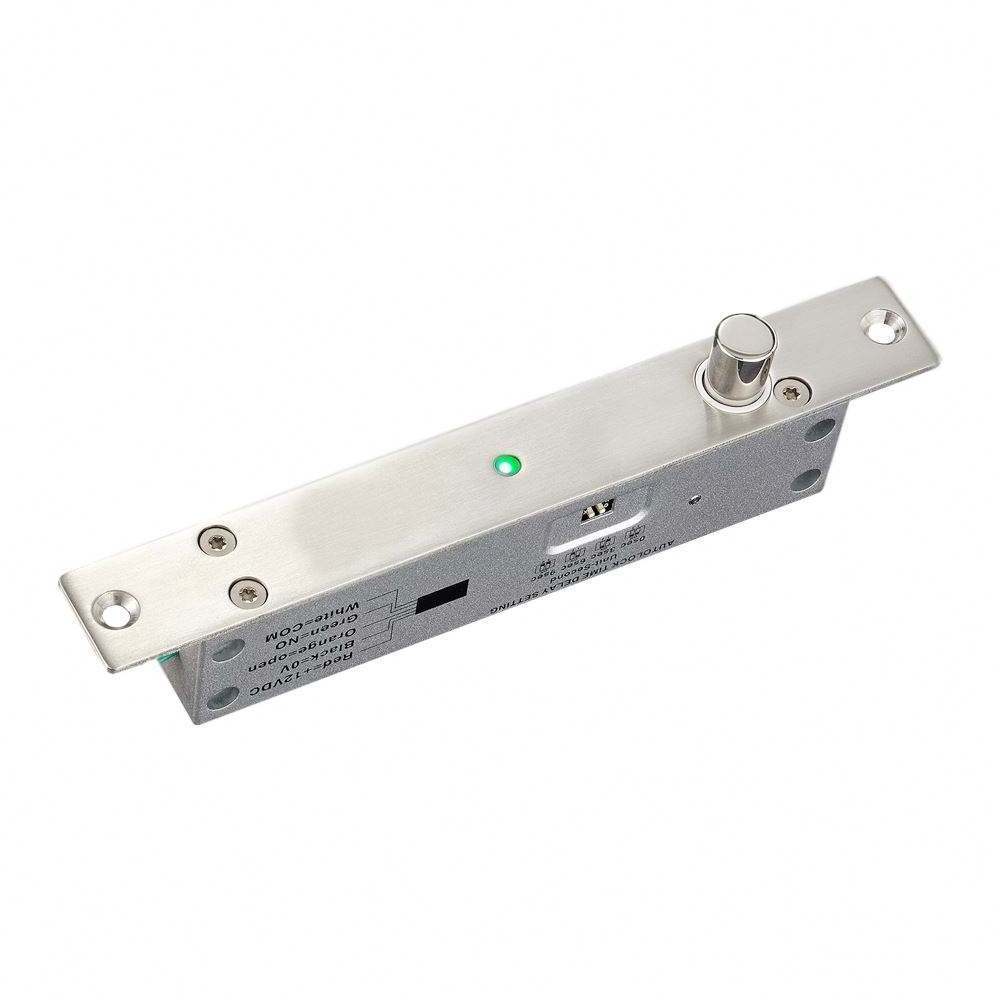

Electric Strike Door Lock Access Control System NC NO Fail Safe Secure Mortise Lock Electronic Deadbolt
It is an all-metal construction electric bolt .with 1000kg holding force. The bolt is made of 304 stainless steel solid bar by CNC lathe and with anti-burglar design to meet the standard of special security requirements. The security type of this Bolt is Unlocked when energized.It can be worked in the temperature of 60 ℃ or -40 ℃ below zero based on the all-metal linkage parts. With the multiple designs of durable magnetic valve, special photoelectric control system, ultra-low temperature and power consumption design, anti-prizing and smart circuit.
|
Product Parameter
|
Parameter Description
|
|
|
||
|
Feature
|
Fail Secure
|
|
|
||
|
Face Plate
|
192Lx25WX37H(mm)
|
|
|
||
|
Strike
|
90Lx25Wx2H(mm)
|
|
|
||
|
Bolt
|
16mmDIA,stainless steel 13mm throw
|
|
|
||
|
Voltage
|
12VDC(24VDC need order)
|
|
|
||
|
Start Current
|
960mA
|
|
|
||
|
Standby Current
|
180mA
|
|
|
||
|
Autolock Time Delay
|
0,3,6,9sec
|
|
|
||
|
Solid Bolt Holding Force
|
1000Kg
|
|
|
||
|
Lock cylinder material
|
Stainless Steel
|
|
|
||
|
Face place material
|
kirsite
|
|
|
||
|
Suitable For
|
Wooden Door,Glass Door,Metal Door,PVC Door
|
|
|
||
|
Door statue signal output contact
|
NO/COM
|
|
|
||
