Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
BP
-
Model Number:
-
3.5 OD.
-
Product name:
-
round shaft helical piles
-
Helical Material:
-
ASTM A36 hot rolled plate
-
Surface treatment:
-
Hot Dipped Zinc Coating
-
Keyword:
-
Ground Screw Anchor Screw Pile
-
Application:
-
Building Construction
-
Size:
-
Customized Sizes
-
Packing:
-
Custom Packaging
-
Length:
-
Customized Length
-
Type:
-
OEM Service
-
Sample:
-
Availabe
Quick Details
-
System of Measurement:
-
INCH
-
Material:
-
Steel
-
Capacity:
-
strong
-
Place of Origin:
-
China
-
Brand Name:
-
BP
-
Model Number:
-
3.5 OD.
-
Product name:
-
round shaft helical piles
-
Helical Material:
-
ASTM A36 hot rolled plate
-
Surface treatment:
-
Hot Dipped Zinc Coating
-
Keyword:
-
Ground Screw Anchor Screw Pile
-
Application:
-
Building Construction
-
Size:
-
Customized Sizes
-
Packing:
-
Custom Packaging
-
Length:
-
Customized Length
-
Type:
-
OEM Service
-
Sample:
-
Availabe
Round Shaft Helical Piles
Helical piles , also known as anchors, piers or screw piles, are deep foundation solutions used to secure new or repair existing foundations. Due to their design and ease to install, they are most commonly used whenever soil conditions prevent standard foundation solutions. Instead of requiring large excavation work, they thread into the ground. This minimizes installation time, requires little soil disturbance, and most importantly transfers the weight of the structure to load bearing soil.
Helical piles have been used all over the world to secure residential and commercial buildings. Originally designed for lighthouses they are widely used for many other deep foundation applications.
Item details:
- Shaft material: Seamless high tensile pipe, conforms to ASTM A500 GRADE B
- Helices material: ASTM A36 Hot rolled plate
- Corrosion protection conform to ASTM A153 standard for hot dipped zinc coating
- Leading edge of Helices beveled 45 degrees
- Greater Section Modulus Strength to resist Twisting and Deflection
- Greater Load Capacities
|
Specifications
|
|||||
|
Shaft Size (inch) |
Wall Thick(inch) |
Helix Thick (inch) |
Lead Length (ft) |
Helix Size (inch) |
Extension Length (ft) |
|
2.875 OD. |
0.262 |
3/8 or 1/2 |
3ft/5ft/7ft/10ft |
8/10/12/14 |
3ft/5ft/7ft/10ft |
|
3.00 OD. |
0.238 |
3/8 or 1/2 |
3ft/5ft/7ft/10ft |
8/10/12/14 |
3ft/5ft/7ft/10ft |
|
3.50 OD. |
0.254/0.300 |
3/8 or 1/2 |
3ft/5ft/7ft/10ft |
8/10/12/14 |
3ft/5ft/7ft/10ft |
|
4.50 OD. |
0.290/0.337 |
3/8 or 1/2 |
5ft/7ft/10ft/12ft |
8/10/12/14 |
3ft/5ft/7ft/10ft |
|
5.50 OD. |
0.362 |
3/8 or 1/2 |
5ft/7ft/10ft/12ft |
8/10/12/14 |
3ft/5ft/7ft/10ft |
|
6.625 OD. |
0.562 |
3/8 or 1/2 |
5ft/7ft/10ft/12ft |
8/10/12/14 |
3ft/5ft/7ft/10ft |

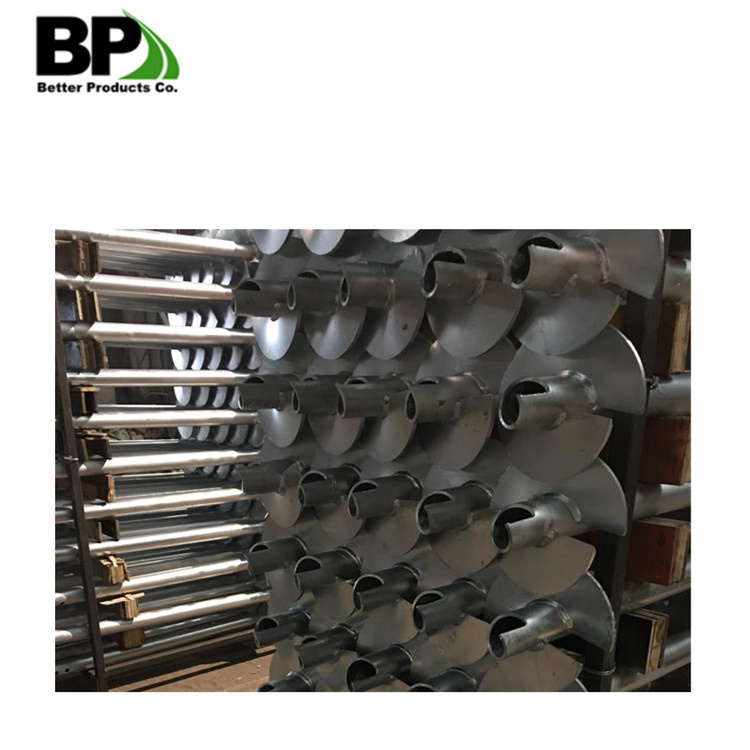

Product images
1.
Packaging:
Usually we shipping the products in 20ft’ container or according to your demand.
2.
Shipping:
6-8 weeks after confirming your order.
1. Professional staffs reply your inquiry in 24 working hours.
2. Professional factory : We are the first class helical screws products supplier for Residential, Commercial and Industrial Projects as well as Underpinning and Anchoring.
3. Good quality, competitive pricing and timely service.
4. OEM service is available here.
5. Sample: Available.
