Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Shunfu
-
Voltage:
-
220V50HZ/380V50HZ
-
Power:
-
20kw
-
Dimension(L*W*H):
-
Not fixed
-
Weight:
-
3000 kg
-
Warranty:
-
1 Year
-
Marketing Type:
-
New Product 2021
-
Item:
-
Paper board making machine
-
Raw material:
-
Waste paper/waste box
-
Output paper:
-
Paperboard/cardboard paper
-
Application:
-
kraft paper bag industry
-
Size:
-
Customizabled
-
Technical training:
-
Support
-
Hot pressure machine:
-
As for your needs
-
Paper weight(gsm):
-
As for your needs
-
Name:
-
Paperboard making machine
-
Color:
-
Customizabled
Quick Details
-
Production Capacity:
-
200 pcs/min
-
Product Type:
-
Paper board making machine
-
Processing Type:
-
Paper board making machine
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Shunfu
-
Voltage:
-
220V50HZ/380V50HZ
-
Power:
-
20kw
-
Dimension(L*W*H):
-
Not fixed
-
Weight:
-
3000 kg
-
Warranty:
-
1 Year
-
Marketing Type:
-
New Product 2021
-
Item:
-
Paper board making machine
-
Raw material:
-
Waste paper/waste box
-
Output paper:
-
Paperboard/cardboard paper
-
Application:
-
kraft paper bag industry
-
Size:
-
Customizabled
-
Technical training:
-
Support
-
Hot pressure machine:
-
As for your needs
-
Paper weight(gsm):
-
As for your needs
-
Name:
-
Paperboard making machine
-
Color:
-
Customizabled
Used for paper board making machine made paper box material
PAPERBOARD MACHINE
This device solves the problem of comprehensive development and utilization of the paper mill sludge successfully and can transfer waste into product to solve the environmental only input not output contradictions. And it also achieved good economic and environmental profits. The cardboard from this device can dry naturally, it also can supporting the use of pressure dryer.

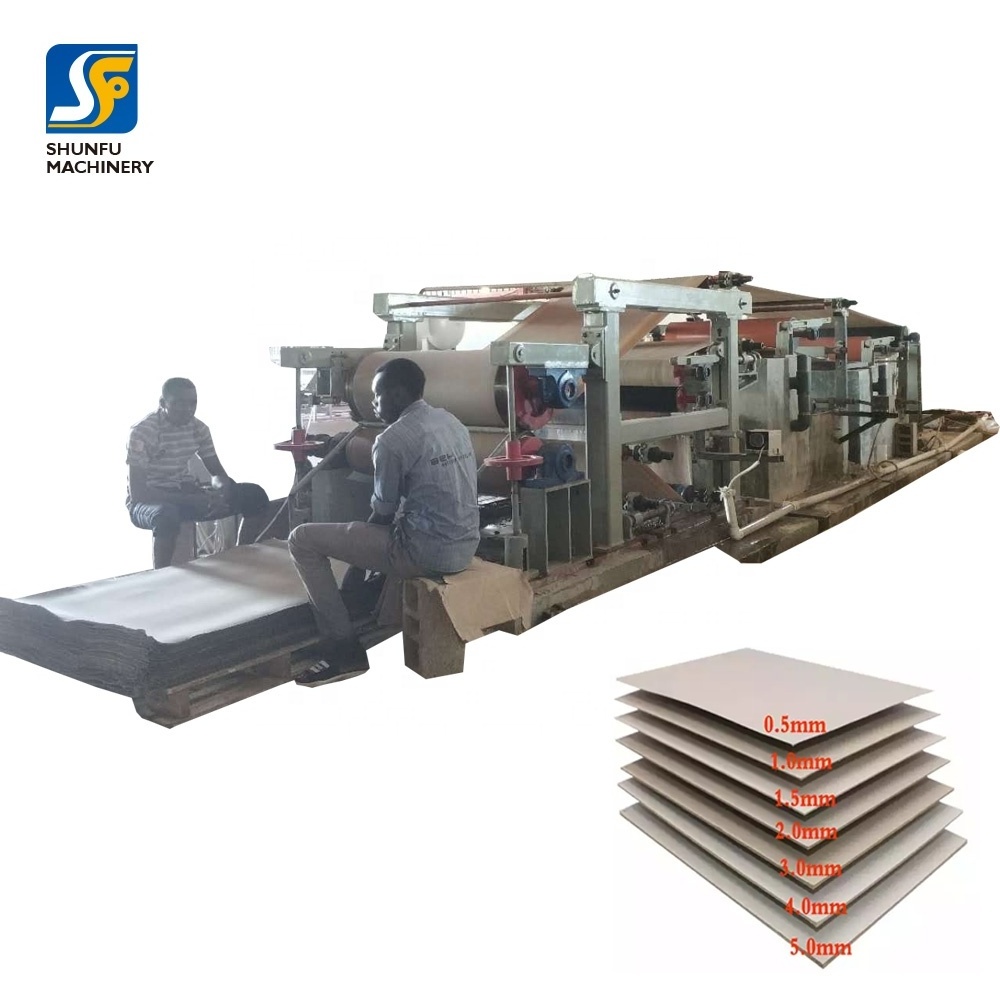

Full Automatic Paperboard Making Machine
( Main feature: Automatic cutting device and automatic adsorption device )
Semi Automatic Paperboard Making Machine
( Main feature: The paperboard connection by manual )
Finished Paperboard Display
TECHNICAL PROCESS
Raw material → Hydrapulper → Vibrating sieve → Horizontal mixer(crude pulp tank) → Pulp pump→ Refiner → Horizontal mixer(ajust pulp tank) → Pulp pump → Centrifugal screen machine → Horizontal mixer(finished pulp tank) → Pulp pump→ Steady pulp box → Enter cylinder mould box→ Forming paperboard → Enter hot pressure machine to drying → Package → Sale
APPLICATION
Chemical additives packaging box,packaging box lining board,clothing packing box ,arts and crafts packaging box,ceramic products packaging box,decorative panels and various types of thread-bound book cover and the outer packaging.
MAIN PARAMETERS
|
Q1: Whats raw material you want to use?
|
A: Waste paper/waste carton |
|
Q2: How many ton per day you want to produce? |
A: In general say our machine is 5-8ton/day. But if you have special requires, we also accept custom made |
|
Q3: How many size you want to make the paperboard? |
A: Customizabled (Length x Width )
|
|
Q4: How many grammage for paper weight(gsm)? |
A: Customizabled |
1
- Two factories are blessed, one is Shunfu group, the other is Huatuo group, with strong strength
2
- With the help of more than 200 excellent engineer teams and rich overseas installation experience
3
- Top CNC lathe in the production workshop
4
- Perfect after-sales service answer
|
Q : Your machine can use straw, hemp as the raw material? A : Generally say that use straw, hemp as material to produce the paper in this fields, we can say you have out of the market. Because the quality of finished paper with straw, hemp will worse than the waste paper. Besides, The cost will higher than the waste paper. It need more machines to process into pulp. So the waste paper as material will more competitive in now market. |
|
Q
: We are new one in this fields, can you give some recommendation for us?
|
|
Q
: You equipment can recycle the waste water in the production?
|
|
Q
: How about the quality of the machine? What are your guarantees?
|
|
Q
: Can you custom made the machine we need special?
|
FACTORY ADDRESS GUIDE
The most of customer usually very concerned this quesion: Can I visit your factory?
Our answer is: Of course. So welcome to coming our Shunfu Factory. Our factory address is Shangnian Industrial Zone, Baixiang Town, Qingyang City, Henan Province , China . In order to let you know more about lines for coming our factory, now we desighed some lines for our further customers for machine paper product.
LINE 1 . If you arrive in Guangzhou , you can take the plane or the high-speed rail to Henan, Zhengzhou, about 1500 kilometers . We'll have someone pick you up in Zhengzhou.
LINE 2 . If you arrive in Beijing , you can take the plane or the high-speed rail to Henan, Zhengzhou, about 700 kilometers . We'll have someone pick you up in Zhengzhou.
LINE 3. If you arrive in Yiwu , you can take the plane or the high-speed rail to Henan, Zhengzhou, about 900 kilometers . We'll have someone pick you up in Zhengzhou.
