Quick Details
-
Material:
-
NBR
-
Weight:
-
300KG
-
Size:
-
1.5*0.8*1.8M
-
Power:
-
0.2KW, 1 Kw or 1.5kW
-
Weight (KG):
-
300 kg
-
Capacity:
-
0.3m3- 15 m3
-
Certificate:
-
CCS
-
Electricity:
-
380v,50hz. or as your require
-
Machine Standard:
-
MARPOL 73/78
-
Local Service Location:
-
None
Quick Details
-
Applicable Industries:
-
Ships
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
Dongfang
-
Material:
-
NBR
-
Weight:
-
300KG
-
Size:
-
1.5*0.8*1.8M
-
Power:
-
0.2KW, 1 Kw or 1.5kW
-
Weight (KG):
-
300 kg
-
Capacity:
-
0.3m3- 15 m3
-
Certificate:
-
CCS
-
Electricity:
-
380v,50hz. or as your require
-
Machine Standard:
-
MARPOL 73/78
-
Local Service Location:
-
None

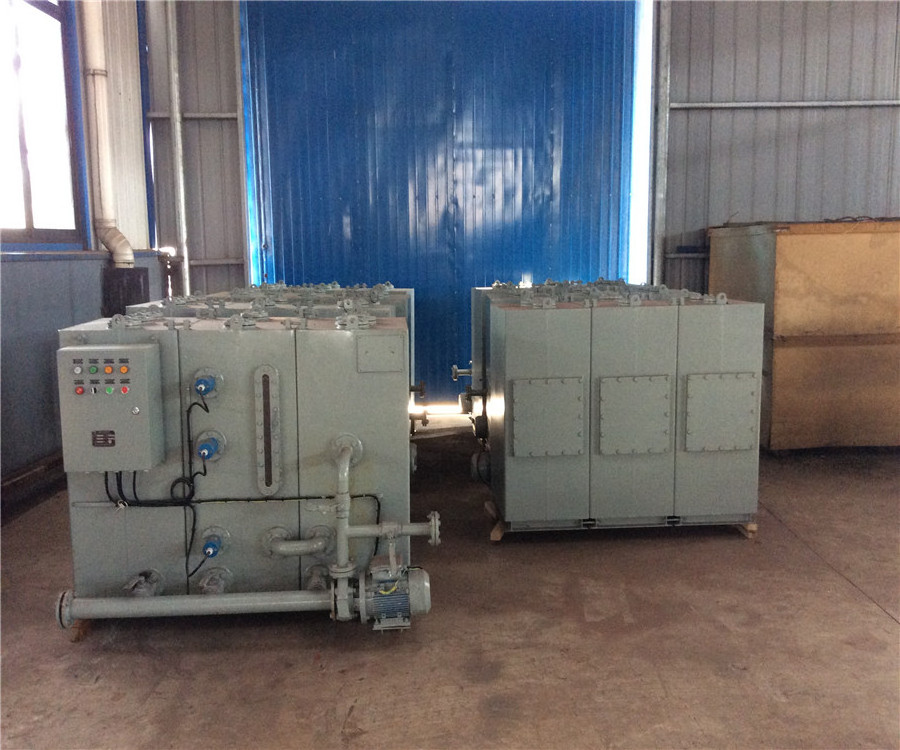

Fish Boat Sewage Treatment & Storage Holding Tank
Overviews:
Application
This SWCH Type Holding Tank also can be a Sewage Comminuting and disinfecting system regulated by Annex IV of MARPOL 73/78,for the temporary storage of sewage when the ship is less than 3 nautical miles
from the neatest land,or transfer to a sewage treatment plant.
The Holding tank has the function of closing disinfecting,Sludge cutting,inner flushing and discharge the treated sludge to go overboard,open sea or shore connection.
Simple structure,easy operation of the holding tank,which has been obtained the Certificate from CCS China.
Principle Description
The Holding tank is used for storage of raw sewage or remaining solid sludge disposed by the treatment plant.
When it stores raw sewage,a certain amount of chloride can be added into the sewage.
When the sewage reaches specified level,the cutting pump is started to convert solid sludge into small particle sludge by circulating repeatedly.
The sludge can be transported to the reception facilities with the shore connection or it can be discharge overboard when the ship navigates in the non-restricted areas.
Models of sewage holding tank
|
Model
|
SWCH- |
|||||||||||||
|
Capacity(m3) |
0.3 |
0.5 |
1.0 |
1.5 |
2.0 |
3.0 |
4.0 |
5.0 |
6.0 |
8.0 |
10.0 |
12.0 |
15.0 |
|
|
Quality of effluent |
Colichin less than 1000pcs/100ml,suspended solid shall not be found |
|||||||||||||
|
Electricity |
380V/50Hz/3P |
|||||||||||||
|
Power(Kw) |
1.0 |
1.5 |
||||||||||||
|
Discharge Pressure |
0.08MPa or as order |
0.1MPa or as order
|
||||||||||||
Sewage holding tank system principle drawing & Structure
Packing
If you are interested in sewage holding tank, please contact us to get more information for reference.
