Quick Details
-
Nozzle Type:
-
Selectable Fire Nozzle
-
Flow rate:
-
360-475-560-750-950LPM-FLUSH
-
Material:
-
Aluminium alloy
-
Inlet size:
-
2 Inch (DN50);2.5 Inch (DN65)
-
Working Pressure:
-
7 Bar/0.7 Mpa
-
Max.Fog Angle:
-
120 Degree
-
Coupling Standard:
-
Storz,NH,INST,GOST,Machino,etc.
-
Application:
-
For firefighting,water,fire protection,firefighter
-
Jetting Pattern:
-
Straight stream,Narrow fog,Wide fog
-
Operation:
-
Pistol grip
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
forede
-
Model Number:
-
QLD7.0/15III
-
Nozzle Type:
-
Selectable Fire Nozzle
-
Flow rate:
-
360-475-560-750-950LPM-FLUSH
-
Material:
-
Aluminium alloy
-
Inlet size:
-
2 Inch (DN50);2.5 Inch (DN65)
-
Working Pressure:
-
7 Bar/0.7 Mpa
-
Max.Fog Angle:
-
120 Degree
-
Coupling Standard:
-
Storz,NH,INST,GOST,Machino,etc.
-
Application:
-
For firefighting,water,fire protection,firefighter
-
Jetting Pattern:
-
Straight stream,Narrow fog,Wide fog
-
Operation:
-
Pistol grip
Introduction
Product Description
This manual describes nozzles calibrated at 7 bar, Contact the factory for data specific to models that operate with metric flow calibrations. QLD7.0/15III selectable flow fire nozzle is economical, lightweight, and dependable nozzles. Their rugged construction is compatible with the use of fresh water as well as firefighting foam concentrate. Other important operating features include:
* Quick-acting pattern control from straight stream to wide fog;
* Fixed fog teeth;
* Metal spinning fog teeth available on some models;
* Easily flushable while flowing to clear trapped debris;
* Quick-change fire hose coupling;
* Quick-acting pattern control from straight stream to wide fog;
* Fixed fog teeth;
* Metal spinning fog teeth available on some models;
* Easily flushable while flowing to clear trapped debris;
* Quick-change fire hose coupling;
|
Model
|
QLD7.0/15III
|
|
Flow rate
|
115-235-360-475-560-950LPM-flush
|
|
Working pressure
|
0.7MPa
|
|
Inlet size
|
2" ;2.5''
|
|
Coupling srandard
|
STORZ; GOST;INST; etc.
|
|
Material
|
Hard anodized aluminium alloy
|
Specification

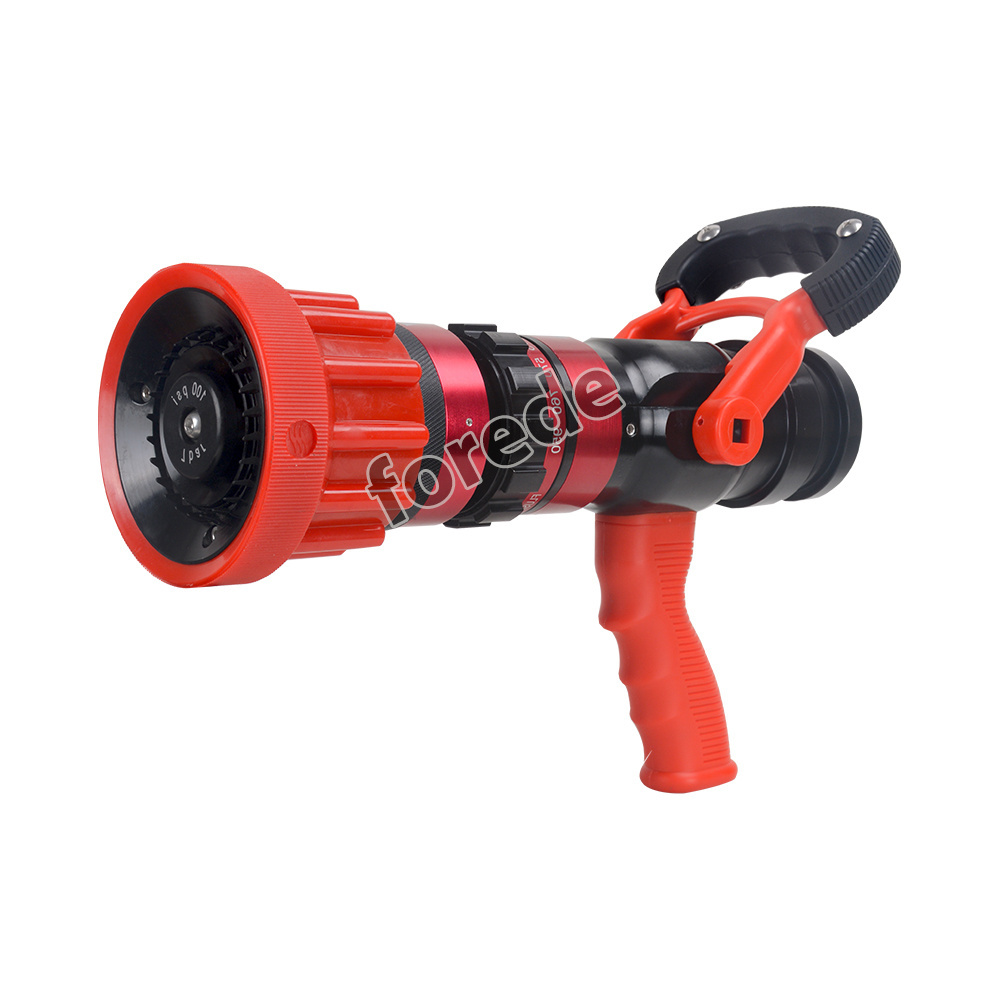

As above image shows,
part 1 is SS-FOG adjustor, to change the jetting parttern,between straight stream and fog;
part 2 is flow rate adjustor, to change the flow rate among 115-235-360-475-560-950LPM-flush;
part 3 is a switch valve, to open and stop the water flow through fire nozzle.
This product has different inlet size, 2"; 2.5" to choose; the coupling standards are variety, they are STORZ, GOST, INST, NH,etc. for your reference.
If you need our help, please show us your demand and requirement.
Dimension
Detail Image
Recommend Products
Automatic Fire Monitor Series
Nozzle Series
Main Product
FAQ
Q.What's the MOQ of your products?
A:Our MOQ is one (1) piece/set.
Q.What's your payment terms?
A:We accept T/T, L/C, Western Union, Paypal,etc.
Q. How long is the delivery time?
A: Usually around 15 days after payment.
Q.Do you have technical support?
A: Yes, we have a professional engineering team.
Q.Do you have warranty?
A:Yes, all products have one year warranty.
Q.Can you accept OEM?
A:Yes, we do customized design for our clients.
A:Our MOQ is one (1) piece/set.
Q.What's your payment terms?
A:We accept T/T, L/C, Western Union, Paypal,etc.
Q. How long is the delivery time?
A: Usually around 15 days after payment.
Q.Do you have technical support?
A: Yes, we have a professional engineering team.
Q.Do you have warranty?
A:Yes, all products have one year warranty.
Q.Can you accept OEM?
A:Yes, we do customized design for our clients.
Order Information
Dear Customer,
Before ordering, please contact with our sales team to discuss order information, such as Model Number, Flow Rate, Material, Control Ways, Package,Etc.
If you have any other requirements or wanna know more info about our products, welcome to contact as well. Our Sales team and Technical Department are willing to support you.
Before ordering, please contact with our sales team to discuss order information, such as Model Number, Flow Rate, Material, Control Ways, Package,Etc.
If you have any other requirements or wanna know more info about our products, welcome to contact as well. Our Sales team and Technical Department are willing to support you.
