Low operating costs, continuous maintenance of hot water temperature supply pipes at each point.
The self-regulating effect keeps hot water at the desired temperature
No need to use pumps, complex piping systems with complex piping and complex flow balancing.

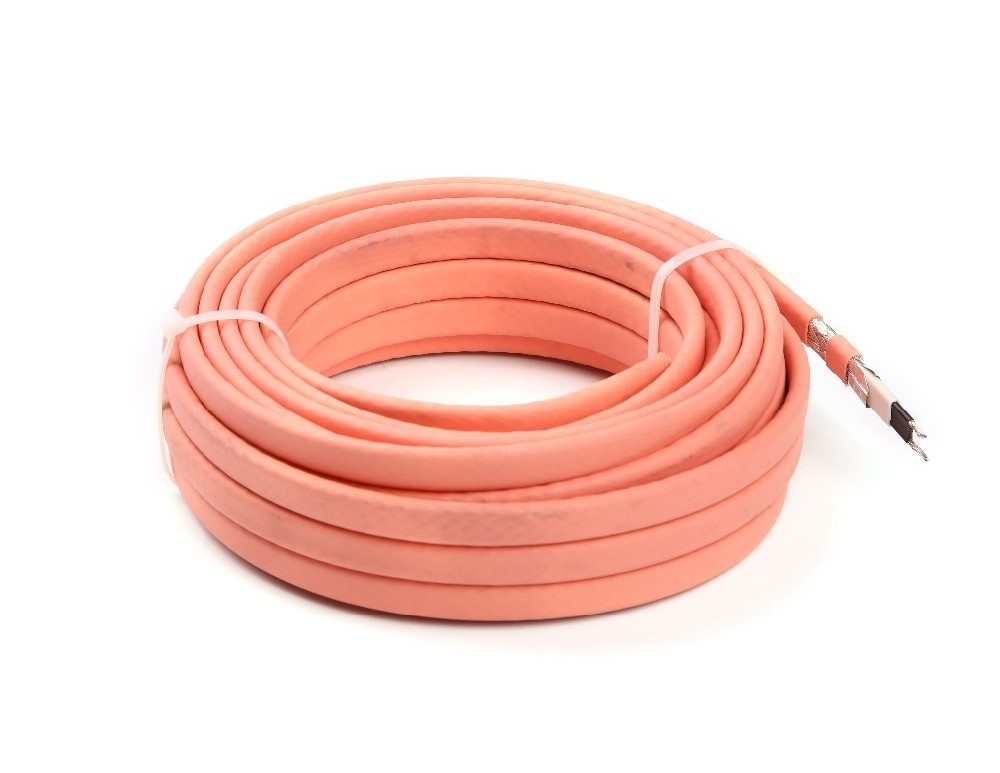

HWTM self-regulating heating cables are installed on hot water supply pipes underneath standard pipe insulation.
Non-hazardous, dangerous and corrosive environments are suitable
|
Product type
|
|
HTM
|
|
||
|
Service voltage (SCH1-CR)
|
|
120V
|
|
||
|
Service voltage (SCH2-CR)
|
|
208–277V
|
|
||
|
Power at 50°F (10°C)
|
|
32 watts (minimum)
|
|
||
|
Power at 0°F (–18°C)
|
|
60 watts (minimum)
|
|
||
|
Cold lead wire gauge
|
|
18 AWG
|
|
||
|
Cable width* (nominal)in(mm)
|
|
0.535(13.6)
|
|
||
|
Cable thickness* (nominal)in(mm)
|
|
0.236 (6.0)
|
|
||
|
Cable length*in(mm)
|
|
48 (1220)
|
|
||
|
Cold lead length*in(mm)
|
|
28 (710)
|
|
||
|
Intermittent max. exposure temperature
|
|
185°F (85°C)
|
|
||
|
Insulation jacket type
|
|
Modified polyolefin
|
|
||
|
Girth (wraparound) dimension*
|
|
40 (102) or less in circumference
|
|
||
|
Type
|
HWTM-Y
|
HWTM-O
|
HWTM-R
|
|
|
|
Breaker size
|
230V
|
230V
|
230V
|
|
|
|
13A
|
110m
|
75m
|
65m
|
|
|
|
16A
|
140m
|
100m
|
80m
|
|
|
|
20A
|
180m
|
130m
|
100m
|
|
|
Rolled cable, wrap the rolled cable in white air conditioner cloth after fixing the tape.
For samples, goods will be shipped from stock within
3
days
.
For bulk production goods, our lead time is
7~15 days
.
