Quick Details
-
Ice storage capacity:
-
150KG, Other
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Koller
-
Dimension(L*W*H):
-
3.09m*1m*1.6m
-
Weight:
-
600 KG
-
Warranty:
-
12 months
-
Comprassor brand:
-
Copeland/Danfoss/ Bitzer
-
Material for ice moulds,water tank:
-
Aluminum plate
-
Refrigeration Components:
-
Danfoss or Castel
-
Refrigerant:
-
R22 or R404a
-
Electrical components:
-
LG(LS)
-
Ice block weight:
-
5 kg
-
Ice size:
-
125*90*500mm
-
Evaporator for ice tank:
-
Aluminum plate
-
Cooling way:
-
air cooling system
-
Control system:
-
HP/LP switch with automatic reset
Quick Details
-
Ice Shape:
-
ice block
-
Voltage:
-
380V/50HZ/3P or 220V/60HZ/3P
-
Power:
-
5kw
-
Ice storage capacity:
-
150KG, Other
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Koller
-
Dimension(L*W*H):
-
3.09m*1m*1.6m
-
Weight:
-
600 KG
-
Warranty:
-
12 months
-
Comprassor brand:
-
Copeland/Danfoss/ Bitzer
-
Material for ice moulds,water tank:
-
Aluminum plate
-
Refrigeration Components:
-
Danfoss or Castel
-
Refrigerant:
-
R22 or R404a
-
Electrical components:
-
LG(LS)
-
Ice block weight:
-
5 kg
-
Ice size:
-
125*90*500mm
-
Evaporator for ice tank:
-
Aluminum plate
-
Cooling way:
-
air cooling system
-
Control system:
-
HP/LP switch with automatic reset
Product Information

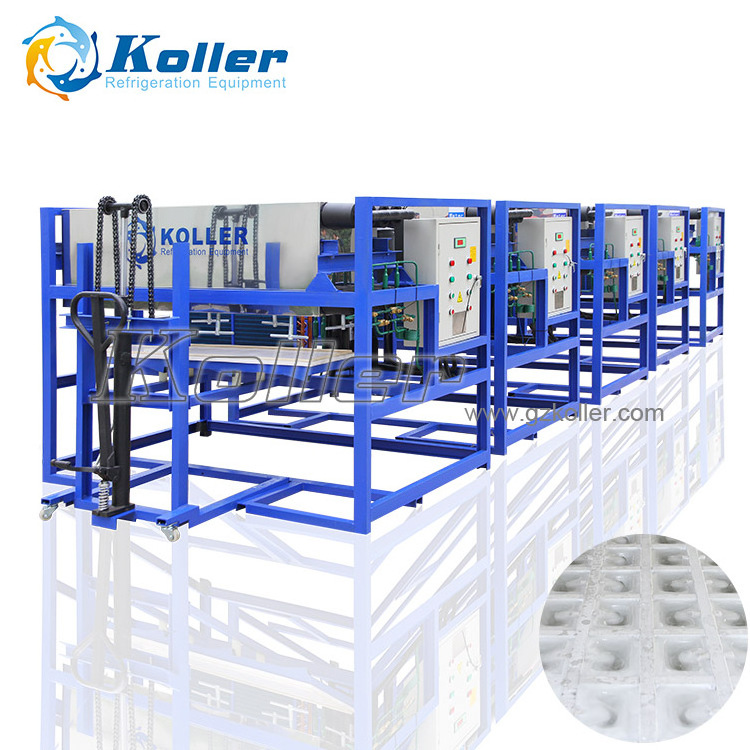

Koller DK10 Energy Labor Saving Automatic Direct Cooling Ice Block Machine for Faster Clean Fishery Drinkable Ice Block
Model:
DK10
Capacity: 1 ton/day
Ice shape: Block Ice
Ice size: 50kg/piece
Ice dimension: 163mm*405mm*920mm
Ice freezing time: 12 hours per batch
1. Koller Direct Cooling Ice Block Machine is a new type of ice machine in which the refrigerant evaporates inside the evaporator, and directly cools the water into ice. The machine mainly includes refrigeration system, lifting system and control system.
Capacity: 1 ton/day
Ice shape: Block Ice
Ice size: 50kg/piece
Ice dimension: 163mm*405mm*920mm
Ice freezing time: 12 hours per batch
1. Koller Direct Cooling Ice Block Machine is a new type of ice machine in which the refrigerant evaporates inside the evaporator, and directly cools the water into ice. The machine mainly includes refrigeration system, lifting system and control system.
1).
Ice size
: 5kg, 10kg, 15kg, 20kg, 25kg, 50g/piece, or can be customize.
2).
Freezing time
: 3~12hours, depends on the ice size.
3).
Refrigerant
: R22 or R404A or R507
4).
Capacity
: 1-20tons in 24 hours
5).
Power supply
: 380V/50Hz/3P; 380V/60Hz/3P; 415V/50Hz/3P; 220V/60Hz/3P; 220V/60Hz/1P for 1ton ice machine.
2. Product features:
1)
.
7 Patents about the machine.
2)
.
Food-grade aluminium ice moulds, anti-rust and anti-corrosive.
3)
.
Aluminium ice moulds assembled without welding. Will not deform or affect ice harvest.
4)
.
Short and fast ice freezing time, saveing energy.
5)
.
Automatic water adding, automatic ice defrosting, automatic ice removing,
one person can handle, saving labor.
one person can handle, saving labor.
6)
.
Controlled by German SIEMENS PLC controller with touch screen, remote control available..
7) . No need salt water, ice block is sanitary, clean and edible .
7) . No need salt water, ice block is sanitary, clean and edible .
8)
.
Compact structure design, can save installation space and
shipping costs for you.
shipping costs for you.
9)
.
Very strong framework, not easy to deform.
3. Models and technical parameters:
Daily capacity from 500 kg to 3 tons.
3. Models and technical parameters:
Daily capacity from 500 kg to 3 tons.
|
Model
|
|
DK05
|
DK10
|
DK20
|
DK30
|
DK50
|
DK100
|
DK150
|
DK200
|
||||||||
|
Capacity(Tons/24hours)
|
|
0.5
|
1
|
2
|
3
|
5
|
10
|
150
|
200
|
||||||||
|
Refrigerant
|
|
R22/R404A/R507
|
|
|
|
|
|
|
|
||||||||
|
Compressor Brand
|
|
Copeland
|
Copeland/Refcomp/ Bitzer
|
|
Refcomp/Bitzer
|
|
Refcomp/Hanbell/Bitzer
|
|
|
||||||||
|
Cooling Way
|
|
Air Cooling
|
|
|
Air/Water cooling
|
|
Water/Evaporative Cooling
|
|
|
||||||||
|
Compressor Power (HP)
|
|
4
|
6
|
12
|
(18)15
|
28
|
2*28
|
90
|
122
|
||||||||
|
Ice Harvest Way
|
|
Manual Forklift
|
|
|
|
|
Automatic Rising(Falling)
|
|
|
||||||||
|
Power of Lifting Device Motor(KW)
|
|
/
|
0.55
|
1.1
|
|
2.2
|
4
|
|
|
||||||||
|
Power of Cooling Pump(KW)
|
|
/
|
/
|
|
1.5
|
2.2
|
4
|
5.5
|
|
||||||||
|
Fan Diameter(mm)
|
|
500
|
400*2
|
400*4
|
500*2
|
630*3
|
/
|
|
|
||||||||
|
Motor Power(KW)
|
|
0.425
|
0.18*2
|
0.25*4
|
0.425*2
|
0.8*3
|
/
|
/
|
|
||||||||
|
Ice Machine Size
|
L (mm)
|
1250
|
1900
|
3800
|
4900
|
5880
|
8500
|
10800
|
11500
|
||||||||
|
|
W (mm)
|
1030
|
1130
|
900
|
1100
|
1700
|
2300
|
2300
|
2700
|
||||||||
|
|
H (mm)
|
1340
|
1420
|
1600
|
2000
|
2380
|
2500
|
2500
|
2500
|
||||||||
Ice size for choice. It also can be customized according to your need.
|
Ice Size/pc
|
Ice Dimension (mm) (Thickness*Width*Height)
|
Freezing Time (Hours)
|
Ice Making Frequency (Times)
|
|
5KG
|
95*130*500
|
3
|
7
|
|
10KG
|
95*260*500
|
3
|
7
|
|
15KG
|
123*300*500
|
6
|
4
|
|
|
123*215*710
|
6
|
4
|
|
20KG
|
123*285*710
|
6
|
4
|
|
25KG
|
123*350*710
|
6
|
4
|
|
|
155*280*710
|
8
|
3
|
|
30KG
|
155*335*710
|
8
|
3
|
About The Details
Faster Ice Making and Lower Power Consumption
Aluminum evaporator is of 3 times higher heat exchange efficiency than other steel [
SUS304, galvanized steel
], so ice block can be completely frozen faster. In this way, it can produce more ice blocks with lower power consumption.
Clean ice Block and Eco-friendly
Koller direct cooling ice block machine can make ice block directly without brine or any other material, so it can produce clean ice blocks even for human consumption.
Also it won't produce any pollution to the environment.
Longer service life
Without salt or other material's corrosion, Koller direct cooling ice block machine can have longer service life and you need just
clean the ice moulds regularly. The future maintenance investment is lower.
clean the ice moulds regularly. The future maintenance investment is lower.
Less Space Requirement
For Koller direct cooling ice block machine is integrated design, it takes less space than the brine type ice block machine for the same capacity.
Labor Saving
Equipped with Siemens PLC system, Koller direct cooling ice block machine only only your labor cost to add the water and take the ice blocks out, all other process is automatically finished.
