Quick Details
-
Warranty:
-
2 years
-
Brand Name:
-
BAOTN
-
Model Number:
-
GFD
-
Place of Origin:
-
Guangdong, China
-
Horsepower:
-
Stardard
-
Cable Length:
-
Stardard
-
Outlet Size:
-
Stardard
-
Power:
-
Stardard
-
Standard or Nonstandard:
-
Standard
-
Maximum throughput pressure:
-
10.0Mpa
-
Throughput:
-
0.05/0.1/0.2/0.3/0.4/0.5cc/cy
-
weight:
-
168/232/299/359g
-
outlet quantity:
-
2/3/4/5
-
Material:
-
Zinc alloy
-
Color:
-
Yellow
-
Brand:
-
BAOTN
-
MOQ:
-
1 Pc
Quick Details
-
Application:
-
Machining
-
Pressure:
-
Stardard
-
Voltage:
-
Stardard
-
Warranty:
-
2 years
-
Brand Name:
-
BAOTN
-
Model Number:
-
GFD
-
Place of Origin:
-
Guangdong, China
-
Horsepower:
-
Stardard
-
Cable Length:
-
Stardard
-
Outlet Size:
-
Stardard
-
Power:
-
Stardard
-
Standard or Nonstandard:
-
Standard
-
Maximum throughput pressure:
-
10.0Mpa
-
Throughput:
-
0.05/0.1/0.2/0.3/0.4/0.5cc/cy
-
weight:
-
168/232/299/359g
-
outlet quantity:
-
2/3/4/5
-
Material:
-
Zinc alloy
-
Color:
-
Yellow
-
Brand:
-
BAOTN
-
MOQ:
-
1 Pc
|

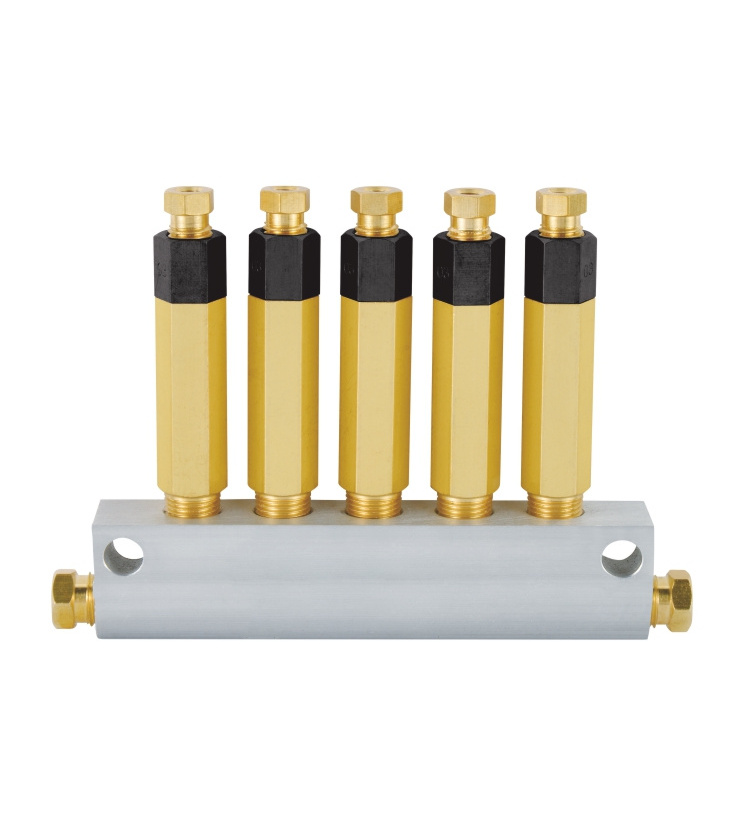

Name
|
Quantified pressurized oil grease distributor
|
|
Model
|
GFD
|
|
Custom made
|
Acceptable
|
|
Standard
|
ISO9001 and CE
|
|
Warranty
|
2 years
|
|
Used for
|
Lathe machine,CNC machine,Centralized lubrication device and so on
|
* Lubricant delivered from the oil pump makes umbrella valve in the BF distributor drive upwards.
* When the umbrella valve closes central hole of the core bar, the piston overcomes the spring force to rise. L ubricant stored in the oil cavityis drained out.
* When piston moves to the top point of oil cavity, oil draining is completed.
* When oil pump stops oil supplying, the pressure release valve is automatically released to make lubricant in the main oil pipe to returnthrough the decompression valve. At this moment, the system pressure is reduced, and piston in the distributor starts reciprocating withthe function of spring. When the umbrella valve reciprocates and closes oil outlet of the distributor, the piston delivers lubricant in the lowercavity through the core bar, and oil supply for the next time is ready
|
Name
|
Quantified pressurized oil grease distributor
|
|
Material
|
Copper
|
|
Standard
|
ISO9001 and CE
|
|
Model
|
GFD-05
|
* Oil volume indication: (notes: when oil volume values of all oil outlets are identical, represented with one oil volume).
* Example 1: BT0502 means 5-position distributor with model of BT, oil delivery volume of oil outlets 1, 2, 3, 4 and 5is 0.2ml/time.
* Example 2: BT05- 53235 means that outlet oil volumes ofoutlets 1, 2, 3, 4 and 5 of 5position distributors with modelof BT are 0.5, 0.3, 0.2, 0.3 and O.5ml/time.
# Remarks: the BB distributors have 7:8:9:1O positions
