- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Maxsolar, Maxsolar
-
Model Number:
-
MAX-M65
-
Place of Origin:
-
Zhejiang, China
-
Panel Dimensions:
-
810*540*30mm
-
Product name:
-
65W Mono Rigid Solar Panel
-
Solar cell type:
-
Monocrystalline
-
Certificate:
-
CE, CE
-
Color:
-
Black and silver
-
Frame:
-
Aluminium
-
Connector:
-
SAE/MC4/Anderson/Batery Clamp
-
Weight:
-
3.5kg
-
Material:
-
Monocrystalline solar cell/Aluminum frame
-
Accessories:
-
Solar Charge controller/Mounting stand or accessories cables
Quick Details
-
Cell size:
-
other
-
Type:
-
other
-
Warranty:
-
1 year
-
Brand Name:
-
Maxsolar, Maxsolar
-
Model Number:
-
MAX-M65
-
Place of Origin:
-
Zhejiang, China
-
Panel Dimensions:
-
810*540*30mm
-
Product name:
-
65W Mono Rigid Solar Panel
-
Solar cell type:
-
Monocrystalline
-
Certificate:
-
CE, CE
-
Color:
-
Black and silver
-
Frame:
-
Aluminium
-
Connector:
-
SAE/MC4/Anderson/Batery Clamp
-
Weight:
-
3.5kg
-
Material:
-
Monocrystalline solar cell/Aluminum frame
-
Accessories:
-
Solar Charge controller/Mounting stand or accessories cables
Product Description
Product Form
| Physical Parameter |
| Model: | MAX-M65 |
| Dimension: | 810*540*30mm |
| Weight: | 3.5kg |
| Number of cells: | 36pcs |
| Type of cells: | Mono |
| The surface of glass: | Tempered glass |
| Connector type: | SAE |
| The connection method: | Series connection |
| Electrical Performance Parameter |
| Peak Power:65W | Working Voltage:17.62V |
| Working Current(IMP):3.05A | Open-circuit Voltage:21.31V |
| Short-circuit current(ISC):3.68A | Thermal Endurance:-40℃ to +80℃ |
| Number of diodes: | 4 |
| Tset Standard(environment): | Irradiance 1000 W/SQ.M,environment temperature 25℃ AM=1.5 |

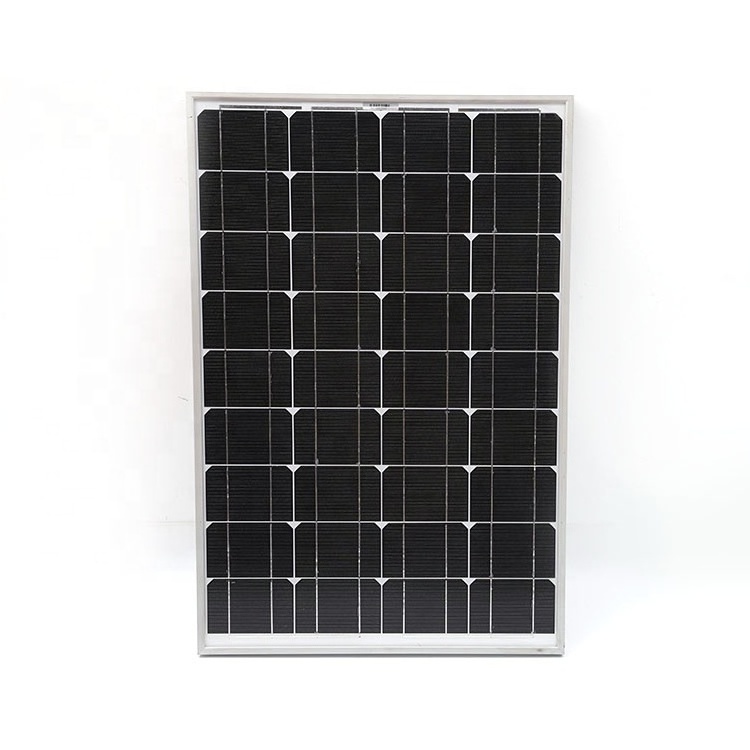

Product Display
