Quick Details
-
Marketing Type:
-
Hot Product
-
Raw material:
-
Wire Rod
-
Name:
-
Wire ribbed machine
-
After-sales Service Provided:
-
Online Support
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
shuoen
-
Weight (KG):
-
8000
-
Marketing Type:
-
Hot Product
-
Raw material:
-
Wire Rod
-
Name:
-
Wire ribbed machine
-
After-sales Service Provided:
-
Online Support

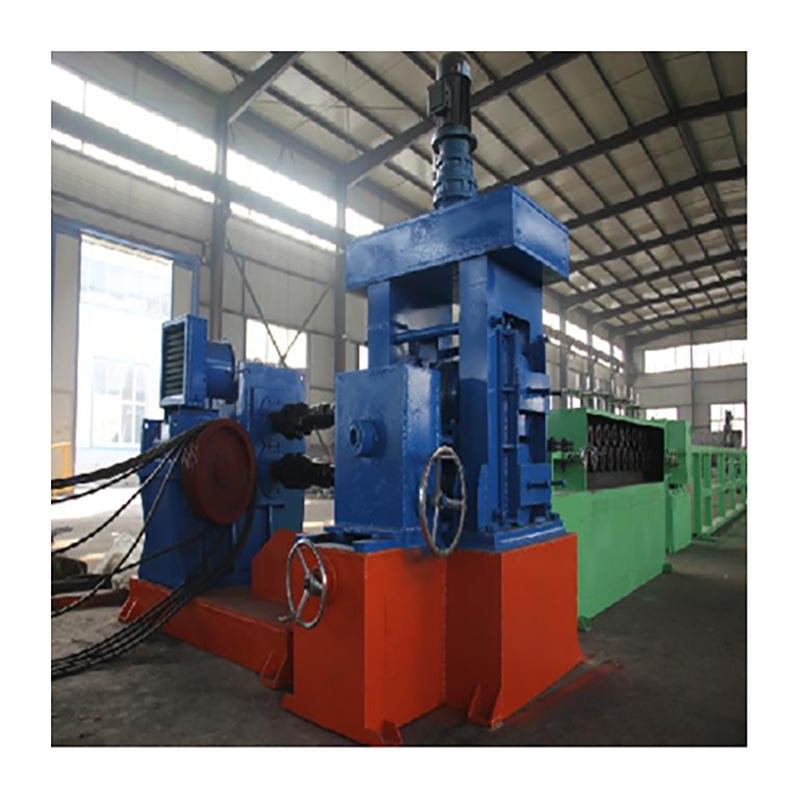

Steel Bar Cold Drawing Machine
rebar making machine is a kind of machine use for rolling coil wire from big diameter to small diameter, out put can be ribben type or round type.
Input diameter could be special making according your local rod material.
Input diameter could be special making according your local rod material.
Product Description
Specification
|
Model
|
Incoming diameter(mm)
|
Outlet diameter(mm)
|
Production rate
|
Host power(KW)
|
Coiler power
(KW)
|
|
ZCLZ850-55
|
6.5-10
|
5.0-9.5
|
200m/min
|
55
|
11
|
|
ZCLZ850-75
|
6.5-12
|
5.0-11.5
|
150m/min
|
75
|
11
|
|
ZCLZ1000-90
|
6.5-12
|
5.0-11.5
|
200m/min
|
90
|
11
|
Product Composition
Wire support bracket
Maximum load 2T.
Rust clean machine
Remove rust on the surface of steel bars
Drawing&ribbed machine
Divided into two parts. The first rolling mill is mainly for reducing the diameter, The second set of rolling mill is for making the rebar
Reeling machine
Roll up the finished product.
Wire straightening and cutting machine
Straighten and cut the produced cold-drawn steel bars.
Receiving platform
Collect finished products
Packing & Delivery
Conventional plastic dust-proof packaging, factory container
