Quick Details
-
Dimension(L*W*H):
-
2.5*2.3*2.3m
-
Weight:
-
6
-
Power (kW):
-
50
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
clamping force:
-
2000KN
-
platen size:
-
510*510mm
-
dimension between tiebar:
-
690*290mm
-
space of platens:
-
350mm
-
max. clamping stroke:
-
300mm
-
min. mold thickness:
-
60mm
-
heating power:
-
15KW
-
Application:
-
industrial rubber parts, power insulating industry, automotive
Quick Details
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
HWAYI
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2.5*2.3*2.3m
-
Weight:
-
6
-
Power (kW):
-
50
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
clamping force:
-
2000KN
-
platen size:
-
510*510mm
-
dimension between tiebar:
-
690*290mm
-
space of platens:
-
350mm
-
max. clamping stroke:
-
300mm
-
min. mold thickness:
-
60mm
-
heating power:
-
15KW
-
Application:
-
industrial rubber parts, power insulating industry, automotive
Product Description

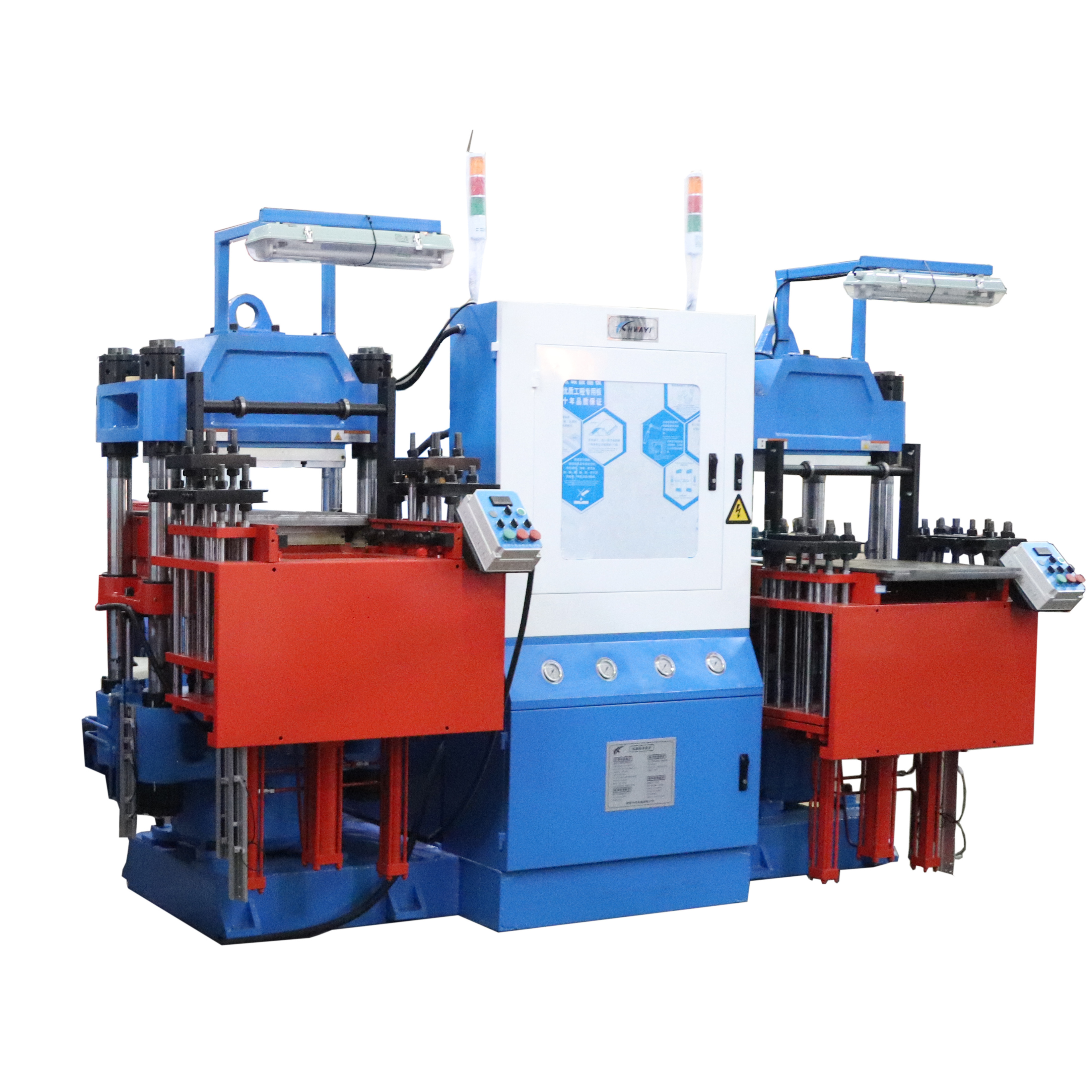

Adopt four-column structure with the split structure design between the front auxiliary unit and moving plate. It is suitable for many kinds of de-moulding methods and mold usage.
| Parameter name/model | HYL-100P single table |
HYL-200P single table |
HYL-300P single table |
HYL-400P Single Table |
| Clamping force(KN) | 1000 | 2000 | 3000 | 4000 |
| Platen size(mm) | 500X550 | 510X510 | 600X600 | 800X900 |
| Dimension btwn tiebar(mm) | 610X335 | 690X290 | 790X340 | 990X570 |
| Space of platens(mm) | 500 | 300 | 300 | 760 |
| Max.clamping stroke(mm) | 460 |
300 |
300 | 300 |
| Min.mold thickness(mm) | 50 | 60 | 60 | 60 |
| Heating power(KW) | 12 | 24 | 30 | 36 |
| Total power(KW) | 20 | 38 | 45 | 52 |
| Machine dimension(LxWxH)(m) | 1.8X1.9X2.1 | 1.9X2.3X2.1 | 2.4X2.5X2.2 | 2.9X2.8X3.4 |
| Reference weight(Ton) | 3.5 | 6 | 8 | 13 |
