Quick Details
-
Internal Dimensions(l x W x H)(mm):
-
26 CBM
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
ACE
-
Name:
-
iso tank container
-
Material:
-
Corten-A
-
Frame Material:
-
SPA-H,Q345D or equivalent
-
Materials:
-
316L/SAN50028-7/WNr 1.4402/1.4404
-
Design Temperature:
-
-40 to +130 centigrade
-
Certificate:
-
BV, LR
-
Approval:
-
IMDG, CFR49, ADR/RID, AAR 600, CSC, TC, TIR, ISO UIC, US/UK DOT
-
Design Code::
-
ASME VIII Div. 2
-
Certification:
-
CSC
Quick Details
-
Type:
-
Tank Container
-
Capacity:
-
26000L
-
External Dimensions(l x W x H)(mm):
-
6058 x 2438 x 2591mm
-
Internal Dimensions(l x W x H)(mm):
-
26 CBM
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
ACE
-
Name:
-
iso tank container
-
Material:
-
Corten-A
-
Frame Material:
-
SPA-H,Q345D or equivalent
-
Materials:
-
316L/SAN50028-7/WNr 1.4402/1.4404
-
Design Temperature:
-
-40 to +130 centigrade
-
Certificate:
-
BV, LR
-
Approval:
-
IMDG, CFR49, ADR/RID, AAR 600, CSC, TC, TIR, ISO UIC, US/UK DOT
-
Design Code::
-
ASME VIII Div. 2
-
Certification:
-
CSC
Low Cost
Convenient and fast
Safety and Eco-Friendly
|

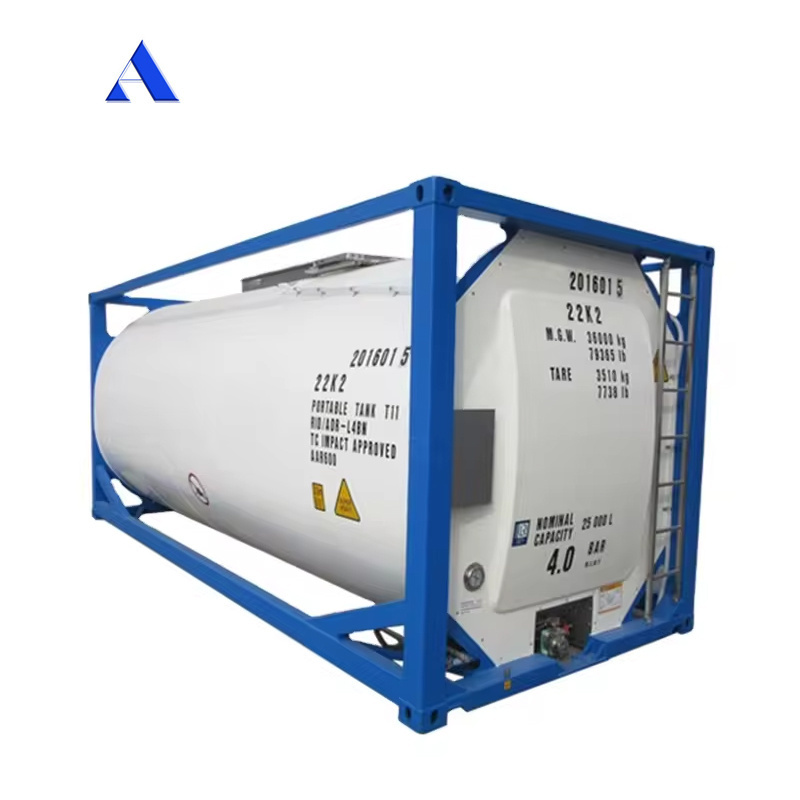

Specifications of 20ft Liquid ISO Tank Container:
|
|
|
||
|
Frame Dimensions (L x W x H)
|
|
6058 x 2438 x 2591 mm
|
||
|
Nominal Capacity
|
|
26000 litre (±0.75%)
|
||
|
Maximum Gross Mass
|
|
36000 kgs
|
||
|
Tare Mass
|
|
3510 kg (± 3%)
|
||
|
Design Temperature (Frame & Tank)
|
|
-40 to +130 °C
|
||
|
Pressure
|
Working
|
4.0 bar
|
||
|
|
Test
|
6.0 bar
|
||
|
Material
|
Tank (Shell & Ends)
|
SANS 50028-7 Type 1.4402/1.4404 (C≤0.03%)
|
||
|
|
Frame
|
SPA-H or equivalent
|
||
|
Insulation
|
Shell
|
Rockwool (50kg/m3) 50mm thick on aluminium foil.
|
||
|
|
Ends
|
Glasswool (16kg/m3) thickness to suit on aluminium foil.
|
||
|
|
6 runs.
110mm width stainless steel 304.
1” BSP inlet, 1” BSP outlet both with captive caps and cable.
4 bar working pressure, 6 bar test with warning decals and markings.
A condensate drain is fitted.
|
|
||
|
Manhole
|
500mm low profile, 8 point fixing with Super Tanktyt Lid seal.
|
|
||
|
Safety Relief Assembly
|
1-off.
2½” BSP Supermaxi Highflow relive, without flameproof gauze.
Pressure only set at +4.4 bar (63.8psi).
The assembly is situated off centre on a tangential tank pad.
|
|
||
|
Air Inlet assembly
|
DN 40 ball valve terminating with 1½” BSP connection and cap.
The assembly is situated off centre on a tangential tank pad.
|
|
||
|
Top Discharge
|
DN80 stainless steel 316 tank pad with a blind flange.
The assembly is fitted on centre on a horizontal tank pad.
|
|
||
|
Bottom Discharge
|
DN80 45° Univalve Internal Footvalve part no. TBC fitted with an integrated butterfly valve terminating with a 3” BSP spigot with 3” BSP blind cap and chain.
|
|
||
|
Thermometer
|
A surface mounted analogue type is fitted to the rear end dished end of the tank. Dual scale -40°C to +160°C / -40°F to 320°F. The thermometer is fitted with a protection bar.
|
|
||
|
Design Code
|
ASME VIII DIV. 1
|
|
||
|
Approval
|
IMDG US DOT CFR 49 RID/ADR CSC TC TIR / Customs UIC ISO 1496/3
|
|
||
Packing: There is no packaging requirement for 20ft T11 tank container.
Delivery: Within 45 days after we received your deposit.
Q:. Are your iso tank container is brand new?
Yes, our all containers are brand new.
Q: Can you provide the drawing for confirmation?
Sure, we'll provide the drawing after order confirmed before production.
Q: Do you have Small or Large Volume Tank Container?
Sure, we could do Tank Container form 1000L to 60000L.
And could produce offshore Tank as per DNV2.7-1 / EN12079 Standard.
Q: Do you provide OEM Service?
Yes, we have a first-class team and could design as per your requirement.
Q: Does your iso tank container meet with international requirement?
All of our iso tank container will be approval by BV //LR / CCS and meet ISO, UN, CSC ect. requirements.
