Quick Details
-
Lift Speed:
-
8m/min
-
Weight (KG):
-
100 kg
-
After-sales Service Provided:
-
Video technical support
-
Capacity:
-
0.5T -30T
-
Voltage:
-
220V/380V/440V
-
Color:
-
Customised
-
Standard Lifting Height:
-
6m/9m/12m/18m/24m/30m (Customize Available)
-
Type:
-
Moveable
-
Work Class:
-
M6
-
Product name:
-
Electric Wire Rope Hoist
-
Hook:
-
Heat Treatment
-
Packing:
-
Plywood Case
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
JD
-
Lift Speed:
-
8m/min
-
Weight (KG):
-
100 kg
-
After-sales Service Provided:
-
Video technical support
-
Capacity:
-
0.5T -30T
-
Voltage:
-
220V/380V/440V
-
Color:
-
Customised
-
Standard Lifting Height:
-
6m/9m/12m/18m/24m/30m (Customize Available)
-
Type:
-
Moveable
-
Work Class:
-
M6
-
Product name:
-
Electric Wire Rope Hoist
-
Hook:
-
Heat Treatment
-
Packing:
-
Plywood Case

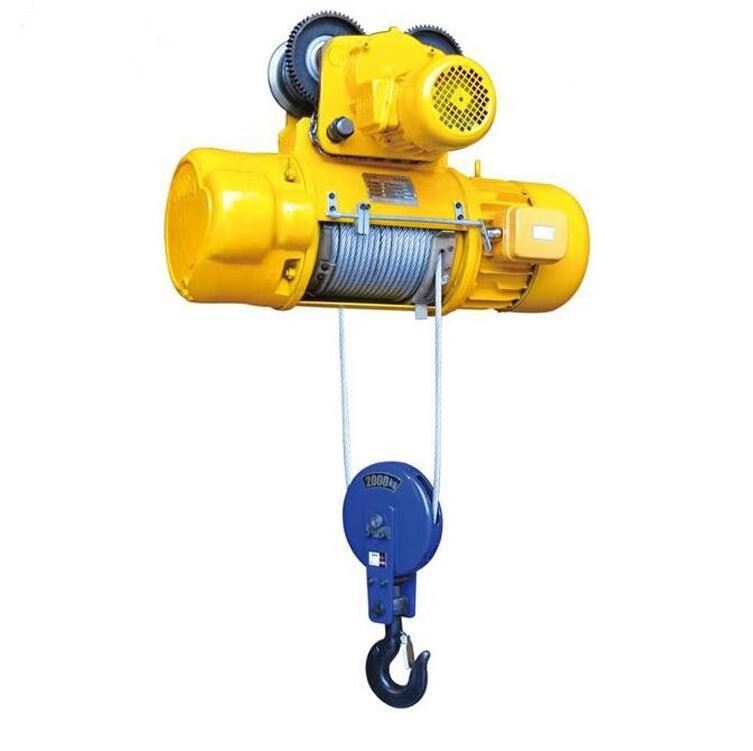

CD MD ELECTRIC ROPE HOIST
CAPACITY: From 0.5T to 30T
Lifting Height: From 6m to 50m
Voltage: 220V 380V 400V
| CD1 Electric Wire Rope Hoist | ||||||
| Lifting capacity | 0.5 ton | 1 ton | 2 ton | 3 ton | 5 ton | 10 ton |
| Lifting height | 6-12m | 6-30m | 6-30m | 6-30m | 6-30m | 9-30m |
| loop Track minimum Radius | 1.5m | 1.5-4m | 2-4m | 2-4m | 2.5-5m | 3.5-9m |
| Wire Rope Type | 6x37+NF | 6x37+NF | 6x37+NF | 6x37+NF | 6x37+NF | 6x37+NF |
| I beam track type | 16-28b | 16-28b | 20a-32c | 20a-32c | 25a-63c | 28a-63c |
| Voltage V | 380 | 380 | 380 | 380 | 380 | 380 |
| Frequency HZ | 50 | 50 | 50 | 50 | 50 | 50 |
| Phase | 3 | 3 | 3 | 3 | 3 | 3 |
Motor: Motors are equipped which has safety limiter in both up and down directions. And the motor is Conic rotor brake motor, in order to adapt to the frequent direct start in the intermittent work.
Reducers:
Its reducers with hard gear surface and adopt 3 level helical gears to slow down the speed, so it will have long life and high mechanical efficiency.
Main electric parts: adopts top quality and famous brand: Siemens brand.
Gear Box:
Hoist Gear Box has specially treated gears for high wear resistance. Each Geared Shaft assembly is supported on ball or roller bearings, to ensure smooth, low-friction operation.
Rope Guide:
Rope Guide is in two halves, ensuring easy accessibility. It encircles the Drum completely so that the rope may not uncoil even when the Hoist is in unloaded condition.
Hook:
The hook is closed type with high safety; it wrought with special high quality steel.
Rope drum:
It made of cast iron and seamless steel tube, its shell is welded with steel plate. The drum device is the central part of hoist.
Our factory could produce you some Spare Parts for every Hoist
