wall mounted 220v light automatic auto on off occupancy presence detecteur de mouvement switch pir motion sensor
wall mounted 220v light automatic auto on off occupancy presence detecteur de mouvement switch pir motion sensor
wall mounted 220v light automatic auto on off occupancy presence detecteur de mouvement switch pir motion sensor
wall mounted 220v light automatic auto on off occupancy presence detecteur de mouvement switch pir motion sensor
wall mounted 220v light automatic auto on off occupancy presence detecteur de mouvement switch pir motion sensor
wall mounted 220v light automatic auto on off occupancy presence detecteur de mouvement switch pir motion sensor
wall mounted 220v light automatic auto on off occupancy presence detecteur de mouvement switch pir motion sensor
wall mounted 220v light automatic auto on off occupancy presence detecteur de mouvement switch pir motion sensor

wall mounted 220v light automatic auto on off occupancy presence detecteur de mouvement switch pir motion sensor

FOB Reference Price: Get Latest Price
≥1 Pieces
US $9.8
≥100 Pieces
US $8.9
≥500 Pieces
US $8.5
≥1000 Pieces
US $7.9
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Mounting Type:
Wall mounted
Description:
PIR Motion sensor switch, pir motion sensor switch
Model Number:
RZ023-10A
Place of Origin:
Guangdong, China
Brand Name:
Rayzeek
Theory:
pir motion sensor switch
Output:
100-265V
Power Source:
100VAC~265VAC
Detection Range:
≤150°
Power Frequency:
50/60Hz
Ambient Light:
Default 25Lux, 15Lux, 35Lux, optional.
Working Humidity:
< 93%RH
Time-Delay:
Default 1min(15secs,1min,3mins,5mins,15mins,30mins adjustable)
Installation Height:
1.2m~1.6m
Rated Load:
Incandescent/: 2200W / 220VAC ; Fluorescent/LED: 1000W / 220VAC
Detection Motion Speed:
0.6-1.5m/s
Warranty:
3 Years

Quick Details

Use:
pir motion sensor switch
Series:
PIR Motion Sensor Switch
Features:
Motion Sensor Switch
Mounting Type:
Wall mounted
Description:
PIR Motion sensor switch, pir motion sensor switch
Model Number:
RZ023-10A
Place of Origin:
Guangdong, China
Brand Name:
Rayzeek
Theory:
pir motion sensor switch
Output:
100-265V
Power Source:
100VAC~265VAC
Detection Range:
≤150°
Power Frequency:
50/60Hz
Ambient Light:
Default 25Lux, 15Lux, 35Lux, optional.
Working Humidity:
< 93%RH
Time-Delay:
Default 1min(15secs,1min,3mins,5mins,15mins,30mins adjustable)
Installation Height:
1.2m~1.6m
Rated Load:
Incandescent/: 2200W / 220VAC ; Fluorescent/LED: 1000W / 220VAC
Detection Motion Speed:
0.6-1.5m/s
Warranty:
3 Years
Products Description
Description/ pir motion sensor

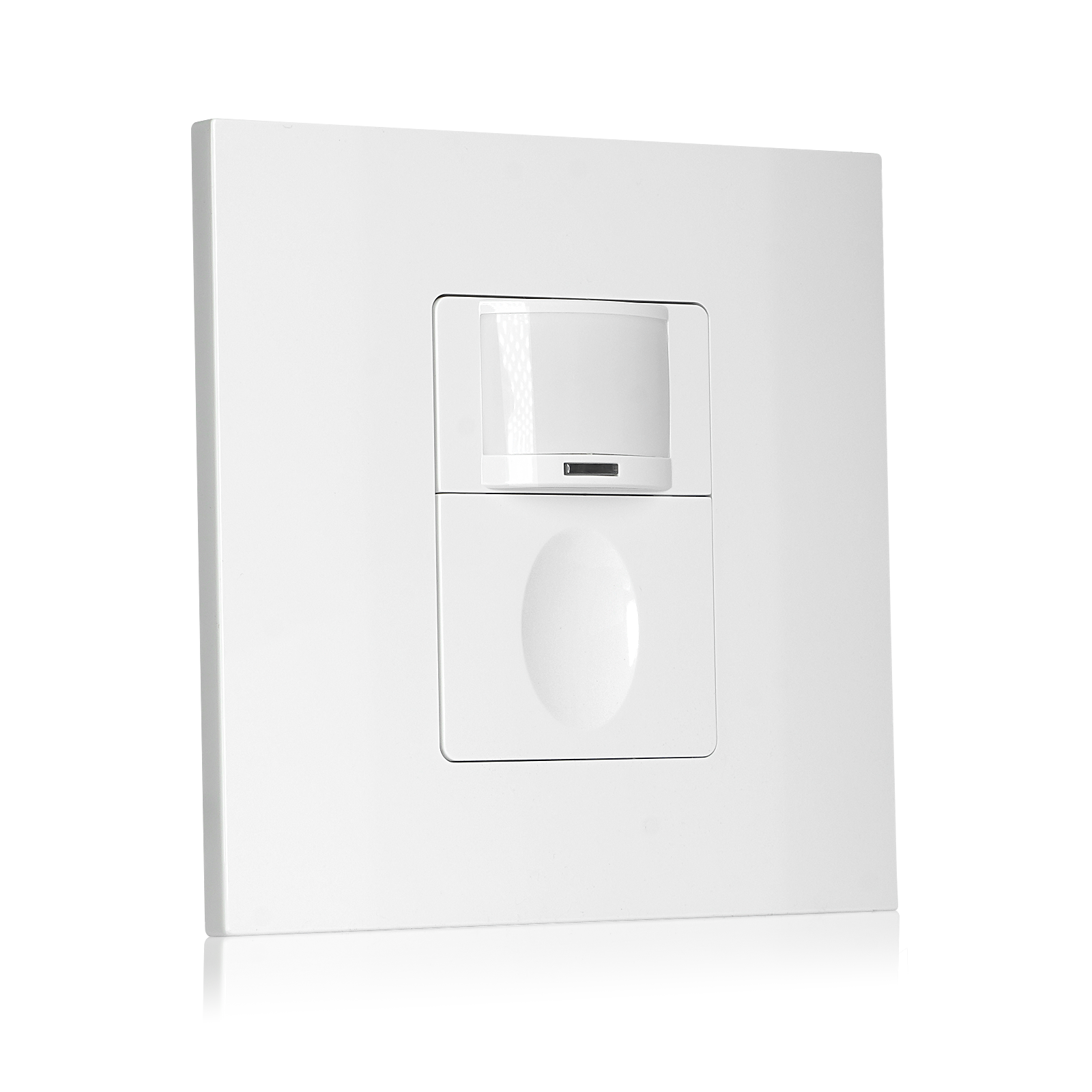

The RZ023-10A is an UK style 10A wall mounted occupancy sensor switch which uses advanced passive infrared sensor(PIR) and MCU
control. Compared to traditional motor sensor, it can automatically turn lights or fan on/off by detecting heat emitted from themotion, and have better stability and energy saving performance.

Function: Occupancy, vacancy, manual mode all-in-one
Main Spec: 100~265V, 10A, UK standard
Certification: FCC, RoHS certified

Motion Sensor Light Switch
It’s never too late to experience convenient, energy-saving, and hands-free motion-activated lighting. Easily save up to 60% of
energy and reduce your electricity bills with a simple upgrade to motion sensor light switches.

The versatile RZ021 motion sensor switch is applicable for every residential and commercial application with occupancy, vacancy,
and ON/OFF modes integrated for max compatibility, flexibility, and ease of use.




10 Minute Quick Installation
The RZ023-10A series is designed for the UK markets for single-pole applications. The 100V-265V voltage range works well in homes
and offices and the 10A current rating is capable of high load commercial grade applications.
RZ023-10A is a 3-wire switch and requires a neutral wire to work.

Features, Benefits, Specs

The ultimate energy-saving & lighting automation solution – switch from Auto ON/Auto OFF, Manal ON/Auto OFF, and Manal ON/Manual OFF operating mode for your multi-purpose room.

Features & Benefits
* Occupancy, Vacancy, Manual ON/OFF mode 3 in 1

* Exclusive ON/OFF mode allows the sensor switch to work the same as a standard light switch

* Time delay options: 15s, 1 min, 3 mins, 5 mins, 15 mins, 30 mins

* Enable ambient light sensor to keep lights off when there is ample natural light

* Low and high sensitivity adjustable

* Adjust settings by tapping buttons without removing the switch plate

* Magnetic latching relay provides better performance

* Made of fire-resistant materials for your safety

* RoHS, CE, FCC certified

Specification


Features
Sensor Mode
Vacancy mode, Occupancy mode, Manual ON/OFF mode
Time-Delay
15 s, 1 min(default), 3 mins, 5 mins, 15 mins, 30 mins
Light Sensor
Off, 15 Lux, 25 Lux (default), 35 Lux
Sensor Sensitivity
Low Sensitivity, High Sensitivity




Working Conditions
Power Source
100 VAC ~ 265 VAC
Power Frequency
50 / 60Hz
Installation Height
1.2 m ~ 1.6 m
Working Humidity
< 93%RH
Working
Temperature
-20 ~ +40℃


Detection Capability
Detection Distance
7 m ~ 10 m (<27℃)
Detection Range
< 150°
Detection Speed
0.6 ~ 1.5m/s


Bulb Compatibility
Fluorescent / Ballast / LED

1000 W / 220 VAC


Incandescent / Halogen
2200 W / 220 VAC
The Ideal Repalcement

The RZ023 motion sensor switch is ideal for replacing wall switches in the UK area and countries utilizing the British standard 86 type square wall switch boxes. The 100V- 265V wide voltage range makes RZ023 applicable to all regions using 220V to 240V AC voltages.




RZ023-10A
* 10A Load: Ideal for high load applications, i,e, controlling multiple lights or HVAC

* 3-Wire Wiring: Hot Wire, Load Wire, Neutral Wire



UK Standard Switch
RZ023 motion sensor switch is designed for the UK market and fits in the standard 86 type pattress boxes. Also suitable for countries using British standard back boxes:

* United Arab Emirates
* United Kingdom
* Hong Kong
* Ireland Israel
* Malaysia
* Portugal
* Saudi Arabia
* Singapore
* Turkey

Bester, more than Best. Smart sensor, l ight up your life!
