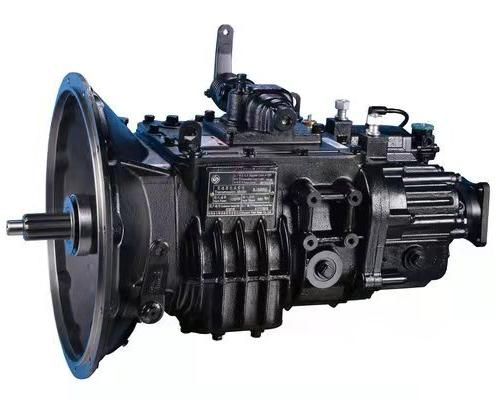

Wholesale hot sale second-hand car truck FAST Gearboxes

Gearbox Parameters

Gearbox model

8JS95TE-C

8JS118A

8JS75T

Brand

FAST

FAST

FAST

Gearbox series

8-speed

8-speed

8-speed

Number of gears

8

8

8

Features

1. Double intermediate shaft structure of main and auxiliary box, power distribution, high reliability;
2. Small center distance, small size and light weight;
3. The main shaft and gear are installed floating, and there is no needle bearing between the gear and the shaft, so the
transmission efficiency is high;
4. The gear adopts a full "fine and high-tooth" design, smooth meshing and low noise;
5. Full synchronizer design, the main and auxiliary boxes adopt lock-ring type double-cone synchronizer, with large
synchronization capacity, flexible and light gear shifting;
6. Combination design of main and auxiliary tanks, with small speed ratio difference and good fuel economy;
7. Various forms of power take-off can meet the power output requirements of various modifications of the vehicle

Number of reverse gears

2

1

2

Shifting method

Manual

Manual

Manual

MAX Input torque

950N.m

1000-1180N.m

750N.m

Gear ratio

10.36

9.32

8.12

2nd gear ratio

6.3

6.09

6.08

3rd gear ratio

4.32

4.06

4.47

4th gear ratio

3.43

3.1

3.31

5th gear ratio

2.41

2.3

2.46

6th gear ratio

1.46

1.5

1.84

7th gear ratio

1

1

1.35

8th gear ratio

0.79

0.76

1

Reverse gear 1 transmission ratio

10.53

9.28

8.12

Reverse gear 2 transmission ratio

2.44

2.46

Gearbox weight

190kg

260kg

147kg

Transmission oil capacity

6L

13L

6L

Manipulation form

Double H control device, single, double lever control, left and right control or two-way control

single H, double H, single lever control, double lever control
