Quick Details
-
Brand Name:
-
SUNBRIGHT
-
Model Number:
-
SUN-200Y
-
Type:
-
Electronic Vagina Video Colposcope
-
Printer:
-
SONY UP-897MD thermal Printer
-
Camera:
-
80,0000 pixel
-
Lens axial resolution:
-
480 lines
-
Lens S/N:
-
50dB
-
Lens min illumination:
-
0.15Lux
-
Lens white balance:
-
AWB
-
Lens lighter type:
-
LED ring
-
Power Rating:
-
500W
-
Brightness adjustment:
-
Automatic electronic shutter
Quick Details
-
Warranty:
-
Lifetime
-
After-sale Service:
-
Return and Replacement
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SUNBRIGHT
-
Model Number:
-
SUN-200Y
-
Type:
-
Electronic Vagina Video Colposcope
-
Printer:
-
SONY UP-897MD thermal Printer
-
Camera:
-
80,0000 pixel
-
Lens axial resolution:
-
480 lines
-
Lens S/N:
-
50dB
-
Lens min illumination:
-
0.15Lux
-
Lens white balance:
-
AWB
-
Lens lighter type:
-
LED ring
-
Power Rating:
-
500W
-
Brightness adjustment:
-
Automatic electronic shutter
Products Description

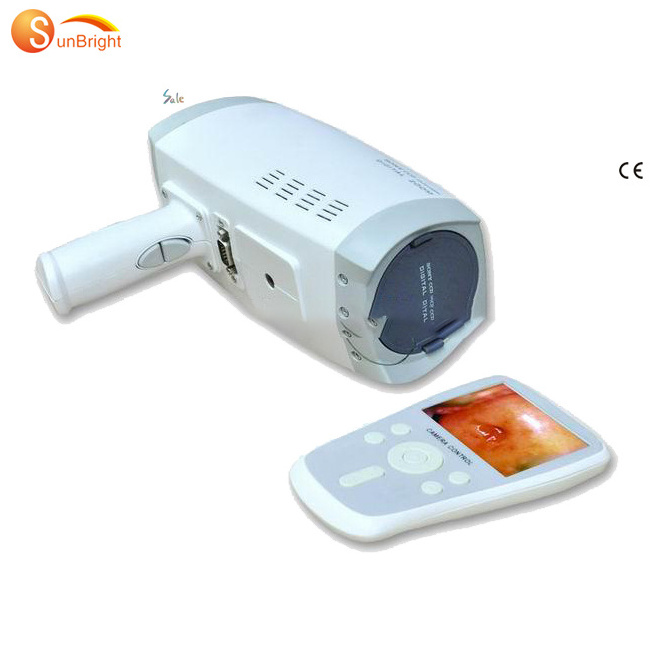

Digital Electronic Vagina Video Colposcope camera for Gynaecology scanning machine
Recommend Products
Features:
• The direct-to-screen colposcope gives you full-screen, high-resolution images with no couplers or beam splitters to degrade image quality or field of view.
• The direct-to-screen colposcope gives you full-screen, high-resolution images with no couplers or beam splitters to degrade image quality or field of view.
• Connect with monitor directly , such as TV monitor , PC monitor.
• No need to be connected with laptop and desk computer , no need software.
• Control camera easy to capture image.
• Lighting generates 50% whiter, brighter light for true tissue color.
• Push button on-screen magnification index.
• Unique polarization filter removes glare for accurate tissue assessment.
• Electronic green filter removes red from image with no light loss.
Detailed Images
Standard configuration:
• Colposcope
•
Camera control screen
Application:
• Offer more complete care with true video colposcope combining light, power and video for high-resolution imaging, superior diagnostics and information management.
• Capture and store high quality images of the cervix, vagina and vulva for all women health applications and cervical cancer screening.
Specifications
• Lens resolution: 1/4"super HAD color CCD,80,0000 pixel;
• Lens axial resolution: 480 lines;
• Lens S/N: 50DB;
• Lens focus distance: standard 100~400mm; support: 10~1000mm;
• Field of View: 2.5mm-20mm-320mm
• Depth of Field: 15mm-40mm 15mm-480mm
• Lens min illumination : 0.15Lux
• Lens zoom: 1~128
• Lens image output interface: Video, S-video, PAL;
• Lens fouse: AF/MF;
• Lens white balance: AWB;
• Lens lighter type : LED ring , phosphorus gallium arsenide high brightness , longevity light source group (average life 100,000 hours)
• Lens video-output: PAL, VBS-standard 1.0Vp-p;
• Power Requirements: AC220V ±10%
• Power Rating : 500W
• Brightness adjustment: Automatic electronic shutter
• Ambient temperature: -40°C to +50°C
• Storage temperature : -20°C to +60°C
|
Optional
|
|
|
|
|
||||
|
Monitor
|
|
|
|
|
||||
|
SONY UP-897MD thermal Printer
|
|
|
|
|
||||
|
Trolley
|
|
|
|
|
||||
|
Software
|
|
|
|
|
||||
