Quick Details
-
Model Number:
-
RV10.20.1.0.0.0.0.
-
Brand Name:
-
WAM
Quick Details
-
Port Size:
-
250mm
-
Warranty:
-
1 year
-
Place of Origin:
-
Shandong, China
-
Model Number:
-
RV10.20.1.0.0.0.0.
-
Brand Name:
-
WAM
Product Description

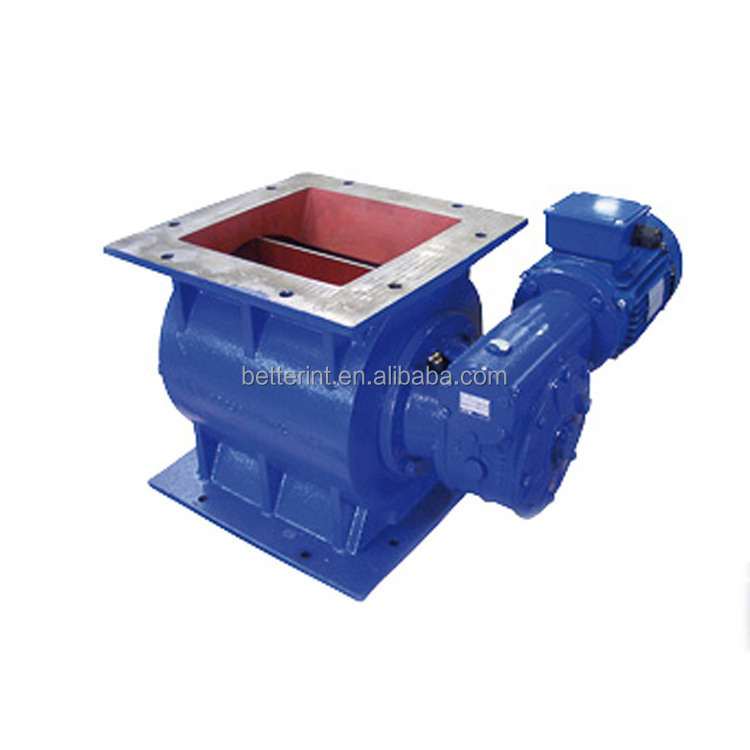

RV Drop-Through Cast Iron Rotary Valves with Square Inlet
RV Drop-Through Rotary Valves with square and RVR with circular inlet consist of a tubular cast iron or stainless steel casing, a horizontally mounted rotor with a certain number of V-shaped cross section compartments, a drive unit and a casing cover opposite the drive end.
Function
RV/RVR Rotary Valves are designed for maximum versatility in application. They are suitable for controlled discharging and feeding of powdery or granular materials from silos, hoppers, pneumatic conveying systems, bag filter houses, or cyclones.
Features
Feed rates: 2.2 ~ 19.5 litres per revolution (0.08 ~ 0.7 cu ft per revolution)
Working Temperature: -30 ~ 150 °C (-22 ~ 302 °F)
Different drives for different rotation speeds
Various materials and treatments available depending on material handled
Maximum differential pressure: 0.2 bar (2.9 PSI)
Benefits
Compatible with other WAMGROUP equipment thanks to WAM standard flanges
Robust, compact design
Easy access to all internal mechanical components
Specification
|
Model
|
Body Material
|
|
RV02
|
Cast Iron or 304/316 Stainless steel
|
|
RV05
|
|
|
RV10
|
|
|
RV20
|
|
Packing & Delivery
wooden case
Application
RV/RVR Rotary Valves are the ideal solution for controlled discharging and feeding of powdery or granular materials from silos, hoppers, pneumatic conveying systems, bag filter houses, or cyclones.
