Quick Details
-
Brand Name:
-
SENTEC
-
Model Number:
-
SFLS300
-
Product Name:
-
float level switch
-
Medium temperature:
-
-20~200°C
-
Range:
-
500 ~ 6000mm (customized)
-
Installation:
-
top loading, side mounting
-
Medium pressure:
-
1MPa
-
Installation method:
-
horizontal / vertical
-
Medium density:
-
≤25kgf/cm2, ≤5kgf/cm2
-
Wetted material:
-
SUS304, SUS316, PP
-
keywords:
-
Water Tank Float Switch
-
Application:
-
Tank water, Petrochemical
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
1 YEAR
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
SENTEC
-
Model Number:
-
SFLS300
-
Product Name:
-
float level switch
-
Medium temperature:
-
-20~200°C
-
Range:
-
500 ~ 6000mm (customized)
-
Installation:
-
top loading, side mounting
-
Medium pressure:
-
1MPa
-
Installation method:
-
horizontal / vertical
-
Medium density:
-
≤25kgf/cm2, ≤5kgf/cm2
-
Wetted material:
-
SUS304, SUS316, PP
-
keywords:
-
Water Tank Float Switch
-
Application:
-
Tank water, Petrochemical
OVERVIEW

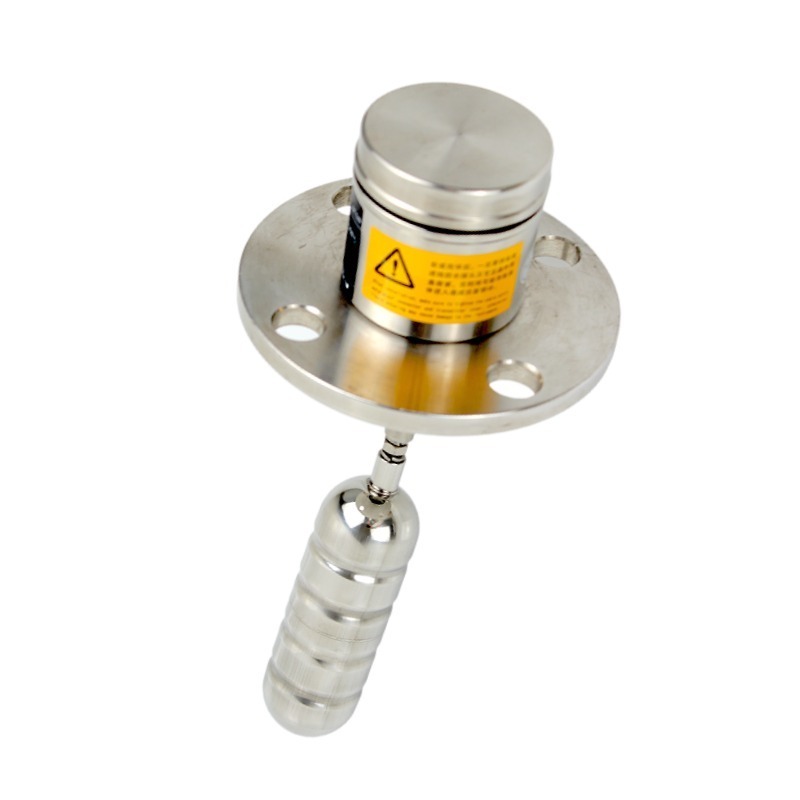

SFLS300 series side mounted floating ball liquid level switch is based on the liquid buoyancy principle. When the floating ball moves up and down due to the buoyancy, the magnetic spring switch in the junction box is affected by the arm end magnet, and the "no" and "NC" contacts are exchanged. The same principle is applied to the microswitch device. The magnet in front of the microswitch and the magnet at the arm end push the microswitch, resulting in "no" and "NC" actions.
|
Parameters---Float Ball Level Switch
|
|
|
|
|||
|
Control region
|
8mm
|
25-550mm
|
8-1000mm
|
|||
|
agent gravity
|
≥0.8g/cm
|
≥0.8g/cm
|
≥0.8g/cm
|
|||
|
Adjustment
|
non adjustment
|
adjustment
|
non adjustment
|
|||
|
temprature
|
-40~+80°C
|
-40~+80°C
|
-40~+80°C
|
|||
|
environment temperature
|
-20~+80°C
|
-20~+80°C
|
-20~+80°C
|
|||
|
working pressure
|
≤1.0MPa
|
≤1.0MPa
|
≤1.0MPa
|
|||
|
precision
|
±20mm
|
±20mm
|
±20mm
|
|||
|
contactor capacity
|
220/380V AC 1A
|
220/380V AC 1A
|
220/380V AC 1A
|
|||
|
agent viscoity
|
≤0.02Pa.s
|
≤0.02Pa.s
|
≤0.02Pa.s
|
|||
|
top and bottom blind zone
|
100mm
|
100mm
|
100mm
|
|||
|
Material
|
stainless steel mateiral
|
stainless steel mateiral
|
stainless steel mateiral
|
|||
|
connection
|
flange connection
|
flange connection
|
flange connection
|
|||
|
Installation
|
side mounted
|
side mounted
|
top mounted
|
|||
Recommend Products
Packaging&Shipping
Q:What kind of products do you offer ?
A:SenTec supply pressure sensors, level sensors, temperature sensors , fiow sensors and environment sensors. Export more than 70+countries.
Q:Could I get samples?
A:Yes,we have half-stock ready products for customized sample.
Q:How about the quality of the magnets?
A:We have the certification of ISO, Europe standard ATEX, CE and ROSH ect.
Q:What is the delivery time?
A:For standard specification,delivery time 5-7 days; For customized specification 10-20days.
Q: What is your terms of payment ?
A: We could accept T/T, Paypal, WU ,Trade Assurance.
Q: What is the warranty for your product ?
A: Warranty: 12-24 Month, Lifetime maintenance
Q: How to contact you?
A: Email: sales01(@)cdsentec.com, Tel/wechat/whatsapp: +86 18848456685
A: Email: sales01(@)cdsentec.com, Tel/wechat/whatsapp: +86 18848456685
The specific price is subject to the parameters, please contact us for the quotation
