Quick Details
-
Model Number:
-
KN-402/403
-
Mechanical Life:
-
10000time
-
Color:
-
brown
-
Pin Quantity:
-
12
-
Function:
-
ON-OFF-ON,ON-ON
-
Mounting hole:
-
12mm
-
Contact Resistance:
-
50mΩ Max
-
Insulation resistance:
-
500VDC 100020mΩ Min
-
Withstand Voltage:
-
1000VAC 1minute
-
Operation temperature:
-
-25~+85°c
-
Electrical Life:
-
10'000 Cycles
-
Pack:
-
5pc/box
Quick Details
-
Max. Voltage:
-
15A 250VAC
-
Place of Origin:
-
China
-
Brand Name:
-
Binrong
-
Model Number:
-
KN-402/403
-
Mechanical Life:
-
10000time
-
Color:
-
brown
-
Pin Quantity:
-
12
-
Function:
-
ON-OFF-ON,ON-ON
-
Mounting hole:
-
12mm
-
Contact Resistance:
-
50mΩ Max
-
Insulation resistance:
-
500VDC 100020mΩ Min
-
Withstand Voltage:
-
1000VAC 1minute
-
Operation temperature:
-
-25~+85°c
-
Electrical Life:
-
10'000 Cycles
-
Pack:
-
5pc/box

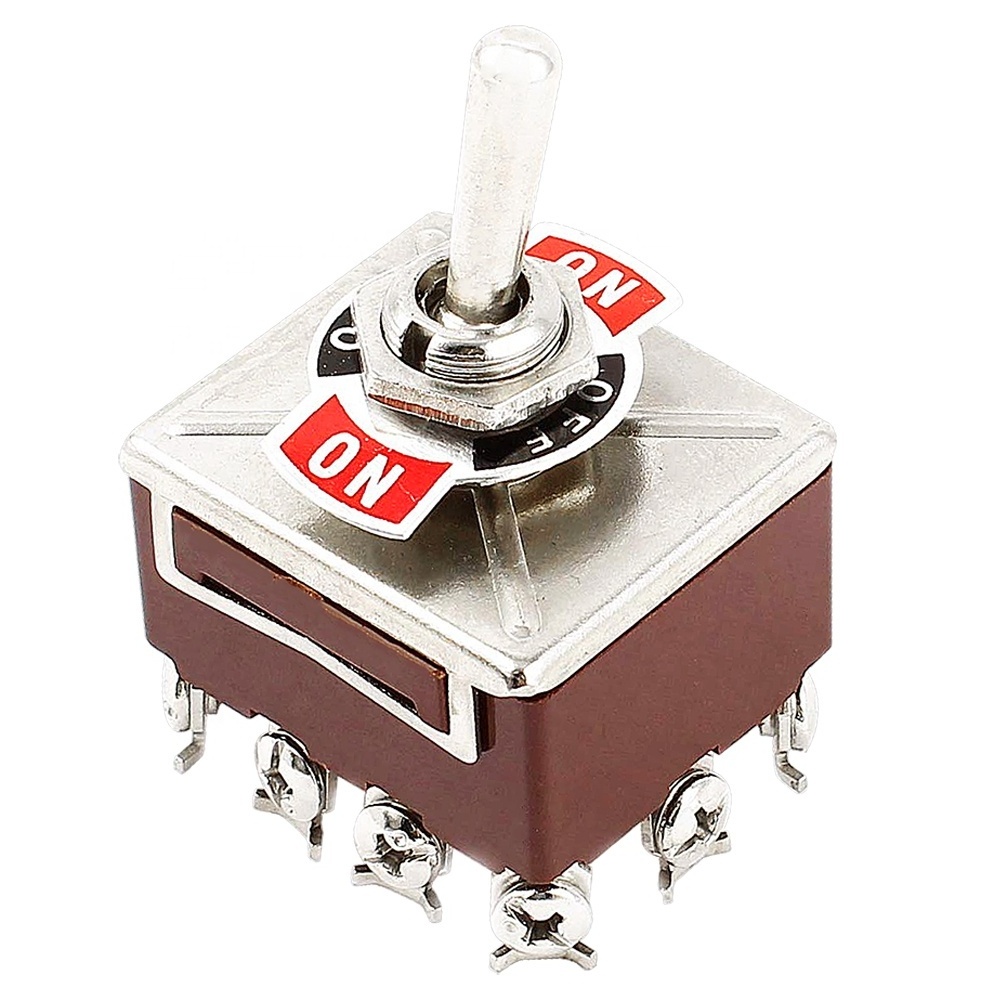

4PDT heavy duty toggle switch changeover power switch
15A 125VAC
10A 250VAC
KN-402 ON-ON
KN-403 ON-OFF-ON
12mm mounting hole
| Model No | Pin Quantity | Pin Type | Function | E-TEN Model No |
| KN3C-101 | 2 | Screw terminal | ON-OFF | 1021 |
| KN3C-111 | 2 | Screw Terminal | OFF-(ON) Momentary | |
| KN3C-101P | 2 | Spade Terminal | ON-OFF | |
| KN3C-102 | 3 | Screw Terminal | ON-ON | |
| KN3C-112 | 3 | Screw Terminal | ON-(ON) Momentary | |
| KN3C-103 | 3 | Screw Terminal | ON-OFF-ON | |
| KN3C-113 | 3 | Screw Terminal | ON-OFF-(ON) Momentary | |
| KN3C-123 | 3 | Screw Terminal | (ON)-OFF-(ON) Momentary | |
| KN3C-201 | 4 | Screw Terminal | ON-OFF | |
| KN3C-211 | 4 | Screw Terminal | (OFF)-ON momentary | |
| KN3C-202 | 6 | Screw Terminal | ON-ON | |
| KN3C-212 | 6 | Screw Terminal | ON-(ON) Momentary | |
| KN3C-213 | 6 | Screw Terminal | ON-OFF-(ON) Momentary | |
| KN3C-223 | 6 | Screw Terminal | (ON)-OFF-(ON) Momentary | |
| KN3C-223P | 6 | Spade Terminal | (ON)-OFF-(ON) Momentary | |
| KN3C-101M | 2 | Screw Terminal | ON-OFF | |
| KN3C-101MP | 2 | Spade Terminal | ON-OFF | |
| KN-402 | 12 | Screw Terminal | ON-ON | |
| KN-403 | 12 | Screw Terminal | ON-OFF-ON |
