Quick Details
-
Model Number:
-
3A210-08
-
Brand Name:
-
ONNT
-
Product Name:
-
3A210-08 Air Control Valve
-
Port size:
-
1/4''
-
Valve type:
-
2 port 3 position
-
Fluid:
-
Airv
-
Operating Pressure:
-
0.15~0.8MPa
-
Acting type:
-
Internal pilot or external pilot
-
Temperature:
-
-20~70℃
-
Material of body:
-
Aluminum alloy
-
Lubrication:
-
Non Required
-
Type:
-
Pneumatic Valve
Quick Details
-
Port Size:
-
G1/4
-
Warranty:
-
1 years
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
3A210-08
-
Brand Name:
-
ONNT
-
Product Name:
-
3A210-08 Air Control Valve
-
Port size:
-
1/4''
-
Valve type:
-
2 port 3 position
-
Fluid:
-
Airv
-
Operating Pressure:
-
0.15~0.8MPa
-
Acting type:
-
Internal pilot or external pilot
-
Temperature:
-
-20~70℃
-
Material of body:
-
Aluminum alloy
-
Lubrication:
-
Non Required
-
Type:
-
Pneumatic Valve

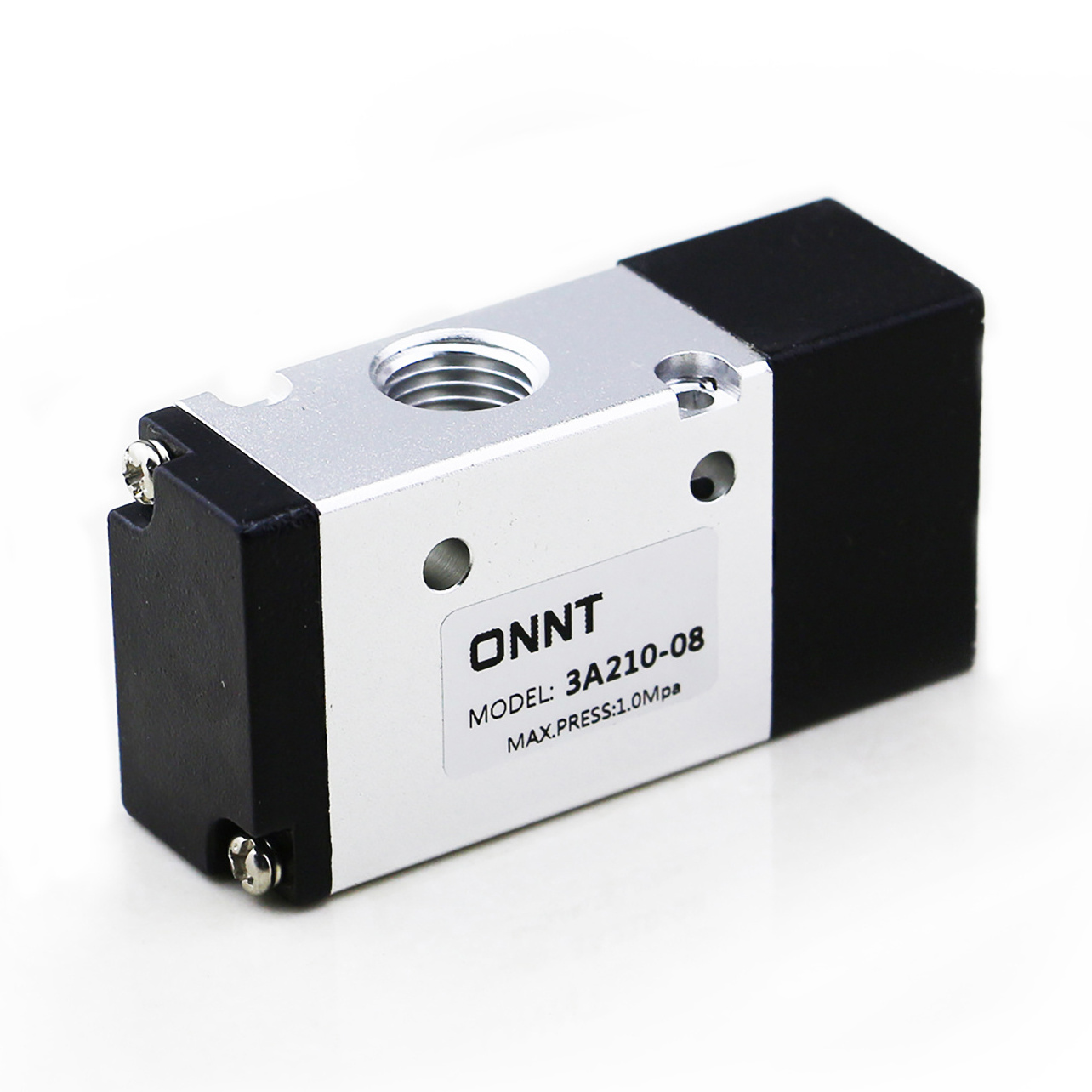

2 port 3 position 3A210-08 1/4" BSP Pneumatic Control Air Valve
Ordering Code:
Inner structure and material of major parts
|
NO
|
Item
|
NO
|
Item
|
NO
|
Item
|
|
1
|
Bottom cover gasket
|
5
|
Spool
|
9
|
Piston
|
|
2
|
Spring
|
6
|
Body
|
10
|
Pilot body
|
|
3
|
Bottom cover
|
7
|
O-ring
|
11
|
Piston O-ring
|
|
4
|
Bottom cover screw
|
8
|
Wear ring
|
12
|
Piston screw
|
Specifications
|
Model
|
3A210-06
|
3A220-06
|
3A210-08
|
3A220-08
|
|||
|
Fluid
|
Air( to be filtered bu 40 µ m filter element)
|
|
|
|
|||
|
Acting
|
Exterior control
|
|
|
|
|||
|
Port size
|
In=Out=1/8''
|
|
In=Out=1/4''
|
|
|||
|
Orifice size
|
14.0mm²
(C=0.78)
|
|
16.0mm²
(Cv=0.89)
|
|
|||
|
Valve
|
3 port 2 position
|
|
|
|
|||
|
Operating pressure
|
0.15MPa~0.8MPa(21~114psi)
|
|
|
|
|||
|
|
1.2MPa(175psi)
|
|
|
|
|||
|
Temperature °C
|
-20~70℃
|
|
|
|
|||
|
Material of body
|
Aluminum Alloy
|
|
|
|
|||
|
Lubrication
|
Not required
|
|
|
|
|||
More products:
Details Images:
Other pneumatic part for you to choose
Main Products:
Why Choose Us:
FAQ:
Q: What is your MOQ?
A: 5pcs for MOQ.
Q: What is your packing?
A: Each Cylinder by one box packing.
Q: How to choose cylinder?
A: Please contact us, we are always online!
Q: What is your quality?
A: Sample will tell you what you want.
Q: What is your warranty?
A: One year under normally used.
Q: Can you do OEM?
A: Yes, we can.
A: 5pcs for MOQ.
Q: What is your packing?
A: Each Cylinder by one box packing.
Q: How to choose cylinder?
A: Please contact us, we are always online!
Q: What is your quality?
A: Sample will tell you what you want.
Q: What is your warranty?
A: One year under normally used.
Q: Can you do OEM?
A: Yes, we can.
