Quick Details
-
Brand Name:
-
REACH
-
Model Number:
-
RH-980
-
Warranty:
-
12 Months
-
Max.wheel weight:
-
2000kg
-
Max.wheel width:
-
1200mm
-
Rim diameter:
-
14" - 46"
-
G.W.:
-
1410kg
-
Power:
-
220V/400V/50/60HZ/1P/3P optional
-
Outside dimension:
-
1830mm*1480mm*1080mm
Quick Details
-
Motor Power:
-
3.3/4.0Kw
-
Power Supply:
-
220V/400V/ 50/60HZ/ 1P/3P
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
REACH
-
Model Number:
-
RH-980
-
Warranty:
-
12 Months
-
Max.wheel weight:
-
2000kg
-
Max.wheel width:
-
1200mm
-
Rim diameter:
-
14" - 46"
-
G.W.:
-
1410kg
-
Power:
-
220V/400V/50/60HZ/1P/3P optional
-
Outside dimension:
-
1830mm*1480mm*1080mm
Product Description

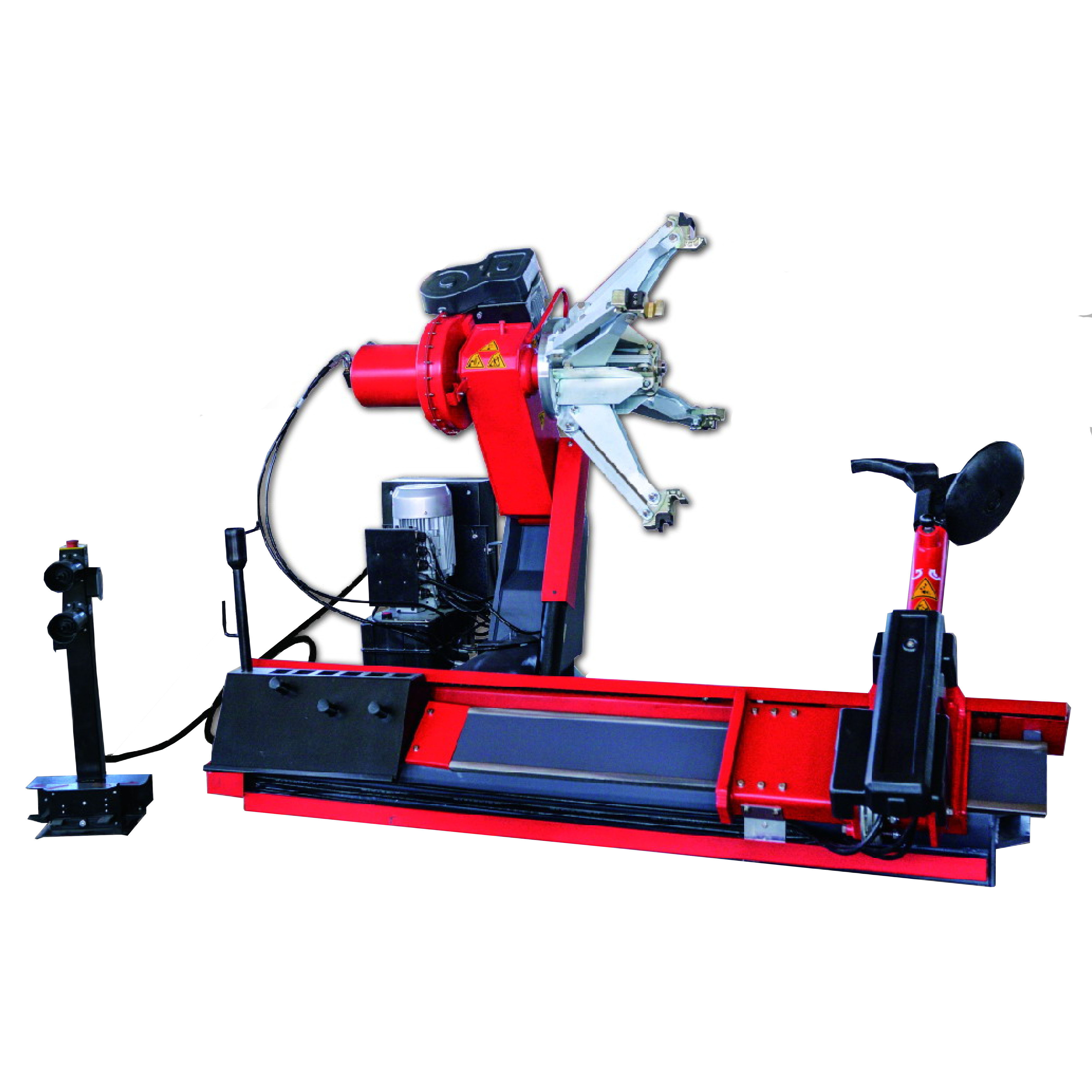

Model : RH-980
Features
1. RH-980 SUPER TRUCK TYRE CHANGER HAS BEEN SPECIFICALLY
DESIGNED TO MOUNT AND DEMOUNT TYRES FROM TRUCKS,
BUSES,TRACTORS AND EARTHMOVING VEHICLES
2. RIM CAPACITY 14”-56”
3. BI-DIRECTIONAL CHUCK WITH 2 ROTATIONAL SPEEDS
4. ITALIAN PUMP OPTIONAL
Specification
| Operation control voltage: |
24V |
|
Power supply : |
220V/380V/400V 50/60Hz 1P/3P Optional |
|
Rim capacity(with extensions) |
14"-56" |
|
Rim diameter: |
14"-46" |
|
Max.wheel weight : |
2000kg |
| Max.wheel width: |
1200mm |
|
Max.tyre diameter: |
2500mm |
|
Hydraulic pump motor: |
3.3/4.0kw |
|
Gearbox motor: |
3.3/4.0Kw |
|
Machine weight approx: |
1175kg |
|
Outside dimension : |
1830mm*1480mm*1080mm |
Details Description
Standard Accessories
Optional Accessories
Packing Size
